EIA Low ESR Microwave Capacitors
0603N (.060" x .030")
ZADF
0603N (.060" x .030")
0603N Capacitance & Rated Voltage Table
Cap.
pF
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
Code
0R1
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
A,B,
C,D
250V
Code
251
Tol.
Rated
WVDC
Cap.
pF
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
Code
2R2
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
F,G,
J,K
B,C,
J,K
250V
Code
251
A,B,
C,D
Tol.
Rated
WVDC
Cap.
pF
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
Code
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
F,G,
J,K
250V
Code
251
Tol.
Rated
WVDC
Remark: special capacitance, tolerance and WVDC are available, consult with PASSIVE PLUS.
www.passiveplus.com
(631) 425-0938
sales@passsiveplus.com
EIA Low ESR Microwave Capacitors
0603N (.060” x .030”)
Part Numbering
0603N
Series
Rated Capacitance *
(See capacitance table)
Rated Voltage
Capacitance Tolerance
(See capacitance table)
*
When capacitance is less than 1.0, use “R” for decimal
Capacitance Tolerance
Code
Tol.
A
±0.05pF
B
±0.1pF
C
±0.25pF
D
±0.5pF
F
±1%
G
±2%
J
±5%
K
±10%
101
J
W
251
T
Packaging Type
T:Tapecarrierpackaging500
pcs or 4000pcs/reel
Termination Type
Nickel,Plated 100%Sn(RoHS)
Note:Laser marking is
available on request.
0603N Chip Dimensions
Capacitor Dimensions
Series
Term.
Code
Type/Outlines
Length
Lc
Width
Wc
unit: inch (millimeter)
Plated
Material
Thickness
Tc
.030
±.005
~ -.003
(0.76
+0.13 ~ -0.08)
0603N
W
Chip
.060±.006
(1.52±0.15)
.030±.006
(0.81±0.15)
Sn/Ni
(RoHS)
Remark: for Non-Magnetic NP0 products please refer to page 67.
Design Kits
These capacitors are 100% RoHS. Kits are available in Magnetic and Non-Magnetic that contain 10 (ten) pieces per
value; number of values per kit varies, depending on case size and capacitance.
Kit
DKD0603N01
Description
0603N .1pF - 2.0pF
Values
0.1, 0.2, 0.3, 0.5, 0.7, 0.8, 0.9, 1.0, 1.3, 1.5, 1.7, 1.9, 2.0pF
1.0, 1.3, 1.5, 1.7, 1.9, 2.0, 2.2, 2.7, 3.0, 3.9, 4.7, 5.6, 6.8, 7.5, 8.2pF,
DKD0603N02
0603N 1.0pF - 10pF
10pF
DKD0603N03
0603N 10 - 100pF
10, 13, 15, 18, 20, 22, 27, 30, 39, 47, 56, 68, 75, 82, 91, 100pF
+/-5%
+/-5%
Tolerance
+/-.1pF
+/.1pF
www.passiveplus.com
(631) 425-0938
sales@passsiveplus.com
EIA Low ESR Microwave Capacitors
Performance
Item
Quality Factor (Q)
Insulation Resistance (IR)
Rated Voltage
Dielectric Withstanding Voltage (DWV)
Operating Temperature Range
Temperature coefficient (TC)
Capacitance Drift
Piezoelectric Effects
2,000 min.
Specifications
0603N (.060” x .030”)
10
5
Megohms min. @ +25
℃
at rated WVDC.
10
4
Megohms min. @ +125
℃
at rated WVDC.
250V
250% of rated Voltage for 5 seconds.
-55℃ to +125℃
0±30ppm/℃
±0.02%
or
±0.02pF,
whichever is greater.
None
Environmental Tests
Item
Terminal
Adhesion
Resistance
To soldering
heat
Specifications
Termination should not pull off.
Ceramic should remain undamaged.
No mechanical damage
Capacitance change: -1.0% ~+2.0%
Q>500
I.R. >10 G Ohms
Breakdown voltage: 2.5 x WVDC
No mechanical damage
Capacitance change:
±0.5%
or 0.5pF max
Q>2000
I.R. >10 G Ohms
Breakdown voltage: 2.5 x WVDC
No mechanical damage
Capacitance change:
±0.5%
or 0.5pF max.
Q>300
I.R. >1 G Ohms
Breakdown voltage: 2.5 x WVDC
No mechanical damage
Capacitance change:
±0.3%
or 0.3pF max.
Q>300
I.R. >1 G Ohms
Breakdown voltage: 2.5 x WVDC
No mechanical damage
Capacitance change:
±2.0%
or 0.5pF max.
Q>500
I.R. >1 G Ohms
Breakdown voltage: 2.5 x WVDC
Method
Linear pull force exerted on axial leads soldered to
each terminal. 2.0lbs.
Preheat device to 150°C-180°C for 60 sec.
Dip in 260
℃±5 ℃solder
for 10±1 sec.
Measure after 24±2 hour cooling period.
MIL-STD-202, Method 107, Condition A.
At the maximum rated temperature(-55°Cand125°C)
stay 30 minutes.
The time of removing shall not be more than 3 minutes.
Perform the five cycles.
Thermal
Shock
Humidity,
Steady
State
MIL-STD-202, Method 106.
Low Voltage
Humidity
MIL-STD-202, Method 103, Condition A, with 1.5 Volts
D.C. applied while subjected to an environment of 85°C
with 85% relative humidity for 240 hours minimum.
Life
MIL-STD-202, Method 108, for 1000 hours, at 125°C.
200% Rated voltage D.C. applied.
www.passiveplus.com
(631) 425-0938
sales@passsiveplus.com
EIA Low ESR Microwave Capacitors
0603N (.060” x .030”)
0603N Electrical Performance

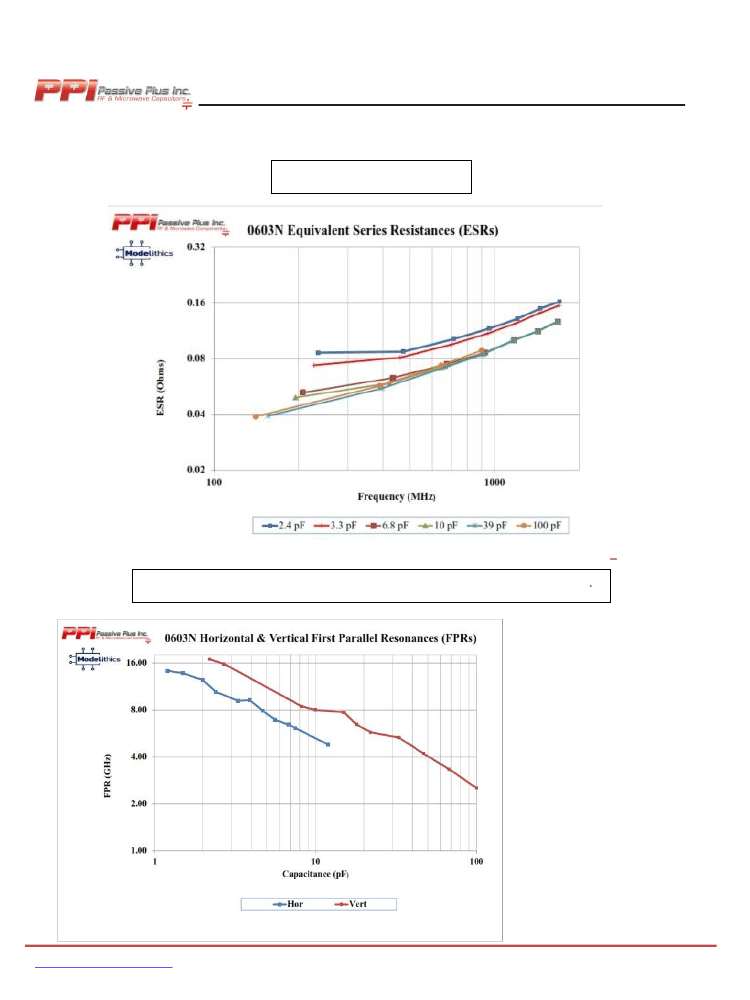

ESR vs. Frequency
First Parallel Resonant Frequency vs. Capacitance
The First Parallel Resonance,
FPR, is defined as the lowest
frequency at which a suckout
or notch appears in |S21|. It
is generally independent of
substrate
thickness
or
dielectric constant, but does
depend
on
capacitor
orientation.
A horizontal
orientation
means
the
capacitor electrode planes
are parallel to the plane of
the substrate; a vertical
orientation
means
the
electrode
planes
are
perpendicular
to
the
substrate.
www.passiveplus.com
(631) 425-0938
sales@passsiveplus.com
EIA Low ESR Microwave Capacitors
0603N (.060” x .030”)

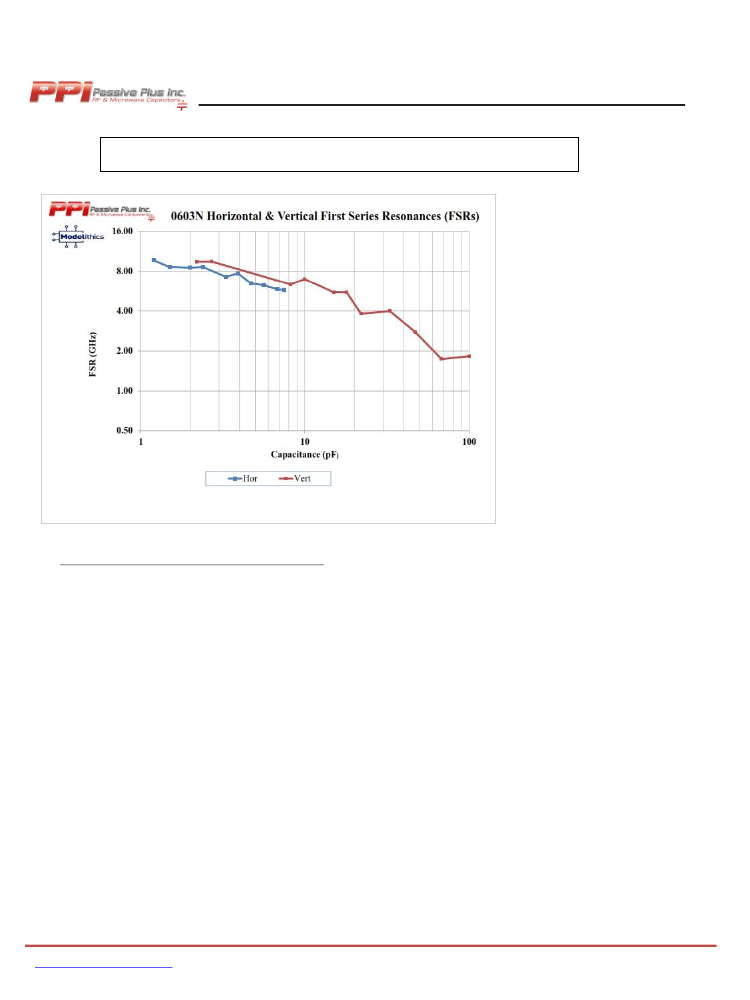

First Series Resonant Frequency vs. Capacitance
The First Series Resonance,
FSR, is defined as the lowest
frequency at which the
imaginary part of the input
impedance, Im[Zin], equals
zero. Should Im[Zin] or the
real part of the input
impedance, Re[Zin], not be
monotonic with frequency at
frequencies lower than those
at which Im[Zin] = 0, the FSR
shall be considered as
undefined. FSR is dependent
on internal capacitor structure;
substrate
thickness
and
dielectric constant; capacitor
orientation,
as
defined
alongside the FPR plot; and
mounting pad dimensions.
Definitions and Measurement conditions:
The definitions on the charts are for a capacitor in a series configuration, i.e., mounted across a
gap in a microstrip trace with a 50-Ohm termination. The measurement conditions are: substrate -
- Rogers RT/duroid® 5880; substrate dielectric constant = 2.20; substrate thickness (mils) = 10;
gap in microstrip trace (mils) = 23.7; microstrip trace width (mils) = 30.0;
Reference planes at
sample edges.
All data has been derived from electrical models created by Modelithics, Inc., a specialty vendor
contracted by PPI. The models are derived from measurements on a large number of parts
disposed on several different substrates.
S-Parameters can be found on the PPI Website-- http://www.passiveplus.com/designsupp.php
