NRSZ101M25V6.3X11TBSTNF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NRSZ101M25V6.3X11TBSTNF

NRSZ101M25V6.3X11TBSTNF: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 100uF,; CategoryPassive components capacitor; File Size92KB，5 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric View All

NRSZ101M25V6.3X11TBSTNF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 100uF,

NRSZ101M25V6.3X11TBSTNF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	831382118
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan, Mainland China, Taiwan
ECCN code	EAR99
YTEOL	6.65
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (WET)
ESR	220 mΩ
length	11 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	Ammo Pack
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	300 mA
Terminal pitch	2.5 mm

Preview

Download Datasheet

View All

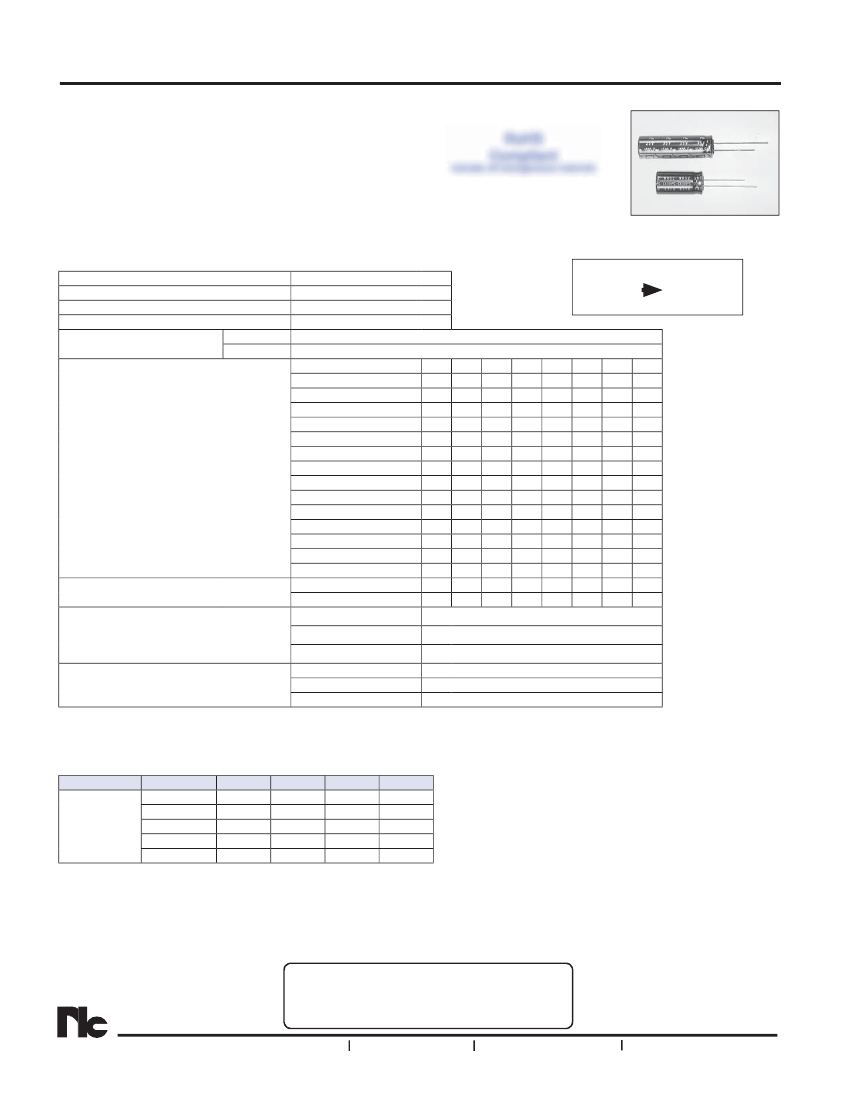

Miniature Aluminum Electrolytic Capacitors

LOW IMPEDANCE AT HIGH FREQUENCY RADIAL LEADS, POLARIZED

ALUMINUM ELECTROLYTIC CAPACITORS

RoHS

FEATURES

Compliant

includes all homogeneous materials

• VERY LOW IMPEDANCE

• LONG LIFE AT 105

C (2000 ~ 10,000 hrs.)

*See Part Number System f D il

P N b S

for Details

• HIGH STABILITY AT LOW TEMPERATURE

• IDEALLY FOR USE IN SWITCHING POWER SUPPLIES AND

..CONVERTERS

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

After 1 min.

Max. Leakage Current @ 20°C

After 2 min.

LOW IMPEDANCE

NRSZ Series

Max. Tanδ ~ 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at Rated W.V. & 105°C

(See Standard Products

and Speciﬁcations Tables)

Shelf Life Test

105°C for 1,000 hours

No Load

6.3 ~ 100VDC

2.2 ~ 12,000μF

(today’s standard)

-55 ~ +105°C

±20% (M)

0.03CV or 4μA, whichever is greater

0.01CV or 3μA, whichever is greater

W.V. (VDC)

6.3 10

63 100

S.V. (VDC)

79 125

C < 1,200μF

0.22 0.19 0.16 0.14 0.12 0.10 0.08 0.07

C = 1,500μF

0.23 0.20 0.17 0.15 0.13 0.11

C = 1,800μF

0.23 0.20 0.17 0.15 0.13 0.11

C = 2,200μF

0.24 0.21 0.18 0.16 0.14

C = 2,700μF

0.25 0.22 0.19 0.17 0.15

C = 3,300μF

0.26 0.23 0.20 0.18 0.16

0.28 0.25 0.22 0.20

C = 3,900μF

0.29 0.26 0.23 0.21

C = 4,700μF

0.31 0.28 0.25

C = 5,600μF

0.33 0.30 0.27

C = 6,800μF

0.36 0.33

C = 8,200μF

0.40

C = 10,000μF

0.44

C = 12,000μF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

Capacitance Change

Within ±20% of initial measured value

NRSZ

NRSY

(reduced sizes)

Tanδ

Leakage Current

Capacitance Change

Tanδ

Leakage Current

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

*NRSZ102M6.3V8X20 is 4,500 Hours @ 105°C

Unless otherwise speciﬁed here, capacitor shall meet JIS C-5141 Characteristics W.

RIPPLE CURRENT CORRECTION FACTORS

Frequency (Hz)

Cap. (μF)

2.2 ~ 4.7

5.6 ~ 47

56 ~ 270

330 ~ 1000

1200 ~ 12000

120

0.40

0.50

0.70

0.80

0.90

0.68

0.76

0.85

0.93

0.95

10K

0.78

0.87

0.90

0.98

1.0

100K

1.00

1.0

Multiplier

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process

details with NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
