BJ74-47 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> BJ74-47

BJ74-47: Descriptionconn trb jack str crimp; CategoryThe connector; File Size178KB，1 Pages; ManufacturerEmerson; Environmental Compliance

Download Datasheet Parametric Compare View All

BJ74-47 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BJ74-47	-	-	View	Buy Now

BJ74-47 Overview

conn trb jack str crimp

BJ74-47 Parametric

Parameter Name	Attribute value
Datasheets
BJ74,(BR)Drawing
Product Photos
BJ74-47
Product Training Modules
Configured Solutions Video Patching
Benefits of DS-3 Lines
Standard Package	10
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF)
Packaging	Bulk
Connector Style	TRB
Connector Type	Jack, Female Socke
Contact Terminati	Crim
Shield Terminati	Clam
Impedance	-
Mounting Type	Panel Mount, Bulkhead - Front Side Nu
Cable Grou	-
Fastening Type	Bayonet Lock
Frequency - Max	500MHz
Features	Isolated, Three Lug
Housing Col	Silve
Ingress Protecti	-
Body Material	Brass
Body Finish	Nickel
Center Contact Material	-
Center Contact Plating	Gold
Dielectric Material	-
Voltage Rating	-
Operating Temperature	-
Dynamic Catalog	TRB
Associated Produc	1097-1191-ND - CONN CAP DUST FOR BNC/TRB JACK1097-1117-ND - CONN CAP (COVER) FOR TRB JACKS1097-1116-ND - CONN CAP (COVER) FOR TRB JACKS
Other Names	1097-1025BJ7447

Preview

Download Datasheet

View All

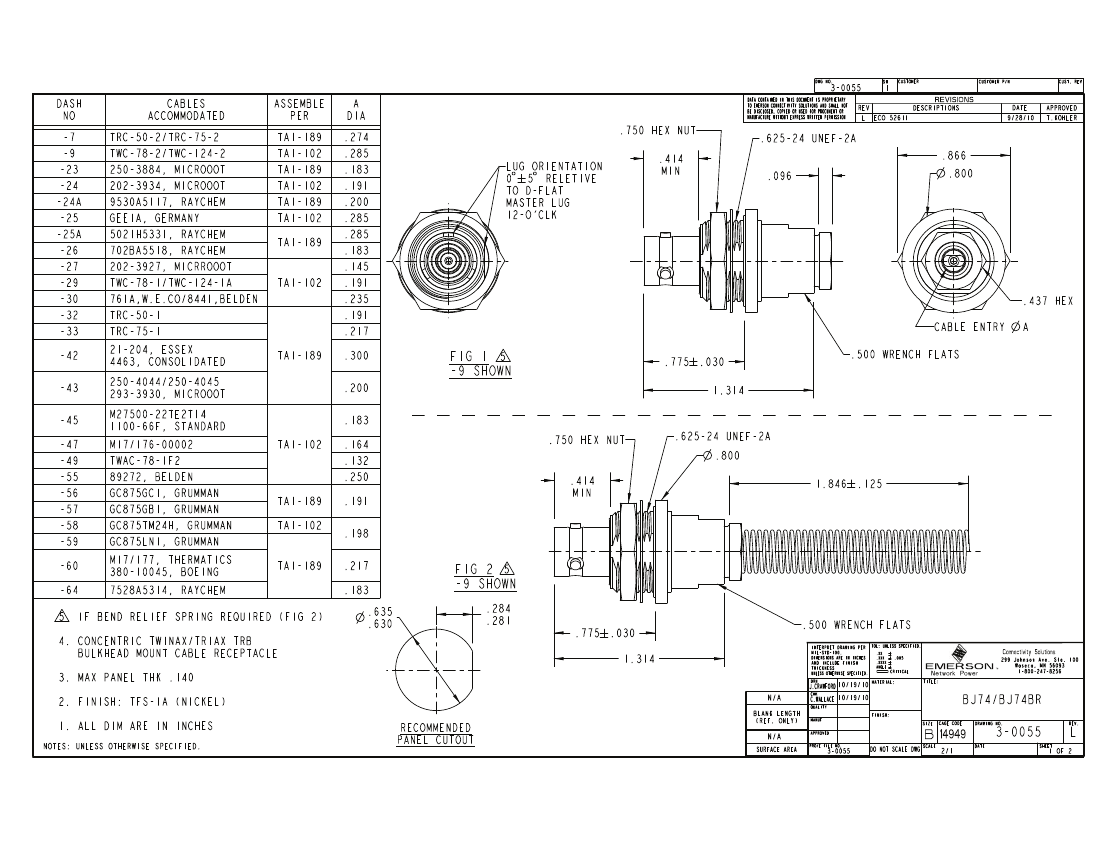

DWG NO.

CUSTOMER

CUSTOMER P/N

CUST. REV

3-0055

REVISIONS

DESCRIPTIONS

DATE

9/28/10

APPROVED

T.KOHLER

DASH

-7

-9

-23

-24

-24A

-25

-25A

-26

-27

-29

-30

-32

-33

-42

-43

-45

-47

-49

-55

-56

-57

-58

-59

-60

-64

CABLES

ACCOMMODATED

TRC-50-2/TRC-75-2

TWC-78-2/TWC-124-2

250-3884, MICROOOT

202-3934, MICROOOT

9530A5117, RAYCHEM

GEEIA, GERMANY

5021H5331, RAYCHEM

702BA5518, RAYCHEM

202-3927, MICRROOOT

TWC-78-1/TWC-124-1A

76IA,W.E.CO/8441,BELDEN

TRC-50-1

TRC-75-1

21-204, ESSEX

4463, CONSOLIDATED

250-4044/250-4045

293-3930, MICROOOT

M27500-22TE2T14

1100-66F, STANDARD

M17/176-00002

TWAC-78-1F2

89272, BELDEN

GC875GC1, GRUMMAN

GC875GB1, GRUMMAN

GC875TM24H, GRUMMAN

GC875LNI, GRUMMAN

M17/177, THERMATICS

380-10045, BOEING

7528A5314, RAYCHEM

ASSEMBLE

PER

TAI-189

TAI-102

TAI-189

TAI-102

TAI-189

TAI-102

TAI-189

DIA

.274

.285

.183

.191

.200

.285

.183

.145

.191

.235

.191

.217

LUG ORIENTATION

0 5 RELETIVE

TO D-FLAT

MASTER LUG

12-O'CLK

.750 HEX NUT

.414

MIN

DATA CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO EMERSON CONNECTIVITY SOLUTIONS AND SHALL NOT

REV

BE DISCLOSED, COPIED OR USED FOR PROCUMENT OR

MANUFACTURE WITHOUT EXPRESS WRITTEN PERMISSION

52611

L ECO

.625-24 UNEF-2A

.866

.096

.800

TAI-102

.437 HEX

CABLE ENTRY

TAI-189

.300

.200

.183

FIG 1

-9 SHOWN

.775 .030

1.314

.500 WRENCH FLATS

TAI-102

.164

.132

.250

.750 HEX NUT

.625-24 UNEF-2A

.800

TAI-189

TAI-102

.191

.198

.217

.183

.635

.630

.414

MIN

1.846 .125

TAI-189

FIG 2

-9 SHOWN

.284

.281

.775 .030

1.314

.500 WRENCH FLATS

TOL: UNLESS SPECIFIED.

INTERPRET DRAWING PER

MIL-STD-100.

.XX

DIMENSIONS ARE IN INCHES

.XXX

.005

.XXXX

AND INCLUDE FINISH

ANGLE

THICKNESS

CRITICAL

UNLESS OTHERWISE SPECIFIED.

IF BEND RELIEF SPRING REQUIRED (FIG 2)

4. CONCENTRIC TWINAX/TRIAX TRB

BULKHEAD MOUNT CABLE RECEPTACLE

3. MAX PANEL THK .140

2. FINISH: TFS-1A (NICKEL)

1. ALL DIM ARE IN INCHES

NOTES: UNLESS OTHERWISE SPECIFIED.

Connectivity Solutions

EMERSON

Network Power

299 Johnson Ave. Ste. 100

Waseca, MN 56093

1-800-247-8256

10/19/10

J.CRAWFORD

DRN

MATERIAL:

TITLE:

N/A

BLANK LENGTH

(REF. ONLY)

10/19/10

C.WALLACE

QUALITY

CHK

BJ74/BJ74BR

FINISH:

SIZE

CAGE CODE

DRAWING NO.

REV.

MANUF

RECOMMENDED

PANEL CUTOUT

N/A

SURFACE AREA

APPROVED

PRO/E FILE NO.

B 14949

DO NOT SCALE DWG

SCALE

DATE

3-0055

SHEET

1 OF 2

3-0055

2/1

BJ74-47 Related Products

	BJ74-47	BJ74-29	BJ74-9
Description	conn trb jack str crimp	conn trb jack str crimp	conn trb jack str solder
Standard Package	10	10	-
Category	Connectors, Interconnects	Connectors, Interconnects	-
Family	Coaxial Connectors (RF)	Coaxial Connectors (RF)	-
Packaging	Bulk	Bulk	-
Connector Style	TRB	TRB	-
Connector Type	Jack, Female Socke	Jack, Female Socke	-
Contact Terminati	Crim	Crim	-
Shield Terminati	Clam	Clam	-
Mounting Type	Panel Mount, Bulkhead - Front Side Nu	Panel Mount, Bulkhead - Front Side Nu	-
Fastening Type	Bayonet Lock	Bayonet Lock	-
Frequency - Max	500MHz	500MHz	-
Features	Isolated, Three Lug	Isolated, Three Lug	-
Housing Col	Silve	Silve	-
Body Material	Brass	Brass	-
Body Finish	Nickel	Nickel	-
Center Contact Plating	Gold	Gold	-
Dynamic Catalog	TRB	TRB	-
Associated Produc	1097-1191-ND - CONN CAP DUST FOR BNC/TRB JACK1097-1117-ND - CONN CAP (COVER) FOR TRB JACKS1097-1116-ND - CONN CAP (COVER) FOR TRB JACKS	1097-1191-ND - CONN CAP DUST FOR BNC/TRB JACK1097-1117-ND - CONN CAP (COVER) FOR TRB JACKS1097-1116-ND - CONN CAP (COVER) FOR TRB JACKS	-
Other Names	1097-1025BJ7447	1097-1024BJ7429	-
