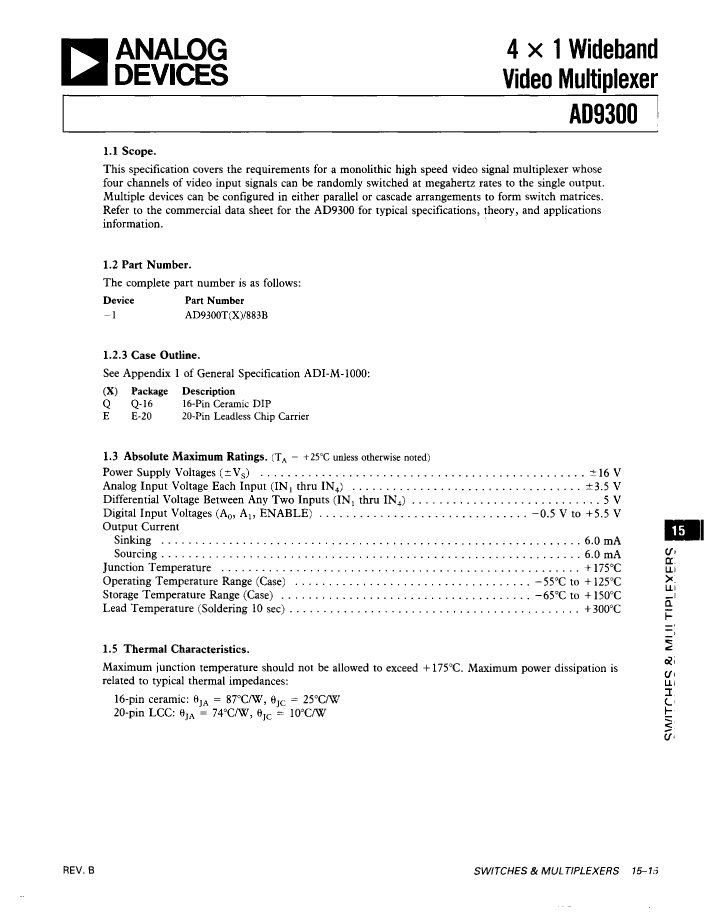

IC 4-CHANNEL, VIDEO MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch

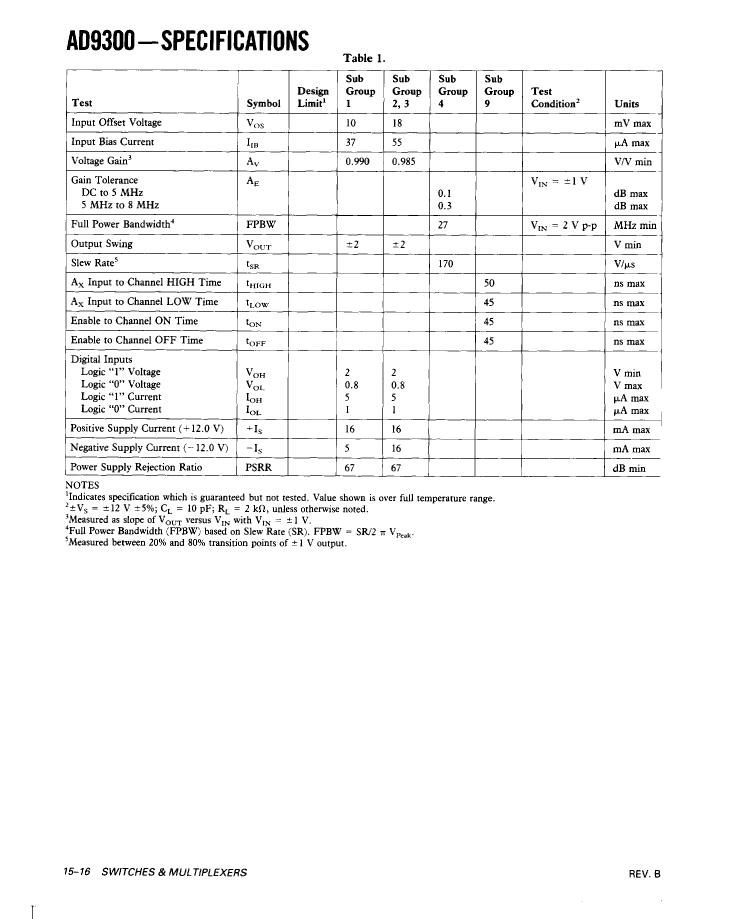

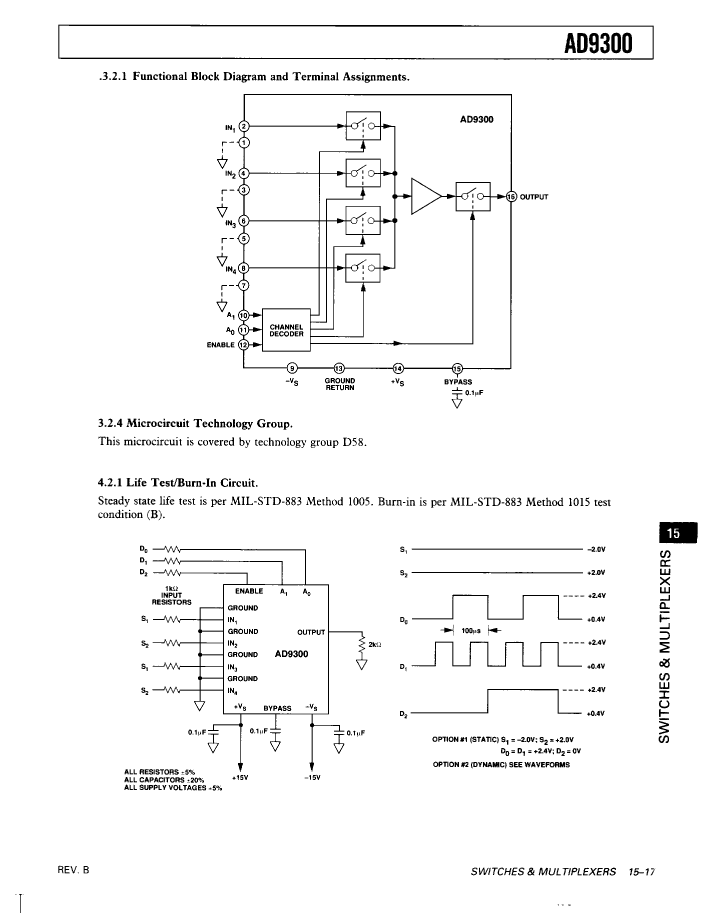

| Parameter Name | Attribute value |
| Maker | ADI |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | VIDEO MULTIPLEXER |
| JESD-30 code | R-GDIP-T16 |
| length | 19.05 mm |
| Nominal Negative Supply Voltage (Vsup) | -12 V |
| Number of channels | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 5.08 mm |
| Nominal supply voltage (Vsup) | 12 V |
| surface mount | NO |
| Maximum disconnect time | 45 ns |
| Maximum connection time | 45 ns |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 5962-9201401MEX | 5962-9201401M2A | 5962-9201401MEA | |
|---|---|---|---|
| Description | IC 4-CHANNEL, VIDEO MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch | IC 4-CHANNEL, VIDEO MULTIPLEXER, CQCC20, CERAMIC, LCC-20, Multiplexer or Switch | IC 4-CHANNEL, VIDEO MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch |
| Parts packaging code | DIP | QLCC | DIP |
| package instruction | DIP, | CERAMIC, LCC-20 | CERDIP-16 |
| Contacts | 16 | 20 | 16 |
| Reach Compliance Code | unknown | compliant | compliant |
| Analog Integrated Circuits - Other Types | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER |
| JESD-30 code | R-GDIP-T16 | S-CQCC-N20 | R-GDIP-T16 |
| length | 19.05 mm | 8.89 mm | 19.05 mm |
| Nominal Negative Supply Voltage (Vsup) | -12 V | -12 V | -12 V |
| Number of channels | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 16 | 20 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | QCCN | DIP |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Filter level | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 |
| Maximum seat height | 5.08 mm | 2.54 mm | 5.08 mm |
| Nominal supply voltage (Vsup) | 12 V | 12 V | 12 V |
| surface mount | NO | YES | NO |
| Maximum disconnect time | 45 ns | 45 ns | 45 ns |
| Maximum connection time | 45 ns | 45 ns | 45 ns |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | DUAL |
| width | 7.62 mm | 8.89 mm | 7.62 mm |
| Maker | ADI | - | ADI |
| Base Number Matches | 1 | 1 | - |
| Is it Rohs certified? | - | incompatible | incompatible |
| ECCN code | - | EAR99 | EAR99 |
| JESD-609 code | - | e0 | e0 |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED |
| Maximum supply current (Isup) | - | 16 mA | 16 mA |
| Terminal surface | - | TIN LEAD | TIN LEAD |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED |
