FP-025RE150M-01JG: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 25V, 20% +Tol, 20% -Tol, 15uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size216KB，2 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric View All

FP-025RE150M-01JG Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 25V, 20% +Tol, 20% -Tol, 15uF, Through Hole Mount, RADIAL LEADED

FP-025RE150M-01JG Parametric

Parameter Name	Attribute value
Objectid	2012817777
package instruction	,
Reach Compliance Code	unknown
capacitance	15 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	70 mΩ
JESD-609 code	e3
leakage current	0.0075 mA
Manufacturer's serial number	RE
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	1650 mA
surface mount	NO
Delta tangent	0.06
Terminal surface	TIN
Terminal shape	WIRE

Preview

Download Datasheet

View All

ad free

Le

Functional Polymer Capacitors

FPCAP

Solid Electrolytic Capacitors with Functional Polymer

RE

Series

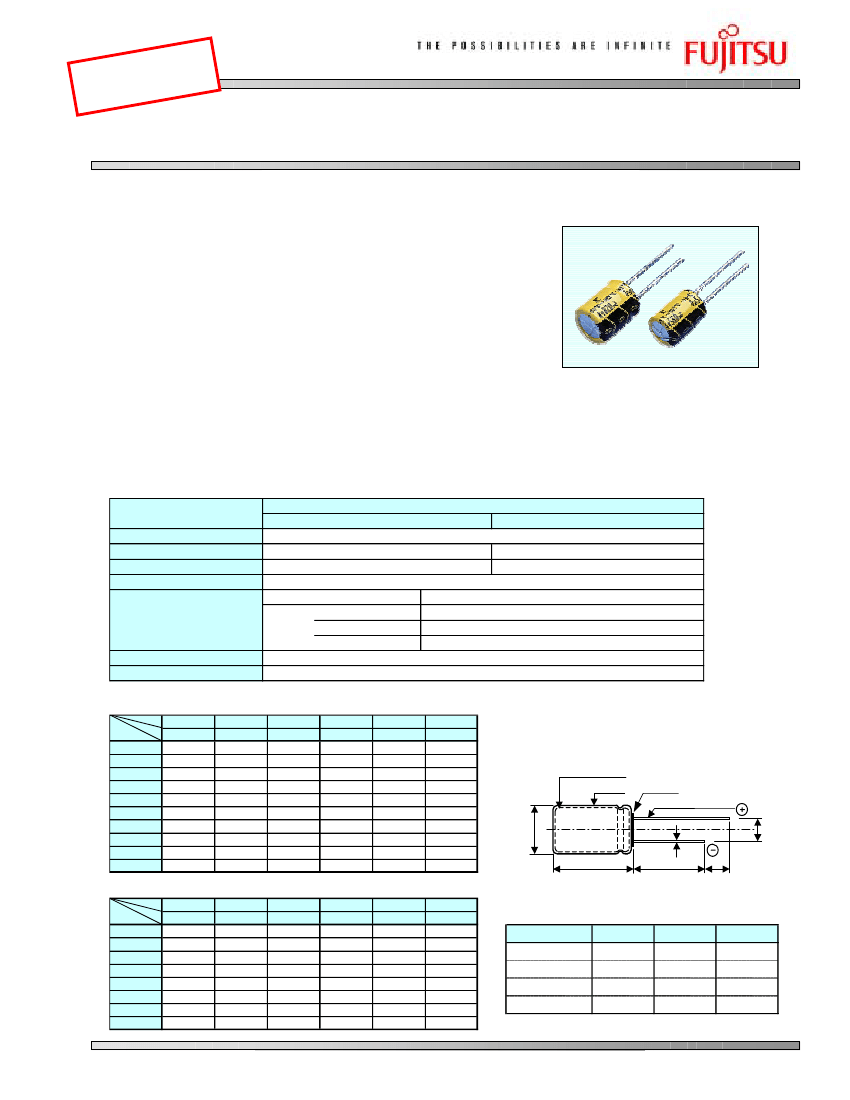

¨Features

By using Functional Polymer cathode, Frequency & Temp.

characteristics are greatly improved.

• Low ESR at a high frequency range.

• High ripple current capability.

• Long life and high reliability.(Reliability:0.05%/10000Hrs)

• Switching Power Supply and DC/DC Converter.

• Power Supplies of CPU(VRM etc.)

¨Applications

¨Environmental

correspondence

The environmental friendly substance is not used for a use component.

• The lead free of terminal plating (Sn 100%)

¨Specifications

Items

Operating T emp. Range

Rated Voltage Range

Capacitance Range

Capacitance T olerance

Endurance

Standard type (01)

6.3 to 25V·DC

10 to 330

m

F

Condition

Characteristics

Extended capacitance type (S1)

-55 to +105°C

4.0 to 16V·DC

330 to 1200

m

F

Reliability

Others

±20% (M)

105°C 2,000Hrs at rated voltage

Capacitance

Within ±20% of the value before test

Leakage Current

Not to exceed the value specified

Dissipation Factor

Not to exceed 150% of the value specified

0.05% / 10,000Hrs. Max (60%CL)

JIS-C-5101-4

¨Dimensions

R.V.(V)

S.V

.(

Cap(mF)

V)

10

11.5

16

18.4

6.3×7

6.3×10

8×11.5

10×12.5

20

23.0

6.3×7

6.3×10

8×11.5

10×12.5

(fD´L)

10

15

22

33

47

68

100

150

220

330

4.0

4.6

6.3

7.2

6.3×7

8×11.5

10×12.5

4.0

4.6

6.3

7.2

6.3×7

6.3×10

8×11.5

10×12.5

25

28.7

6.3×7

6.3×10

8×11.5

10×12.5

fD+0.5Max

Aluminum Case

Sleeve

Stand off

CP Wire (Lead free)

P±0.5

fd

R.V.(V)

S.V

.(

Cap(mF)

V)

10

11.5

8×11.5

16

18.4

10×12.5

(fD´L)

L+aMax

15Min

5Min

(Unit : mm)

330

390

470

560

680

820

1000

1200

20

23.0

25

28.7

8×11.5

10×12.5

f

D×L

6.3×7

6.3×10

8×11.5

10×12.5

f

d

0.45

0.6

P

2.5

3.5

5.0

a

1.0

1.5
