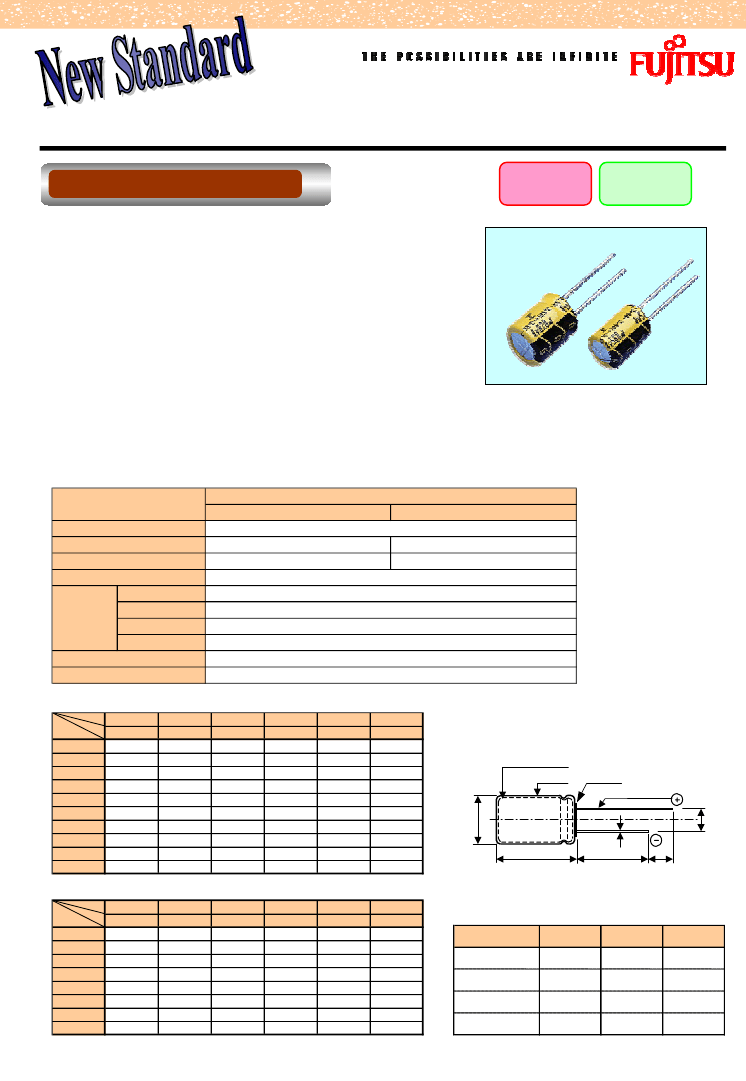

Functional Polymer Capacitors
Solid Electrolytic Capacitors with Functional Polymer
FPCAP
FPCAP
Lead Free
RE
Series
0L, SL
Features
Type
Low ESR
Applications
By using Functional Polymer cathode, Frequency & Temp.
characteristics are greatly improved.
¯
Low ESR at a high frequency range.
¯
High ripple current capability.
¯
Long life and high reliability.(Reliability:0.1%/1000Hrs)
¯
Switching Power Supply and DC/DC Converter.
¯
Buck up Power Supplies of CPU(VRM etc.)
¯
Miniature high Power Supply.
Environmental correspondence
Any environmental hazardous substances are not used.
¯
The lead free of terminal plating (Sn 100%)
Specifications
Items
Operating T emp. Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Condition
Capacitance
Endurance
Leakage Current
Dissipation Factor
Reliability
Others
Standard type (0L)
6.3 to 25V·DC
10 to 330
m
F
Characteristics
Extended capacitance type (SL)
-55 to +105°C
4.0 to 16V·DC
330 to 1200
m
F
±20% (M)
105°C 2,000Hrs at rated voltage
Within ±20% of the value before test
Not to exceed the value specified
Not to exceed 150% of the value specified
0.1% / 1,000Hrs. Max (60%CL)
JIS-C-5101-4
Dimensions
R.V.(V)
S.V
.(
Cap(mF)
V)
<Standard type : 0L>
10
11.5
16
18.4
20
23.0
6.3×7
6.3×7
6.3×10
8×11.5
8×11.5
10×12.5
(fD´L)
25
28.7
6.3×7
6.3×10
8×11.5
10×12.5
10×12.5
4.0
4.6
6.3
7.2
10
15
22
33
47
68
100
150
220
330
R.V.(V)
S.V
.(
Cap(mF)
V)
6.3×7
6.3×7
6.3×10
8×11.5
8×11.5
8×11.5
10×12.5
10×12.5
6.3×7
6.3×7
6.3×10
8×11.5
8×11.5
10×12.5
Aluminum Case
Sleeve
fD+0.5Max
Stand off
Wire
P±0.5
fd
L+aMax
15Min
5Min
(Unit : mm)
<Extended capacitance type : SL>
4.0
4.6
6.3
7.2
8×11.5
10×12.5
8×11.5
10×12.5
10×12.5
10×12.5
10×12.5
10×12.5
10
11.5
330
390
470
560
680
820
1000
1200
16
18.4
10×12.5
20
23.0
(fD´L)
25
28.7
f
D×L
6.3×7
6.3×10
8×11.5
10×12.5
f
d
0.45
0.6
0.6
0.6
P
2.5
2.5
3.5
5.0
a
1.0
1.0
1.5
1.5
FUJITSU MEDIA DEVICES LIMITED
Functional Polymer Capacitors (FPCAP)
Part number & Specifications
Rated
Voltage
(V)
4.0
C apacitance
(
m
F)
560
820
1200
47
150
220
6.3
330
390
680
820
1000
33
68
10
100
220
470
22
33
47
16
68
100
150
330
15
22
20
33
47
68
100
10
15
25
22
33
47
FP-4R0RE561M-SL
oo
FP-4R0RE821M-SL
oo
FP-4R0RE122M-SL
oo
FP-6R3RE470M-0L
oo
FP-6R3RE151M-0L
oo
FP-6R3RE221M-0L
oo
FP-6R3RE331M-0L
oo
FP-6R3RE391M-SL
oo
FP-6R3RE681M-SL
oo
FP-6R3RE821M-SL
oo
FP-6R3RE102M-SL
oo
FP-010RE330M-0L
oo
FP-010RE680M-0L
oo
FP-010RE101M-0L
oo
FP-010RE221M-0L
oo
FP-010RE471M-SL
oo
FP-016RE220M-0L
oo
FP-016RE330M-0L
oo
FP-016RE470M-0L
oo
FP-016RE680M-0L
oo
FP-016RE101M-0L
oo
FP-016RE151M-0L
oo
FP-016RE331M-SL
oo
FP-020RE150M-0L
oo
FP-020RE220M-0L
oo
FP-020RE330M-0L
oo
FP-020RE470M-0L
oo
FP-020RE680M-0L
oo
FP-020RE101M-0L
oo
FP-025RE100M-0L
oo
FP-025RE150M-0L
oo
FP-025RE220M-0L
oo
FP-025RE330M-0L
oo
FP-025RE470M-0L
oo
Part N umber
Leakage C urrent
(
m
A, 2 minutes)
336.0
492.0
720.0
50.0
141.8
207.9
311.9
368.6
642.6
774.9
945.0
50.0
102.0
150.0
330.0
705.0
52.8
79.2
112.8
163.2
240.0
360.0
792.0
50.0
66.0
99.0
141.0
204.0
300.0
50.0
75.0
110.0
165.0
235.0
0.080
0.080
0.150
0.070
0.070
0.070
0.070
0.080
0.080
0.120
0.120
0.070
0.070
0.070
0.070
0.080
0.060
0.060
0.060
0.060
0.060
0.060
0.080
0.060
0.060
0.060
0.060
0.060
0.060
0.060
0.060
0.060
0.060
0.060
tan
d
ESR
(m
W
, at100kH z)
10
10
10
42
21
21
10
10
10
10
10
49
35
21
10
10
49
49
42
25
21
10
10
63
49
49
28
25
15
63
49
28
20
20
Max mun permissible
Ripple C urrent
(mA, r.m.s.)
5230
5500
5500
2050
3900
3900
5500
5230
5500
5500
5500
1900
2650
3900
5500
5500
1900
1900
2400
3600
3900
5500
5500
1700
1900
2200
3400
3600
4500
1700
2200
3400
3800
3800
C ase Size
f
D×L(mm)
8×11.5
10×12.5
10×12.5
6.3×7
8×11.5
8×11.5
10×12.5
8×11.5
10×12.5
10×12.5
10×12.5
6.3×7
6.3×10
8×11.5
10×12.5
10×12.5
6.3×7
6.3×7
6.3×10
8×11.5
8×11.5
10×12.5
10×12.5
6.3×7
6.3×7
6.3×10
8×11.5
8×11.5
10×12.5
6.3×7
6.3×10
8×11.5
10×12.5
10×12.5
Part Number
(EX)
FP
Community
Mark
16V100mF
RE
101
M
0L
Type Symbol
0L:Standard Cap.
SL:Extended Cap.
016
Rated
Voltage
R
Lead
Forming
R: Bulk Long lead
J: 2.5mm pitch taping
K: 3.5mm pitch taping
P: 8f
-5mm
pitch taping
PH: 10f
-5mm
pitch taping
CG: Bulk cut lead
.
Series
Name
Capacitance Capacitance
Tolerance
Management
number
FUJITSU MEDIA DEVICES LIMITED
http://jp.fujitsu.com/fmd/en/
North and South America
FUJITSU MEDIA DEVICES OF AMERICA, INC.
Tel: +1-408-746-7500
Fax: +1-408-746-7555
http://www.fmda.fujitsu.com/
Europe
FUJITSU MICROELECTRONICS
EUROPE GmbH
Tel: +49-6103-690-0
Fax: +49-6103-690-122
http://www.fme.fujitsu.com/
Japan
Global Sales
Shin-Yokohama Square Bldg., 14F Shin-Yokohama 2-3-12, Kohoku-ku, Yokohama,
Kanagawa 222-0033, Japan
Tel: +81-45-471-0061 Fax: +81-45-471-0076
Asia Pacific
FUJITSU MEDIA DEVICES HONG KONG LTD.
Tel: +852-2866-8509
Fax: +852-2866-8287
(Taiwan Representative office)
Tel: +886-2-2311-2255
Fax: +886-2-2371-8347
FUJITSU MEDIA DEVICES TRADING (SHANGHAI) LTD.
Tel: +86-21-6323-4560
Fax: +86-21-6323-4510
Specifications are subject to change without notice. For further information please contact each office.
The contents of this document are subject to change without notice.
Customers are advised to consult with FUJITSU MEDIA DEVICES sales representatives before ordering.
The information, such as descriptions of function and application circuit examples, in this document are presented solely for the purpose of reference to show examples of operations and uses of FUJITSU MEDIA DEVICES
electronic device; FUJITSU MEDIA DEVICES does not warrant proper operation of the device with respect to use based on such information. When you develop equipment incorporating the device based on such
information, you must assume any responsibility arising out of such use of the information. FUJITSU MEDIA DEVICES assumes no liability for any damages whatsoever arising out of the use of the information.Any
information in this document, including descriptions of function and schematic diagrams, shall not be construed as license of the use or exercise of any intellectual property right, such as patent right or copyright, or any
other right of FUJITSU MEDIA DEVICES or any third party or does FUJITSU MEDIA DEVICES warrant non-infringement of any third-party's intellectual property right or other right by using such information. FUJITSU
MEDIA DEVICES assumes no liability for any infringement of the intellectual property rights or other rights of third parties which would result from the use of information contained herein.The products described in this
document are designed, and manufactured as contemplated for general use, including without limitation, ordinary industrial use, general office use, personal use, and household use, but are not designed, developed and
manufactured as contemplated (1) for use accompanying fatal risks or dangers that, unless extremely high safety is secured, could have a serious effect to the public, and could lead directly to death, personal injury, severe
physical damage or other loss (i.e., nuclear reaction control in nuclear facility, aircraft flight control, air traffic control, mass transport control, medical life support system, missile launch control in weapon system), or (2) for
use requiring extremely high reliability (i.e., submersible repeater and artificial satellite).Please note that FUJITSU MEDIA DEVICES will not be liable against you and/or any third party for any claims or damages arising in
connection with above-mentioned uses of the products.Any electronic devices have inherently a certain rate of failure. You must protect against injury, damage or loss from such failures by incorporating safety design
measures into your facility and equipment such as redundancy, fire protection, and prevention of over-current levels and other abnormal operating conditions.If any products described in this document represent goods or
technologies subject to certain restrictions on export under the Foreign Exchange and Foreign Trade Control Law of Japan, the prior authorization by Japanese government should be required for export of those products
from Japan.
©2006FUJITSU MEDIA DEVICES LIMITED Printed in Japan
AD60-47001-02E
February, 2006
