3-1393483-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-1393483-8

Preview

3-1393483-8: DescriptionV42254A1115B209=SUB D FEDERLEI; CategoryThe connector The connector; File Size276KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1393483-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1393483-8	-	-	View	Buy Now

3-1393483-8 Overview

V42254A1115B209=SUB D FEDERLEI

3-1393483-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	21 weeks 3 days
Is Samacsys	N
Other features	STANDARD: DIN 41652
body width	0.509 inch
subject depth	0.381 inch
body length	1.228 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	GRAY
insulator material	THERMOPLASTIC
MIL compliance	NO
Match contact row spacing	0.11 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

4

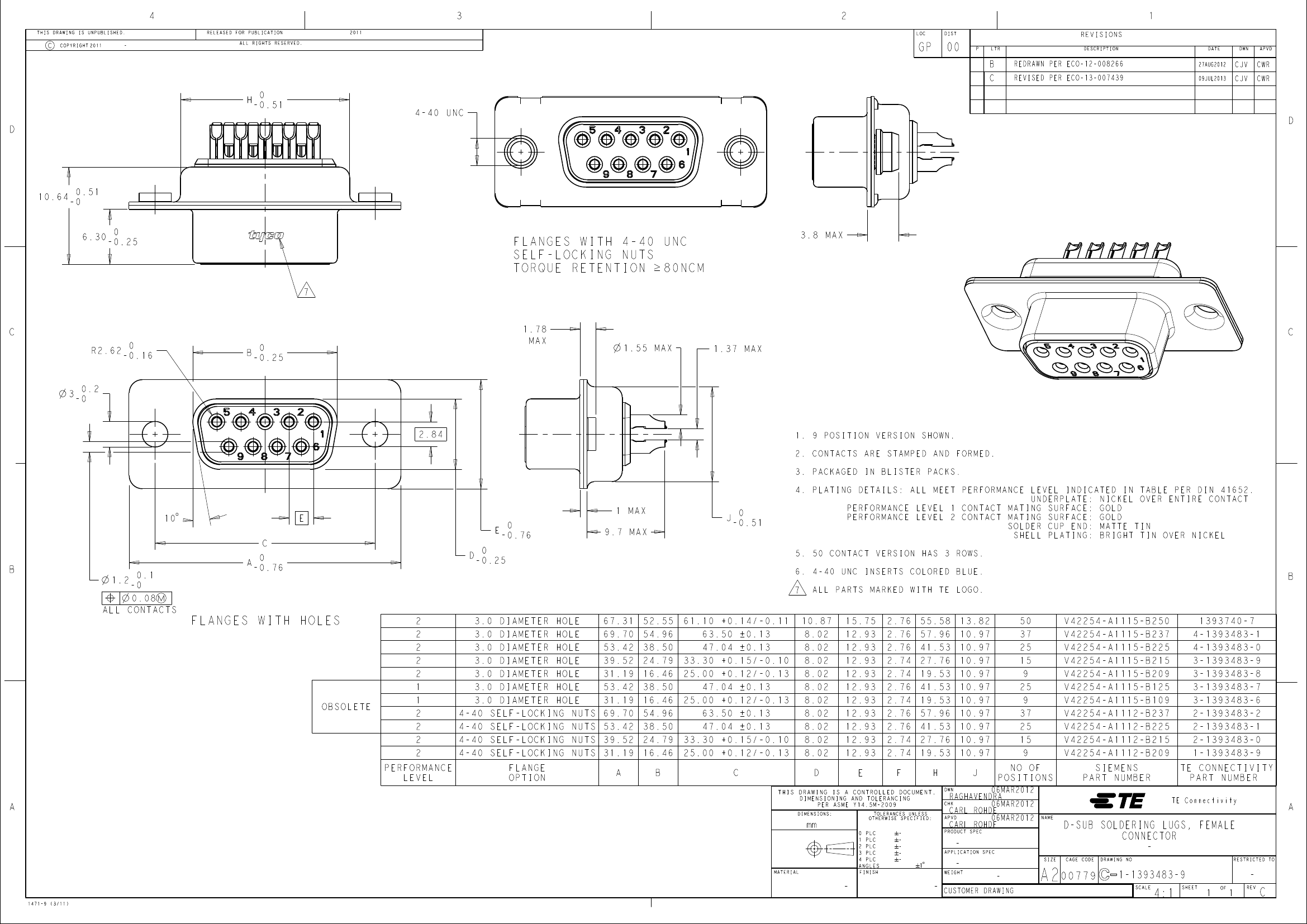

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

2011

3

2

LOC

DIST

1

C

COPYRIGHT

2011

GP

00

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

B

C

REDRAWN PER ECO-12-008266

REVISED PER ECO-13-007439

27AUG2012

09JUL2013

CJV

CWR

H

0

-0.51

4-40 UNC

D

10.64

0.51

-0

6.30

0

-0.25

3.8 MAX

FLANGES WITH 4-40 UNC

SELF-LOCKING NUTS

TORQUE RETENTION 80NCM

7

C

R 2.62

0

-0.16

B

0

-0.25

1.78

MAX

C

1.37 MAX

0.2

-0

2.84

1. 9 POSITION VERSION SHOWN.

2. CONTACTS ARE STAMPED AND FORMED.

3. PACKAGED IN BLISTER PACKS.

4. PLATING DETAILS: ALL MEET PERFORMANCE LEVEL INDICATED IN TABLE PER DIN 41652.

UNDERPLATE: NICKEL OVER ENTIRE CONTACT

PERFORMANCE LEVEL 1 CONTACT MATING SURFACE: GOLD

PERFORMANCE LEVEL 2 CONTACT MATING SURFACE: GOLD

SOLDER CUP END: MATTE TIN

SHELL PLATING: BRIGHT TIN OVER NICKEL

5. 50 CONTACT VERSION HAS 3 ROWS.

6. 4-40 UNC INSERTS COLORED BLUE.

10 $

C

E

D

0

-0.76

1 MAX

9.7 MAX

J

0

-0.51

B

0.1

-0

ALL CONTACTS

0

A

-0.76

0

-0.25

7

ALL PARTS MARKED WITH TE LOGO.

B

FLANGES WITH HOLES

2

OBSOLETE

1

2

1

2

3.0 DIAMETER HOLE

67.31

53.42

69.70

39.52

31.19

53.42

69.70

53.42

24.79

16.46

38.50

16.46

B

24.79

54.96

38.50

54.96

52.55

61.10 +0.14/-0.11

47.04 ±0.13

63.50 ±0.13

10.87

8.02

15.75

12.93

2.76

2.74

2.76

2.74

2.76

2.74

2.76

55.58

57.96

27.76

19.53

41.53

19.53

41.53

27.76

H

DWN

33.30 +0.15/-0.10

25.00 +0.12/-0.13

63.50 ±0.13

47.04 ±0.13

8.02

41.53

10.97

J

10.97

13.82

50

37

15

25

37

9

25

V42254-A1115-B237

V42254-A1115-B215

V42254-A1115-B125

V42254-A1115-B109

V42254-A1112-B225

V42254-A1112-B215

SIEMENS

PART NUMBER

V42254-A1112-B237

V42254-A1115-B209

V42254-A1115-B225

V42254-A1115-B250

4-1393483-0

3-1393483-9

3-1393483-8

3-1393483-7

2-1393483-2

2-1393483-1

2-1393483-0

3-1393483-6

4-1393483-1

1393740-7

12.93

E

12.93

2

4-40 SELF-LOCKING NUTS

FLANGE

OPTION

4-40 SELF-LOCKING NUTS

57.96

31.19

A

39.52

33.30 +0.15/-0.10

C

25.00 +0.12/-0.13

8.02

D

8.02

12.93

2.74

F

25

15

9

2.74

19.53

10.97

V42254-A1112-B209

1-1393483-9

PERFORMANCE

LEVEL

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONING AND TOLERANCING

PER ASME Y14.5M-2009

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

06MAR2012

RAGHAVENDRA

CHK

06MAR2012

CARL ROHDE

APVD

06MAR2012

CARL ROHDE

PRODUCT SPEC

APPLICATION SPEC

NO OF

POSITIONS

TE CONNECTIVITY

PART NUMBER

TE Connectivity

NAME

A

-

1 $

WEIGHT

-

1471-9 (3/11)

-

CUSTOMER DRAWING

-

A2

00779

SIZE

D-SUB SOLDERING LUGS, FEMALE

CONNECTOR

-

CAGE CODE

DRAWING NO

RESTRICTED TO

1-1393483-9

SCALE

4:1

SHEET

1

OF

1

REV

-

C

3-1393483-8 Related Products

	3-1393483-8
Description	V42254A1115B209=SUB D FEDERLEI
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	21 weeks 3 days
Is Samacsys	N
Other features	STANDARD: DIN 41652
body width	0.509 inch
subject depth	0.381 inch
body length	1.228 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	GRAY
insulator material	THERMOPLASTIC
MIL compliance	NO
Match contact row spacing	0.11 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1
