FWJ-02-01-T-S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> FWJ-02-01-T-S

Preview

FWJ-02-01-T-S: Descriptionconn header .156" 2pos sngl tin; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FWJ-02-01-T-S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FWJ-02-01-T-S	-	-	View	Buy Now

FWJ-02-01-T-S Overview

conn header .156" 2pos sngl tin

FWJ-02-01-T-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	8 weeks
body width	0.25 inch
subject depth	0.125 inch
body length	0.312 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Terminal length	0.175 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

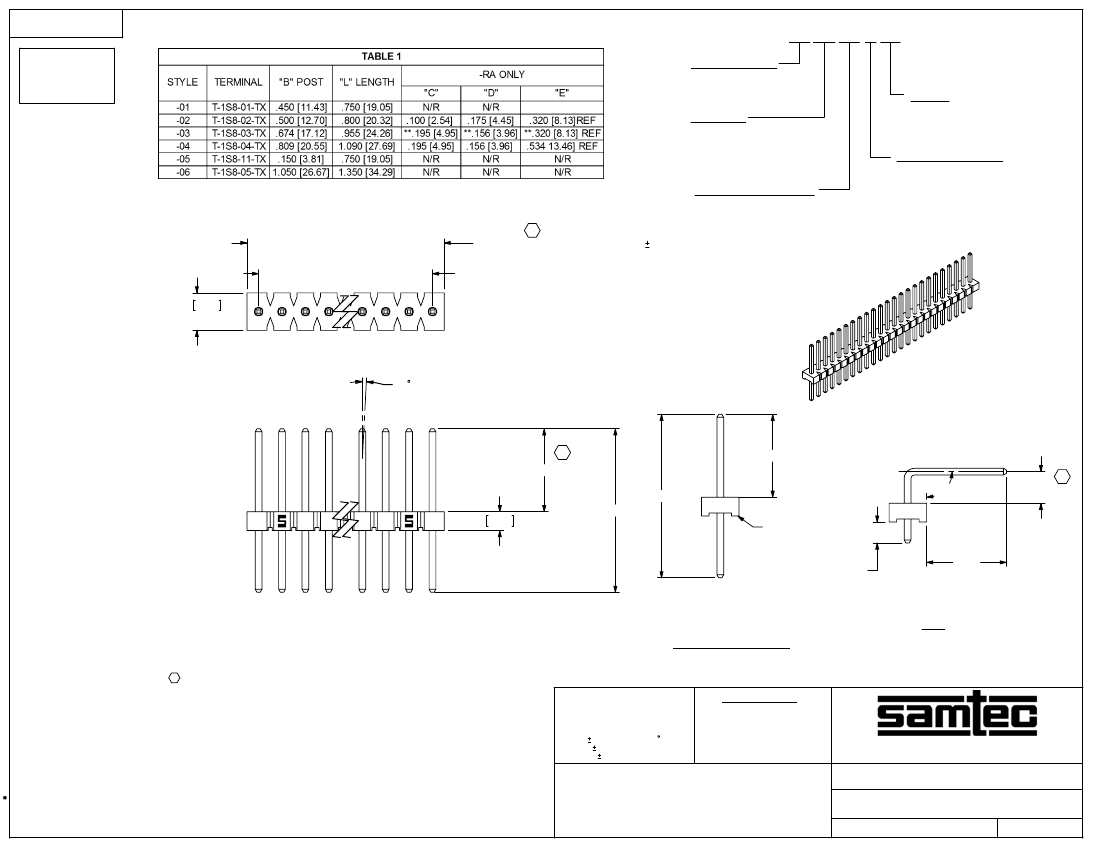

REVISION AB

DO NOT

SCALE FROM

THIS PRINT

FWJ-XX-XX-TX-S-XX

No OF POSITIONS

-01 THRU -23

-24 = SEE FSW-24-156

LEAD STYLE

SEE TABLE 1

OPTION

-RA: RIGHT ANGLE

BODY SPECIFICATION

USE FSW-24-156

**=NOT RELEASED FOR PRODUCTION.

C1

PLATING SPECIFICATION

-T: MATTE IN CONTACT AND TAIL

-TM: MATTE TIN CONTACT AND TAIL

(NO OF POSITIONS X.156 [3.96]) .010 [.25]

(No OF POS. x .156 [3.96])-.156 [3.96]

.250 6.35

REF

2 MAX SWAY

(EITHER DIRECTION)

C2

"B" (SEE NOTES 4 & 5)

"L"

"B"

90°±2°

STANDOFF

"D" REF

(SEE NOTE 5)

"E"

"C"

C3

.125 3.18 REF

-RA

IN-PROCESS VIEW

NOTES:

1.

C

REPRESENTS A CRITICAL DIMENSION.

2. MIN PUSHOUT FORCE: 3 LBS.

3. MAX ALLOWABLE BOW AFTER ASSEMBLY: .003 [.08] INCH/INCH

4. HEIGHT VARIATION BETWEEN PINS SHALL BE .005 [.13] MAX

5. BANDOLIER AREA TO BE POSITIONSED ABOUT OR TOWARDS

STANDOFF SIDE OF BODY. ENTIRE BANDOLIER AREA MUST

NOT BE LOCATED IN THIS AREA.

6. MAX CUT FLASH: .020 [.51]

-RA

-02 & -04 ONLY

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

1

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

INSULATOR: PBT, UL 94 VO

COLOR: BLACK

DO NOT SCALE DRAWING

SHEET SCALE: 1.5:1

.045 SQ POST ASSEMBLY

TERMINAL: PIN STYLES -01 THRU -05: PHOS BRONZE

PIN STYLE -11: CDA 7025

C:\EnterpriseVault\DWG\MISC\MKTG\FWJ-XX-XX-TX-S-XX-MKT.SLDDRW

FWJ-XX-XX-TX-S-XX

SHEET

1

OF

1

BY:

DEAN PURVIS 2-19-86
