A-DD-09-B-4

Description
conn D-sub stacked F/F 9pos R/A
CategoryThe connector
File Size196KB,1 Pages
ManufacturerASSMANN WSW components
Environmental Compliance
Download Datasheet Parametric View All

A-DD-09-B-4 Overview

conn D-sub stacked F/F 9pos R/A

A-DD-09-B-4 Parametric

Parameter NameAttribute value

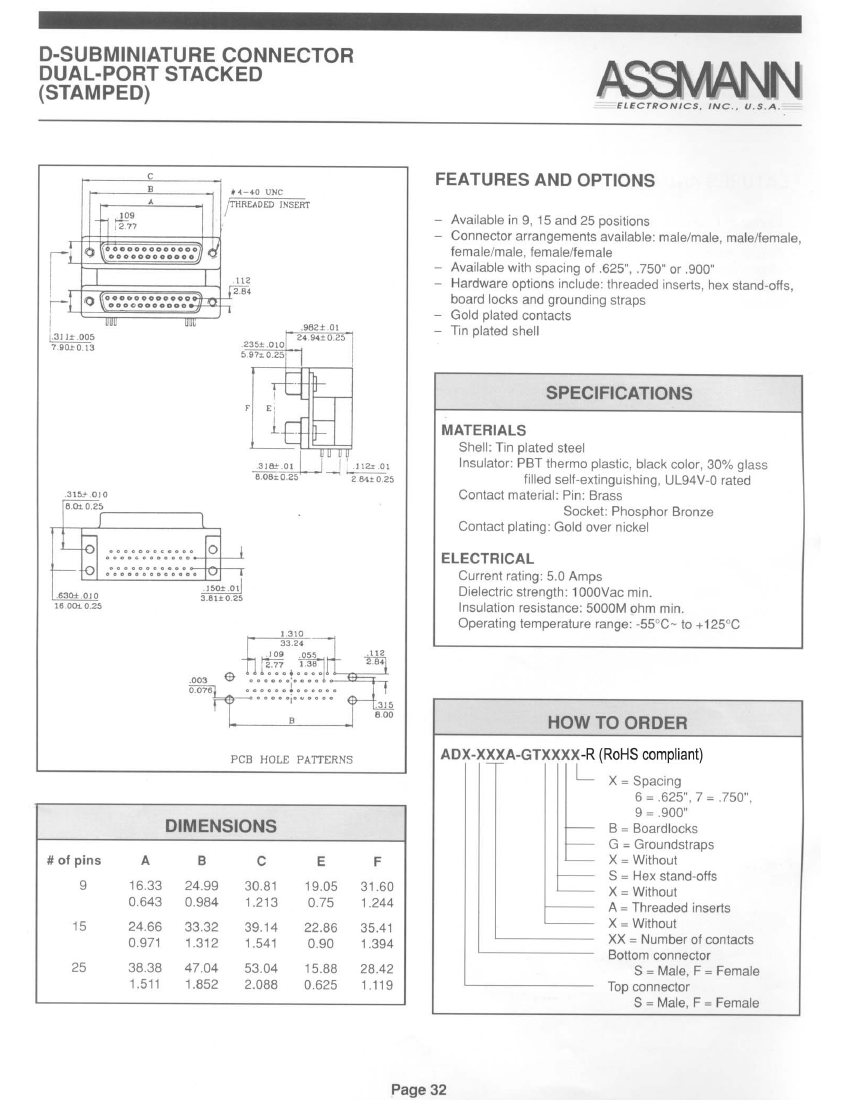

Datasheets
ADz-zzzA-GTzzzz-R
Product Photos
A-DD-09-B-4
Standard Package36
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
PackagingTray
Connector StyleD-Sub - Stacked
Connector TypeReceptacle, Female Sockets
Number of Positions9, 9
Number of Rows2, 2
Shell Size, Connector Layou1 (DE, E)
1 (DE, E)
Contact TypeSignal
Mounting TypeThrough Hole, Right Angle
Flange FeatureHousing/Shell (4-40)
TerminatiSolde
FeaturesBoard Lock
Shell Material, FinishSteel, Tin Plated
Contact FinishGold
Contact Finish Thickness-
Ingress Protecti-
Operating Temperature-55°C ~ 125°C
Voltage Rating-
Current Rating5A
Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled
ColBlack
Dynamic CatalogADx-x Series
Mating ProductsAE10972-ND - CONN D-SUB 9POS MALE SOLDERHMU09H-ND - CONN DB9 MALE AU SHELL LO PROHMM09H-ND - CONN DB9 MALE METAL SHELL GOLD
Other NamesADF-F09A-GTAXB7-RADF-F09A-GTAXB7-R-NDAE10960
