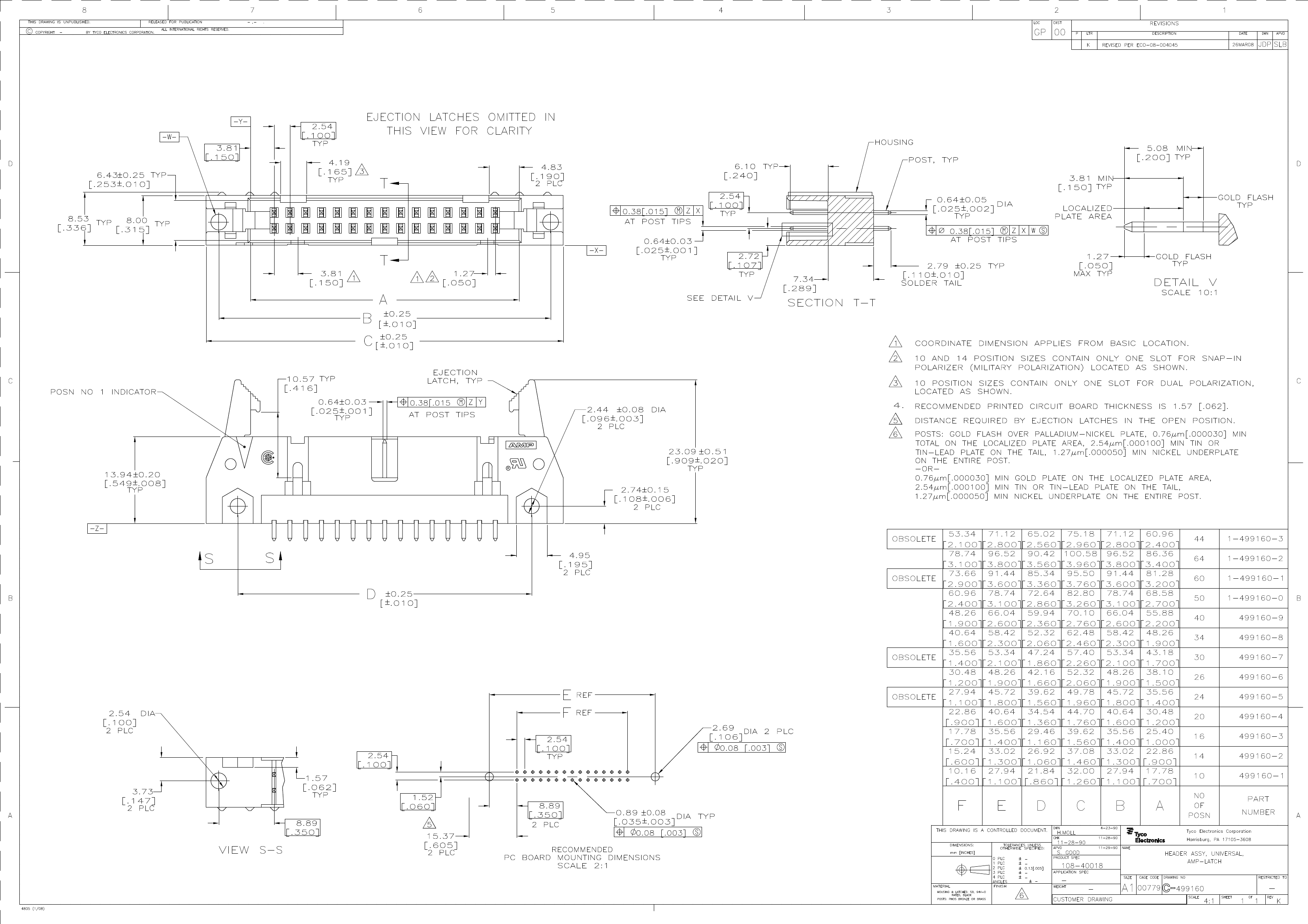

499160-8 |
10118615-108009 |
499160-4 |
| Description |
034 UNIV HDR SP 4S 30DP STD L2 |
Board Connector |
020 UNIV HDR SP 4S 30DP STD L2 |
| Is it lead-free? |
Contains lead |
Contains lead |
Contains lead |
| Is it Rohs certified? |
incompatible |
incompatible |
incompatible |
| Reach Compliance Code |
compliant |
compliant |
not_compliant |
| ECCN code |
EAR99 |
EAR99 |
EAR99 |
| Other features |
AMP-LATCH, LATCHED |
STANDARDS: ASTM; UL |
AMP-LATCH, LATCHED |
| body width |
0.336 inch |
0.095 inch |
0.336 inch |
| subject depth |
0.549 inch |
0.1 inch |
0.549 inch |
| body length |
2.46 inch |
0.8 inch |
1.76 inch |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
GOLD (30) OVER NICKEL (50)/NICKEL PALLADIUM GOLD (30) OVER NICKEL (50) |
NOT SPECIFIED |
| Contact completed and terminated |
Tin/Lead (Sn/Pb) |
GOLD (30) OVER NICKEL (50)/NICKEL PALLADIUM GOLD (30) OVER NICKEL (50) |
TIN LEAD |
| Contact point gender |
MALE |
MALE |
MALE |
| Contact material |
NOT SPECIFIED |
COPPER ALLOY |
NOT SPECIFIED |
| contact mode |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| Contact style |
SQ PIN-SKT |
SQ PIN-SKT |
SQ PIN-SKT |
| Dielectric withstand voltage |
1000VAC V |
1500VDC V |
1000VAC V |
| Filter function |
NO |
NO |
NO |
| Insulation resistance |
1000000000 Ω |
5000000000 Ω |
1000000000 Ω |
| Insulator color |
BLACK |
BLACK |
BLACK |
| insulator material |
GLASS FILLED THERMOPLASTIC |
POLYETHYLENE |
THERMOPLASTIC |
| JESD-609 code |
e0 |
e4 |
e0 |
| Mixed contacts |
NO |
NO |
NO |
| Installation option 1 |
LATCH & EJECT |
LOCKING |
LATCH & EJECT |
| Installation method |
STRAIGHT |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
ONE |
| PCB row number |
2 |
1 |
2 |
| Number of rows loaded |
2 |
1 |
2 |
| Maximum operating temperature |
105 °C |
130 °C |
105 °C |
| Minimum operating temperature |
-65 °C |
-65 °C |
-65 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| Plating thickness |
30u inch |
30u inch |
30u inch |
| Rated current (signal) |
1 A |
3 A |
1 A |
| Guideline |
UL |
ANSI/ASQC |
UL |
| Terminal length |
0.11 inch |
0.095 inch |
0.11 inch |
| Termination type |
SOLDER |
SOLDER |
SOLDER |
| Total number of contacts |
34 |
1 |
20 |
| UL Flammability Code |
94V-0 |
94V-0 |
94V-0 |
| Brand Name |
AMP |
- |
AMP |
| Maker |
TE Connectivity |
- |
TE Connectivity |
| Factory Lead Time |
21 weeks |
- |
24 weeks |
| Board mount options |
HOLE .099-.111 |
- |
HOLE .099-.111 |
| Body/casing type |
RECEPTACLE |
- |
RECEPTACLE |
| DIN compliance |
NO |
- |
NO |
| IEC compliance |
NO |
- |
NO |
| MIL compliance |
NO |
- |
NO |
| Manufacturer's serial number |
499160 |
- |
499160 |
| Plug contact pitch |
0.1 inch |
- |
0.1 inch |
| Match contact row spacing |
0.1 inch |
- |
0.1 inch |
| Plug information |
MULTIPLE MATING PARTS AVAILABLE |
- |
MULTIPLE MATING PARTS AVAILABLE |
| Installation option 2 |
LOCKING |
- |
LOCKING |
| PCB contact row spacing |
2.54 mm |
- |
2.54 mm |
| polarization key |
POLARIZED HOUSING |
- |
POLARIZED HOUSING |
| reliability |
COMMERCIAL |
- |
COMMERCIAL |
| Terminal pitch |
2.54 mm |
- |
2.54 mm |
| Base Number Matches |
1 |
- |
1 |
