5670H7;7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5670H7;7

Preview

5670H7;7: DescriptionSingle Color LED Array, Yellow, Diffused, T-1 3/4, 5mm, 4 PIN; CategoryLED optoelectronic/LED photoelectric; File Size119KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com

Download Datasheet Parametric View All

5670H7;7 Overview

Single Color LED Array, Yellow, Diffused, T-1 3/4, 5mm, 4 PIN

5670H7;7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
package instruction	4 PIN
Reach Compliance Code	unknow
color	YELLOW
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Maximum forward current	0.035 A
Lens type	DIFFUSED
Nominal luminous intensity	6.3 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	12.7 mm
method of packing	BULK
peak wavelength	585 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	50 deg
Base Number Matches	1

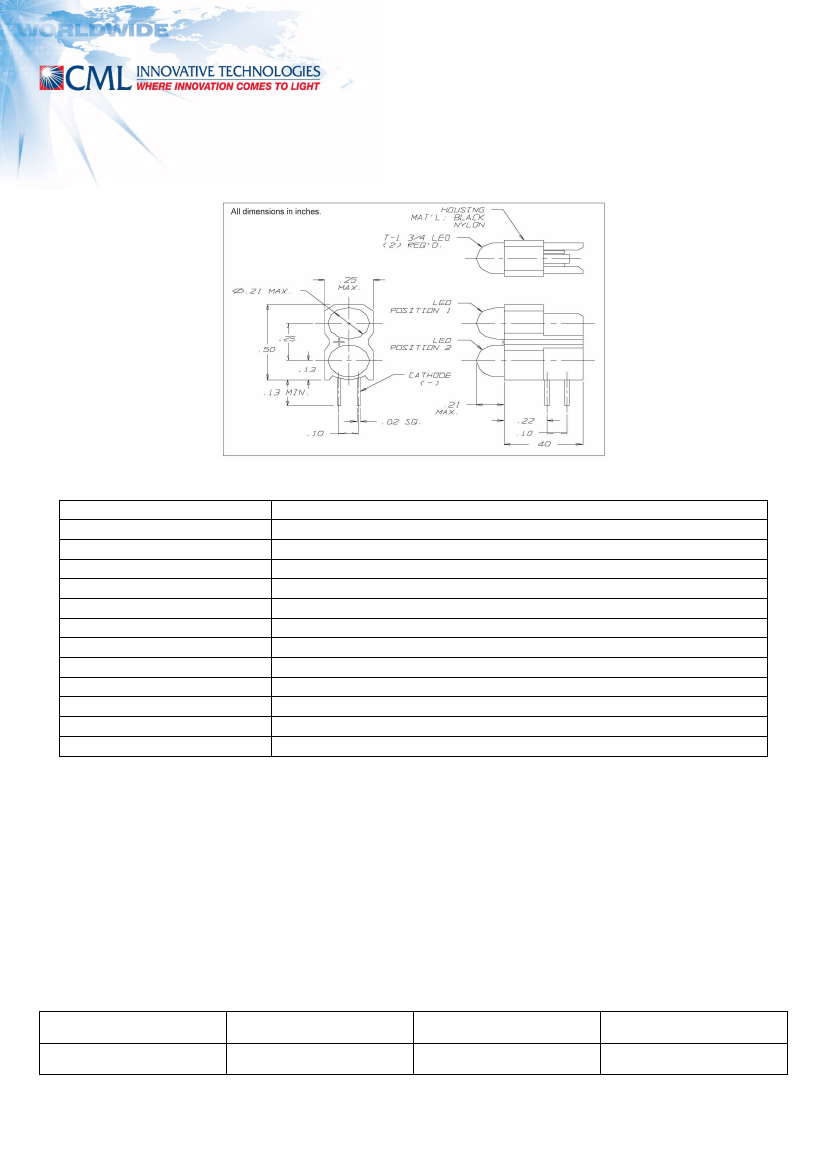

Preview

Download Datasheet

View All

Part Number : 5670H7;7

Serial Number : 5670H

Circuit Board Indicators

Emitted color

Lens color

Lum in min (mcd)

Lum in type (mcd)

Rated current (mA)

Cont forward current max

Fwd volts type

Forward volt max.

Reverse breakdown V

Viewing angle (°)

Peak Wave Lenght (mA)

Housing type

ROHS Status

Yellow

2,2

6.3

10.0

60

2,1

3

50

585

UL94V-0

Yes

Drawn : VG

Revision :

Ch'd : VG

Revision date : 2006-03-06

Datasheet : 5670H

Name : VG

Print date : 24/10/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
