The data output functions may be enabled or disabled by various signals at the G and DIR inputs. Data input functions are always enabled; i.e., data at the
bus pins will be stored on every LOW-to-HIGH transition of the appropriate clock inputs.
3
www.national.com

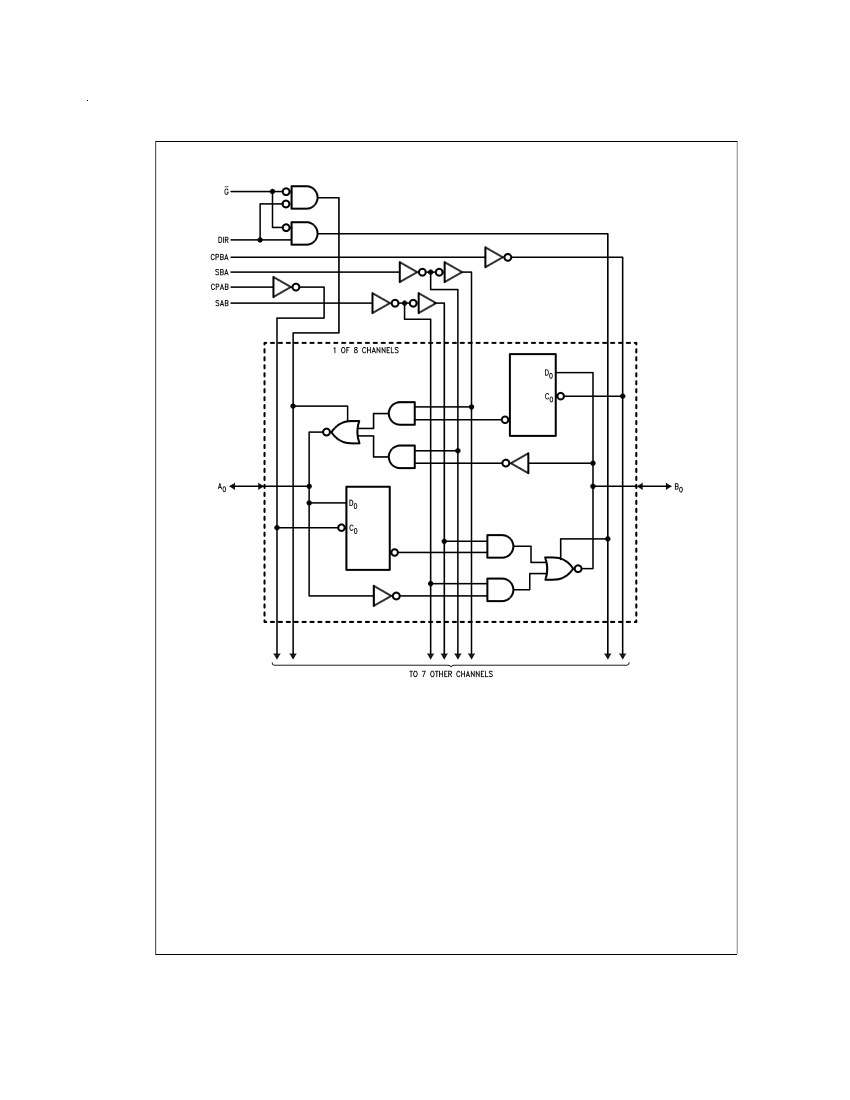

Logic Diagram
DS100231-5
Please note that this diagram is provided only for the understanding of logic operations and should not be used to estimate propagation delays.
www.national.com
4
Absolute Maximum Ratings
(Note 2)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (V
CC
)
DC Input Diode Current (I
IK
)
V
I
= −0.5V
V
I
= V
CC
+ 0.5V
DC Input Voltage (V
I
)
DC Output Diode Current (I
OK
)
V
O
= −0.5V
V
O
= V
CC
+ 0.5V
DC Output Voltage (V
O
)
DC Output Source
or Sink Current (I
O
)
DC V
CC
or Ground Current
per Output Pin (I
CC
or I
GND
)
Storage Temperature (T
STG
)
−0.5V to +7.0V
−20 mA
+20 mA
−0.5V to V
CC
+ 0.5V
−20 mA
+20 mA
−0.5V to V
CC
+ 0.5V
Junction Temperature (T
J
)
CDIP
175˚C
Recommended Operating
Conditions
Supply Voltage (V
CC
)
’AC
Input Voltage (V
I
)
Output Voltage (V
O
)
Operating Temperature (T
A
)
54AC
Minimum Input Edge Rate (∆V/∆t)
’AC Devices
V
IN
from 30% to 70% of V
CC
V
CC
@
3.3V, 4.5V, 5.5V
2.0V to 6.0V
0V to V
CC
0V to V
CC
−55˚C to +125˚C
±
50 mA
±
50 mA
−65˚C to +150˚C
125 mV/ns
Note 2:
Absolute maximum ratings are those values beyond which damage
to the device may occur. The databook specifications should be met, without
exception, to ensure that the system design is reliable over its power supply,
temperature, and output/input loading variables. National does not recom-
