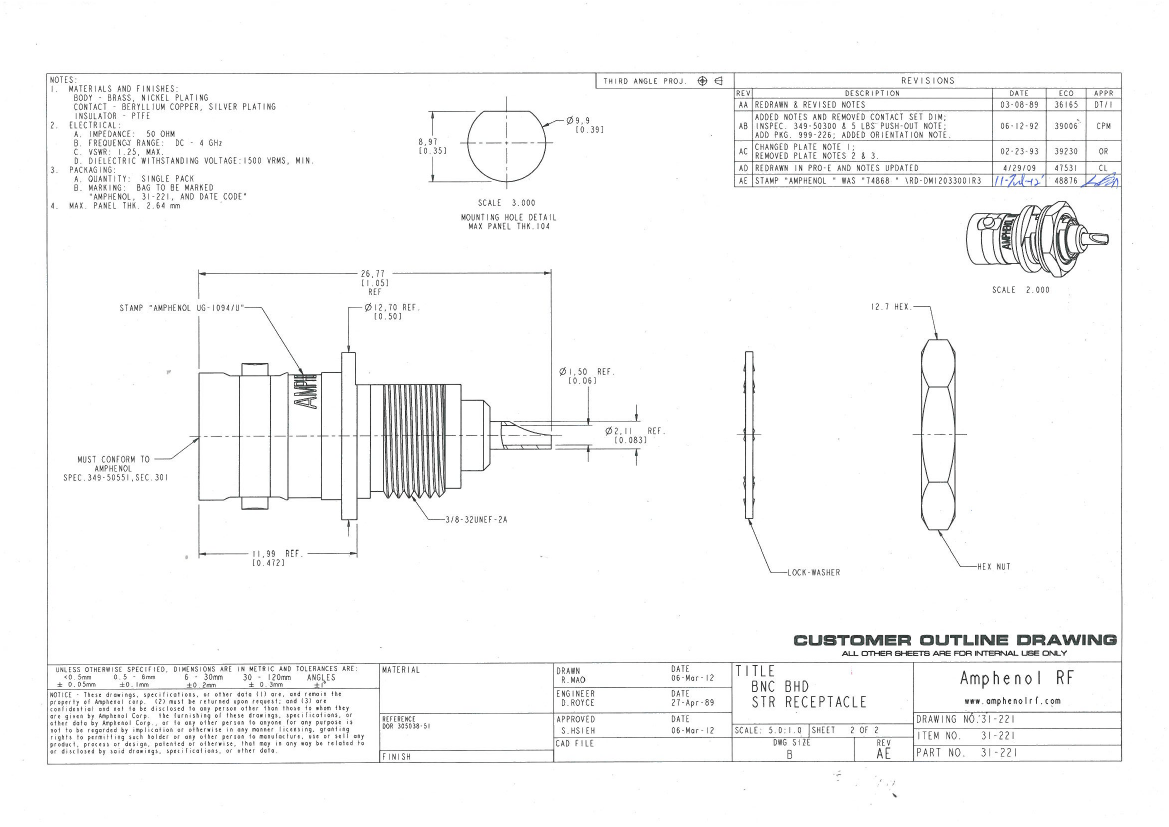

Preview

31-238: DescriptionRF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size315KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31-238 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-238	-	-	View	Buy Now

31-238 Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Receptacle

31-238 Parametric

Parameter Name	Attribute value
Objectid	1477773560
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
YTEOL	7.76
Other features	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 3 GHZ
subject depth	0.515 inch
Body/casing type	RECEPTACLE
Cable type	UG-912/U
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUOROETHYLENE
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	HERMETIC
Panel mounting	YES
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

31-238 Related Products

	31-238	031-239	31-236	031-4238	031-4890-1	031-4237	000-5575
Description	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Locking, Receptacle	conn bnc jack str 50 ohm solder	conn bnc jack str 50 ohm solder	conn bnc jack str 50 ohm solder	conn bnc jack str 50 ohm solder	conn bnc jack str 50 ohm solder	conn bnc jack str solder
Standard Package	-	100	-	1	1	1	100
Category	-	Connectors, Interconnects	-	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	-	Coaxial Connectors (RF)	-	Coaxial Connectors (RF)	Coaxial Connectors (RF)	Coaxial Connectors (RF)	Coaxial Connectors (RF)
Packaging	-	Bulk	-	Bulk	Bulk	Bulk	Bulk
Connector Style	-	BNC	-	BNC	BNC	BNC	BNC
Connector Type	-	Jack, Female Socke	-	Jack, Female Socke	Jack, Female Socke	Jack, Female Socke	Jack, Female Socke
Contact Terminati	-	Solder Cu	-	Solder Eyele	Solder Cu	Solder Eyele	Solder Cu
Shield Terminati	-	Solde	-	Solde	Solde	Solde	Solde
Impedance	-	50 Ohm	-	50 Ohm	50 Ohm	50 Ohm	50 Ohm
Mounting Type	-	Panel Mount, Bulkhead - Rear Side Nu	-	Panel Mount, Bulkhead - Rear Side Nu	Panel Mount, Bulkhead - Rear Side Nu	Panel Mount, Bulkhead - Front Side Nu	Panel Mount, Bulkhead - Rear Side Nu
Fastening Type	-	Bayonet Lock	-	Bayonet Lock	Bayonet Lock	Bayonet Lock	Bayonet Lock
Frequency - Max	-	4GHz	-	4GHz	4GHz	4GHz	-
Housing Col	-	Silve	-	Silve	Silve	Silve	Silve
Body Material	-	Brass	-	Brass	Brass	Brass	Brass
Body Finish	-	Nickel	-	Silve	Silve	Silve	Nickel
Center Contact Material	-	Beryllium Copper, Brass	-	Beryllium Coppe	Beryllium Coppe	Brass	Beryllium Coppe
Center Contact Plating	-	Silve	-	Gold	Silve	Gold	Silve
Dielectric Material	-	Polytetrafluoroethylene (PTFE)	-	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Voltage Rating	-	500V	-	500V	500V	500V	500V
Operating Temperature	-	-65°C ~ 165°C	-	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C	-
Dynamic Catalog	-	BNC Connectors	-	BNC Connectors	BNC Connectors	BNC Connectors	BNC Connectors
Associated Produc	-	ARF1781-ND - CONN CAP CVR SHORT FOR BNC JACKARF1695-ND - CONN CAP (COVER) FOR BNC JACKSARF1663-ND - CONN CAP CVR SHORT FOR BNC JACK	-	ARF1781-ND - CONN CAP CVR SHORT FOR BNC JACKARF1695-ND - CONN CAP (COVER) FOR BNC JACKSARF1663-ND - CONN CAP CVR SHORT FOR BNC JACKARF1067-ND - CONN GROUNDING LUG FOR BNC JACKS	ARF1781-ND - CONN CAP CVR SHORT FOR BNC JACKARF1695-ND - CONN CAP (COVER) FOR BNC JACKSARF1663-ND - CONN CAP CVR SHORT FOR BNC JACKARF1067-ND - CONN GROUNDING LUG FOR BNC JACKS	ARF1781-ND - CONN CAP CVR SHORT FOR BNC JACKARF1695-ND - CONN CAP (COVER) FOR BNC JACKSARF1663-ND - CONN CAP CVR SHORT FOR BNC JACK	ARF1781-ND - CONN CAP CVR SHORT FOR BNC JACKARF1695-ND - CONN CAP (COVER) FOR BNC JACKSARF1663-ND - CONN CAP CVR SHORT FOR BNC JACK
Other Names	-	31-23931239ARF1824UG-657A/U	-	31-4238314238ARF1856	31-4890-13148901ARF1855	31-4237314237ARF1678	5575ARF1890UG-625/U
