3-1241965-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-1241965-2

3-1241965-2: DescriptionSTD TIMER HOUSING; CategoryThe connector; File Size874KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1241965-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1241965-2	-	-	View	Buy Now

3-1241965-2 Overview

STD TIMER HOUSING

3-1241965-2 Parametric

Parameter Name	Attribute value
Connector System	wire to board
Sealable	no
Connectors and terminals terminate to	Wires and cables
Glow Wire Ratings	glow wire
stress relief	Without
Connector type	jacket
Connector type	female end
Number of Positions	2
Rows	1
Key rib number (between or at)	2d
color	blue
Cable termination method	crimp
PCB installation and fixation	Without
Mating connector latch type	latch, latch
Panel mount features	Without
Engage connector latch	with
joint fixation	with
Joint fixation type	lock, lock
Connector mounting type	Cable installation
joint alignment	with
Lock type	latch
Number of cavities between lock pins	1&2
Joint alignment type	keying
Polarization rib position	1b,2a,2b
Lock type	external
Centerline (Pitch)	5 mm [ .197 in ]
Housing configuration	closed at both ends
Shell material	nylon
Shell color	blue
length	25.5 mm [ 1 in ]
high	13.9 mm [ .547 in ]
Working group temperature range	-40 – 105 °C [ -40 – 221 °F ]
Circuit Application	Power and Signal
UL flammability rating	UL 94V-2
RAST version	02-G
Encapsulation method	bag
Package quantity	6000

Preview

Download Datasheet

View All

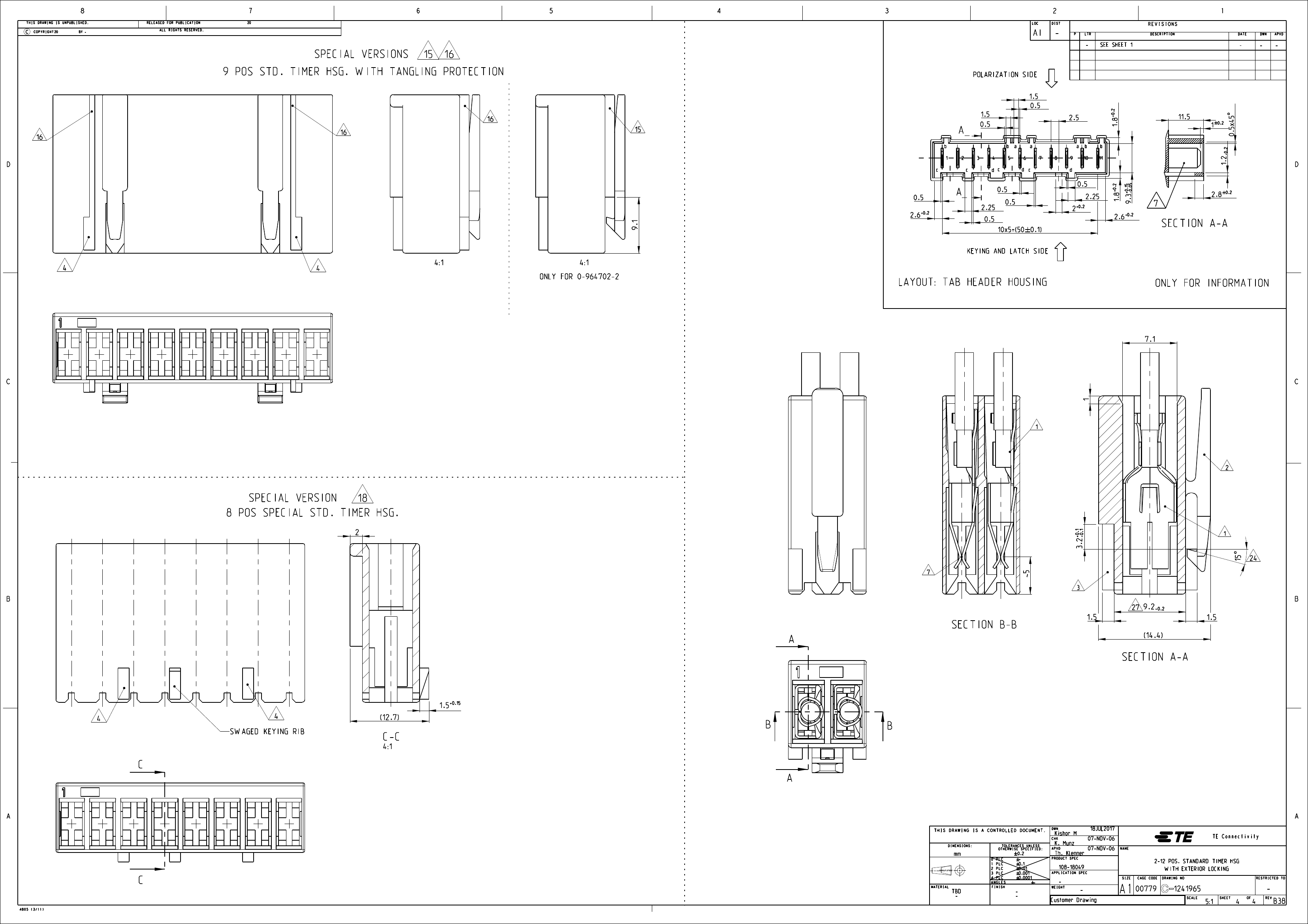

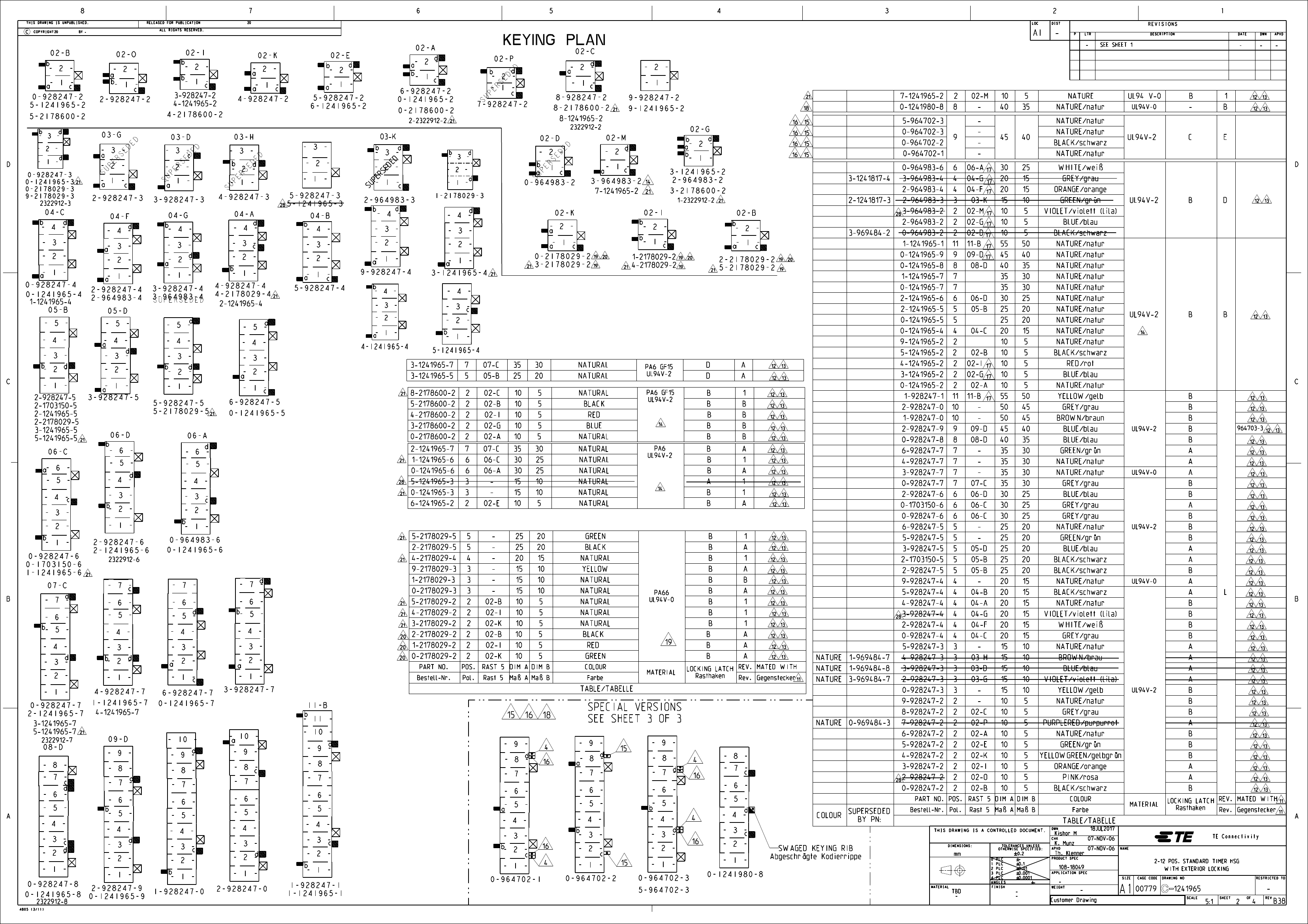

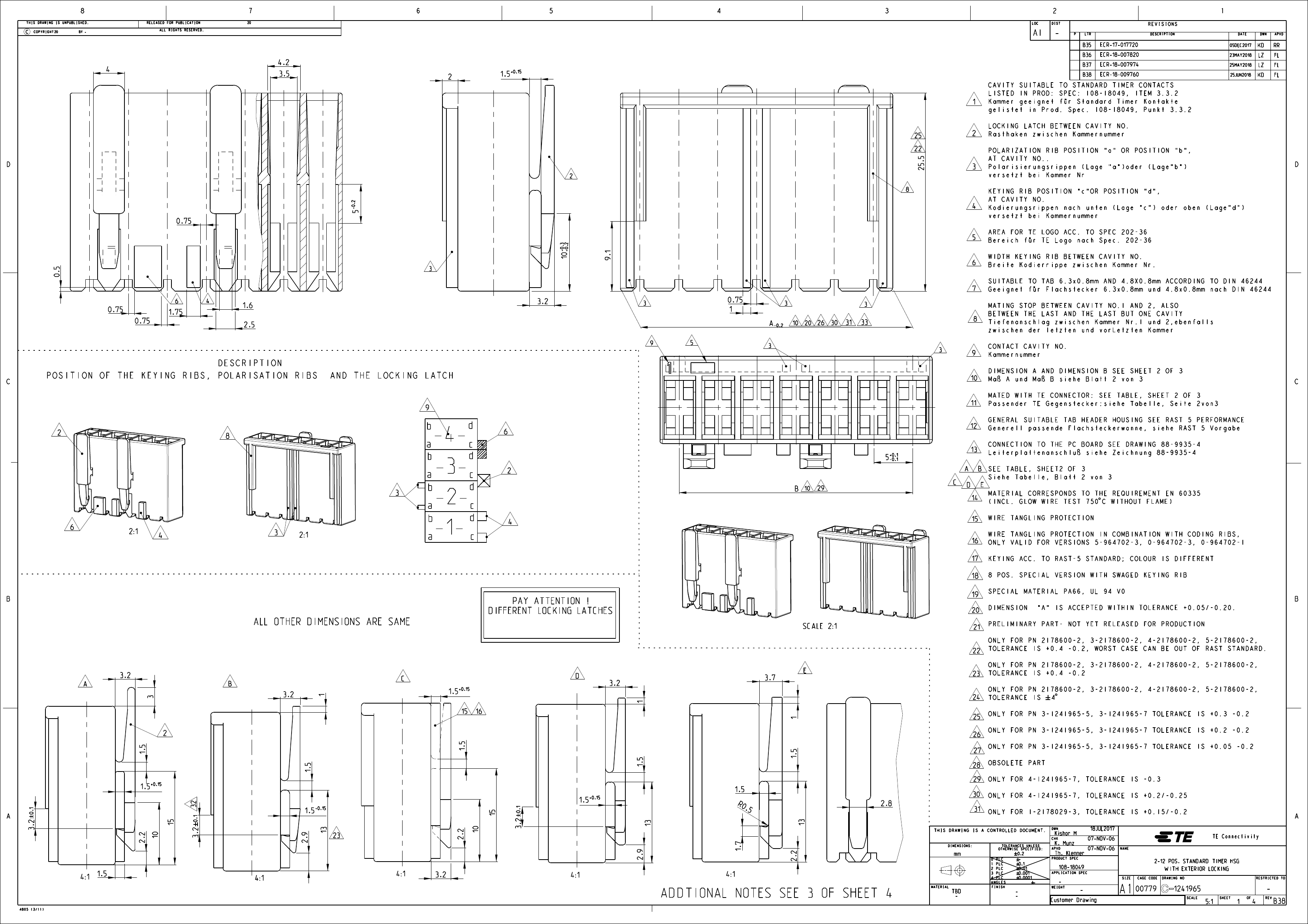

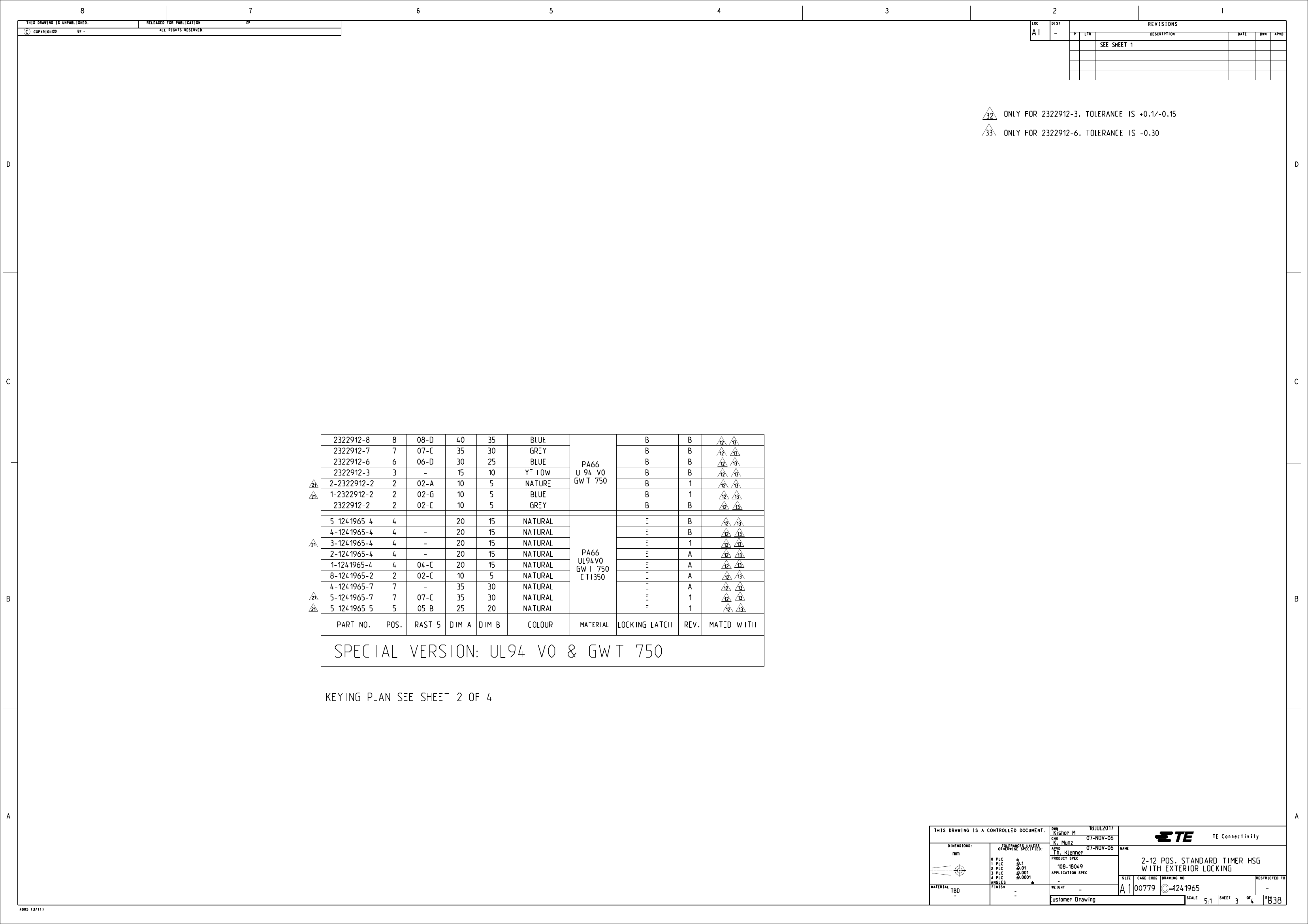

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

4.2

B35

B36

B37

B38

ECR-17-017720

ECR-18-007820

ECR-18-007974

ECR-18-009760

05DEC2017

23MAY2018

25MAY2018

25JUN2018

3.5

+0.15

1.5

CAVITY SUITABLE TO STANDARD TIMER CONTACTS

LISTED IN PROD: SPEC: 108-18049, ITEM 3.3.2

Kammer geeignet für Standard Timer Kontakte

gelistet in Prod. Spec. 108-18049, Punkt 3.3.2

LOCKING LATCH BETWEEN CAVITY NO.

Rasthaken zwischen Kammernummer

POLARIZATION RIB POSITION "a" OR POSITION "b",

AT CAVITY NO..

Polarisierungsrippen (Lage "a")oder (Lage"b")

versetzt bei Kammer Nr

KEYING RIB POSITION "c"OR POSITION "d",

AT CAVITY NO.

Kodierungsrippen nach unten (Lage "c") oder oben (Lage"d")

versetzt bei Kammernummer

AREA FOR TE LOGO ACC. TO SPEC 202-36

Bereich für TE Logo nach Spec. 202-36

WIDTH KEYING RIB BETWEEN CAVITY NO.

Breite Kodierrippe zwischen Kammer Nr.

SUITABLE TO TAB 6.3x0.8mm AND 4.8X0.8mm ACCORDING TO DIN 46244

Geeignet für Flachstecker 6.3x0.8mm und 4.8x0.8mm nach DIN 46244

MATING STOP BETWEEN CAVITY NO.1 AND 2, ALSO

BETWEEN THE LAST AND THE LAST BUT ONE CAVITY

Tiefenanschlag zwischen Kammer Nr.1 und 2,ebenfalls

zwischen der letzten und vorLetzten Kammer

CONTACT CAVITY NO.

Kammernummer

DIMENSION A AND DIMENSION B SEE SHEET 2 OF 3

Maß A und Maß B siehe Blatt 2 von 3

MATED WITH TE CONNECTOR: SEE TABLE, SHEET 2 OF 3

Passender TE Gegenstecker:siehe Tabelle, Seite 2von3

GENERAL SUITABLE TAB HEADER HOUSING SEE RAST 5 PERFORMANCE

Generell passende Flachsteckerwanne, siehe RAST 5 Vorgabe

CONNECTION TO THE PC BOARD SEE DRAWING 88-9935-4

Leiterplattenanschluß siehe Zeichnung 88-9935-4

Siehe Tabelle, Blatt 2 von 3

MATERIAL CORRESPONDS TO THE REQUIREMENT EN 60335

(INCL. GLOW WIRE TEST 750 $ C WITHOUT FLAME)

WIRE TANGLING PROTECTION

WIRE TANGLING PROTECTION IN COMBINATION WITH CODING RIBS,

ONLY VALID FOR VERSIONS 5-964702-3, 0-964702-3, 0-964702-1

KEYING ACC. TO RAST-5 STANDARD; COLOUR IS DIFFERENT

8 POS. SPECIAL VERSION WITH SWAGED KEYING RIB

SPECIAL MATERIAL PA66, UL 94 V0

DIMENSION

"A" IS ACCEPTED WITHIN TOLERANCE +0.05/-0.20.

25.5

+0.2

0.75

+0.3

-0.2

9.1

0.5

10 20

0.75

1.75

1.6

2.5

3.2

0.75

-0.2

POSITION OF THE KEYING RIBS, POLARISATION RIBS

DESCRIPTION

AND THE LOCKING LATCH

-4-

+0.1

-0.1

-3-

SEE TABLE, SHEET2 OF 3

2:1

-1-

-2-

ALL OTHER DIMENSIONS ARE SAME

PAY ATTENTION !

DIFFERENT LOCKING LATCHES

SCALE 2:1

PRELIMINARY PART- NOT YET RELEASED FOR PRODUCTION

ONLY FOR PN 2178600-2, 3-2178600-2, 4-2178600-2, 5-2178600-2,

TOLERANCE IS +0.4 -0.2, WORST CASE CAN BE OUT OF RAST STANDARD.

ONLY FOR PN 2178600-2, 3-2178600-2, 4-2178600-2, 5-2178600-2,

TOLERANCE IS +0.4 -0.2

ONLY FOR PN 2178600-2, 3-2178600-2, 4-2178600-2, 5-2178600-2,

TOLERANCE IS # 4 $

3.2

+0.15

1.5

15 16

3.2

3.7

ONLY FOR PN 3-1241965-5, 3-1241965-7 TOLERANCE IS +0.3 -0.2

ONLY FOR PN 3-1241965-5, 3-1241965-7 TOLERANCE IS +0.2 -0.2

ONLY FOR PN 3-1241965-5, 3-1241965-7 TOLERANCE IS +0.05 -0.2

OBSOLETE PART

1.5

0.1

+0.15

1.5

ONLY FOR 4-1241965-7, TOLERANCE IS -0.3

3.2

0.1

1.5

2.9

+0.15

0.1

2.8

ONLY FOR 4-1241965-7, TOLERANCE IS +0.2/-0.25

ONLY FOR 1-2178029-3, TOLERANCE IS +0.15/-0.2

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

TE Connectivity

2.2

1.7

Kishor M

K. Munz

18JUL2017

07-NOV-06

NAME

2.9

2.2

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

4:1

1.5

4:1

3.2

4:1

ADDTIONAL NOTES SEE 3 OF SHEET 4

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.1

0.01

0.001

0.0001

PRODUCT SPEC

07-NOV-06

Th. Klenner

108-18049

2-12 POS. STANDARD TIMER HSG

WITH EXTERIOR LOCKING

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

APPLICATION SPEC

TBD

WEIGHT

Customer Drawing

00779

1241965

SCALE

4805 (3/11)

5:1

SHEET

REV

B38

3-1241965-2 Related Products

	3-1241965-2	2178029-2	1-2178029-2	4-1241965-2	2178029-3	2-2178029-2	1241965-2	2-1241965-7
Description	STD TIMER HOUSING	2P ST-TIMER GREEN, V0	2P ST-TIMER RED, V0	STD TIMER HOUSING	3P ST-TIMER GEH V0	Combination Line Connector, 2 Contact(s), Male, Crimp Terminal, Receptacle	STD TIMER HOUSING 2POS	7P ST-TIMER GEH
Connector System	wire to board	line to line	line to line	wire to board	line to line	-	wire to board	wire to board
Sealable	no	no	no	no	no	-	no	no
Connectors and terminals terminate to	Wires and cables	Wires and cables	Wires and cables	Wires and cables	Wires and cables	-	Wires and cables	Wires and cables
Connector type	female end	female end	female end	female end	female end	COMBINATION LINE CONNECTOR	female end	female end
Number of Positions	2	2	2	2	3	-	2	7
Rows	1	1	1	1	1	-	1	1
Key rib number (between or at)	2d	1c	1c	1c	1d,3d	-	1c,2d	3d,7d
color	blue	green	red	Khaki	Khaki	-	Khaki	Khaki
Cable termination method	crimp	crimp	crimp	crimp	crimp	-	crimp	crimp
joint fixation	with	with	with	with	with	-	with	with
Joint fixation type	lock, lock	lock, lock	lock, lock	lock, lock	lock, lock	-	lock, lock	lock, lock
Connector mounting type	Cable installation	Cable installation	Cable installation	Cable installation	Cable installation	-	Cable installation	Cable installation
joint alignment	with	with	with	with	with	-	with	with
Lock type	external	external	external	external	external	-	external	external
Number of cavities between lock pins	1&2	1&2	1&2	1&2	2&3	-	1&2	1&2, 6&7
Joint alignment type	keying	keying	keying	keying	keying	-	keying	keying
Polarization rib position	1b,2a,2b	1a,2	1b,2b	1b,2b	3b	-	1b,2	2b
Centerline (Pitch)	5 mm [ .197 in ]	5 mm [ .197 in ]	5 mm [ .197 in ]	5 mm [ .197 in ]	5 mm [ .197 in ]	-	5 mm [ .197 in ]	5 mm [ .197 in ]
Shell material	nylon	PA 66	PA 66	nylon	PA 66	-	nylon	PA 6
Shell color	blue	green	red	red	nature	-	nature	nature
length	25.5 mm [ 1 in ]	10 mm [ .393 in ]	10 mm [ .393 in ]	25.5 mm [ 1 in ]	15 mm [ .59 in ]	-	25.5 mm [ 1 in ]	25.5 mm [ 1 in ]
high	13.9 mm [ .547 in ]	25.5 mm [ 1 in ]	25.5 mm [ 1 in ]	13.9 mm [ .547 in ]	25.5 mm [ 1 in ]	-	13.9 mm [ .547 in ]	13.9 mm [ .547 in ]
Working group temperature range	-40 – 105 °C [ -40 – 221 °F ]	-40 – 105 °C [ -40 – 221 °F ]	-40 – 105 °C [ -40 – 221 °F ]	-40 – 105 °C [ -40 – 221 °F ]	-40 – 105 °C [ -40 – 221 °F ]	-	-40 – 105 °C [ -40 – 221 °F ]	-40 – 105 °C [ -40 – 221 °F ]
Circuit Application	Power and Signal	Power and Signal	Power and Signal	Power and Signal	Power and Signal	-	Power and Signal	Power and Signal
RAST version	02-G	02-K	02-I	02-I	none	-	02-A	07-C
Encapsulation method	bag	Package	Package	box	carton	-	box	bag
Package quantity	6000	6000	6000	6000	4000	-	6000	1500
