338068-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 338068-6

338068-6: DescriptionMICRO-MATCH FTE, 6P; CategoryThe connector The connector; File Size330KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

338068-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	338068-6	-	-	View	Buy Now

338068-6 Overview

MICRO-MATCH FTE, 6P

338068-6 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	11 weeks
Other features	LATCHED, POLARIZED, STAGGERED CONFIGURATION
body width	0.204 inch
subject depth	0.157 inch
body length	0.48 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	338068
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	2

Preview

Download Datasheet

View All

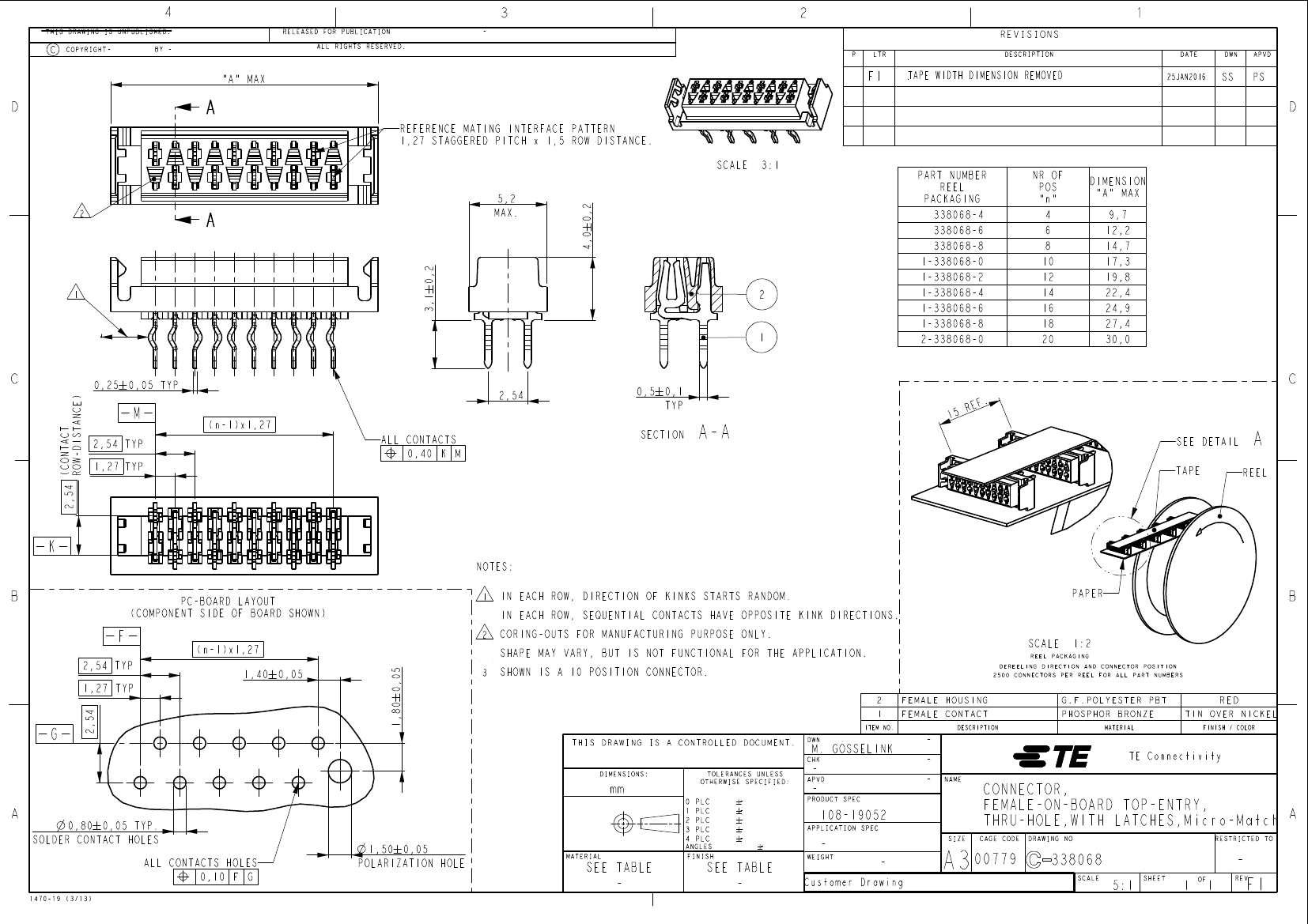

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

BY -

"A" MAX

TAPE WIDTH DIMENSION REMOVED

25JAN2016

REFERENCE MATING INTERFACE PATTERN

1,27 STAGGERED PITCH x 1,5 ROW DISTANCE.

SCALE

4,0 # 0,2

5,2

MAX.

3:1

PART NUMBER

REEL

PACKAGING

338068-4

338068-6

1-338068-0

1-338068-2

1-338068-4

1-338068-6

1-338068-8

2-338068-0

338068-8

NR OF

POS

"n"

DIMENSION

"A" MAX

12,2

14,7

17,3

19,8

22,4

24,9

27,4

30,0

9,7

2,54 (CONTACT

ROW-DISTANCE)

3,1 0,2

0,25 0,05 TYP

2,54 TYP

1,27 TYP

2,54

(n-1)x1,27

0,5 0,1

TYP

SECTION

ALL CONTACTS

0,40 K M

A-A

5 R

SEE DETAIL

TAPE

REEL

PC-BOARD LAYOUT

(COMPONENT SIDE OF BOARD SHOWN)

NOTES:

IN EACH ROW, DIRECTION OF KINKS STARTS RANDOM.

IN EACH ROW, SEQUENTIAL CONTACTS HAVE OPPOSITE KINK DIRECTIONS.

CORING-OUTS FOR MANUFACTURING PURPOSE ONLY.

SHAPE MAY VARY, BUT IS NOT FUNCTIONAL FOR THE APPLICATION.

SHOWN IS A 10 POSITION CONNECTOR.

ITEM NO.

PAPER

2,54 TYP

1,27 TYP

2,54

(n-1)x1,27

1,80 0,05

1,40 0,05

SCALE

REEL PACKAGING

1:2

DEREELING DIRECTION AND CONNECTOR PO SITION

2500 CONNECTORS PER REEL FOR ALL PART NUMBERS

FEMALE HOUSING

FEMALE CONTACT

DESCRIPTION

G.F.POLYESTER PBT

PHOSPHOR BRONZE

MATERIAL

TIN OVER NICKEL

FINISH / COLOR

RED

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

M. GOSSELINK

TE Connectivity

NAME

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

PRODUCT SPEC

0,80 0,05 TYP.

SOLDER CONTACT HOLES

ALL CONTACTS HOLES

0,10 F G

1470-19 (3/13)

1,50 0,05

POLARIZATION HOLE

MATERIAL

ANGLES

PLC

APPLICATION SPEC

108-19052

SIZE

SEE TABLE

FINISH

SEE TABLE

WEIGHT

Customer Drawing

00779

CAGE CODE

CONNECTOR,

FEMALE-ON-BOARD TOP-ENTRY,

THRU-HOLE,WITH LATCHES,Micro-Match

DRAWING NO

RESTRICTED TO

338068

SCALE

5:1

SHEET

REV

338068-6 Related Products

	338068-6	338068-4	437-5326-400	1-338068-4	2-338068-0	1-338068-6	51720-10802804AB	338068-8
Description	MICRO-MATCH FTE, 6P	MICRO-MATCH FTE, 4P	Board Connector	MICRO-MATCH FTE,14P	MICRO-MATCH FTE,20P	MICRO-MATCH FTE,16P	Board Connector, Female, Right Angle, Solder Terminal, Locking, Receptacle	MICRO-MATCH FTE, 8P
Reach Compliance Code	compli	unknow	unknown	compliant	unknow	compliant	compliant	unknow
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Brand Name	AMP	AMP	-	AMP	AMP	AMP	-	AMP
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	incompatible	conform to
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Other features	LATCHED, POLARIZED, STAGGERED CONFIGURATION	LATCHED, POLARIZED, STAGGERED CONFIGURATION	-	LATCHED, POLARIZED, STAGGERED CONFIGURATION	LATCHED, POLARIZED, STAGGERED CONFIGURATION	LATCHED, POLARIZED, STAGGERED CONFIGURATION	-	LATCHED, POLARIZED, STAGGERED CONFIGURATION
body width	0.204 inch	0.205 inch	-	0.205 inch	-	0.205 inch	0.574 inch	-
subject depth	0.157 inch	0.157 inch	-	0.157 inch	-	0.157 inch	0.93 inch	-
body length	0.48 inch	0.382 inch	-	0.882 inch	-	0.98 inch	4.35 inch	-
Body/casing type	PLUG	PLUG	-	PLUG	-	RECEPTACLE	RECEPTACLE	-
Contact to complete cooperation	TIN	TIN	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	-	TIN
Contact completed and terminated	Tin (Sn)	Tin (Sn)	-	Tin (Sn) - with Nickel (Ni) barrier	TIN OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)	Tin (Sn)
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	COPPER ALLOY	PHOSPHOR BRONZE
DIN compliance	NO	NO	-	NO	NO	NO	-	NO
Filter function	NO	NO	-	NO	NO	NO	-	NO
IEC compliance	NO	NO	-	NO	NO	NO	-	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	-	1000000000 Ω	10000000000 Ω	-
JESD-609 code	e3	e3	-	e3	e3	e3	e0	e3
MIL compliance	NO	NO	-	NO	NO	NO	-	NO
Manufacturer's serial number	338068	338068	437	338068	338068	-	51720	-
Mixed contacts	NO	NO	-	NO	NO	NO	YES	NO
Installation option 1	LATCH	LATCH	-	LATCH	-	LATCH	LOCKING	-
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	-	ONE	-	ONE	ONE	-
Number of rows loaded	1	1	-	1	1	1	-	1
Maximum operating temperature	105 °C	105 °C	-	105 °C	-	105 °C	105 °C	-
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-	-40 °C	-20 °C	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-
Terminal pitch	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	4	-	14	20	16	-	8
Base Number Matches	2	2	-	2	2	2	-	1
