3FA1-NMSJ-C04W6

Description
RF Connector, 1 Contact(s), Jack
CategoryThe connector    The connector
File Size194KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

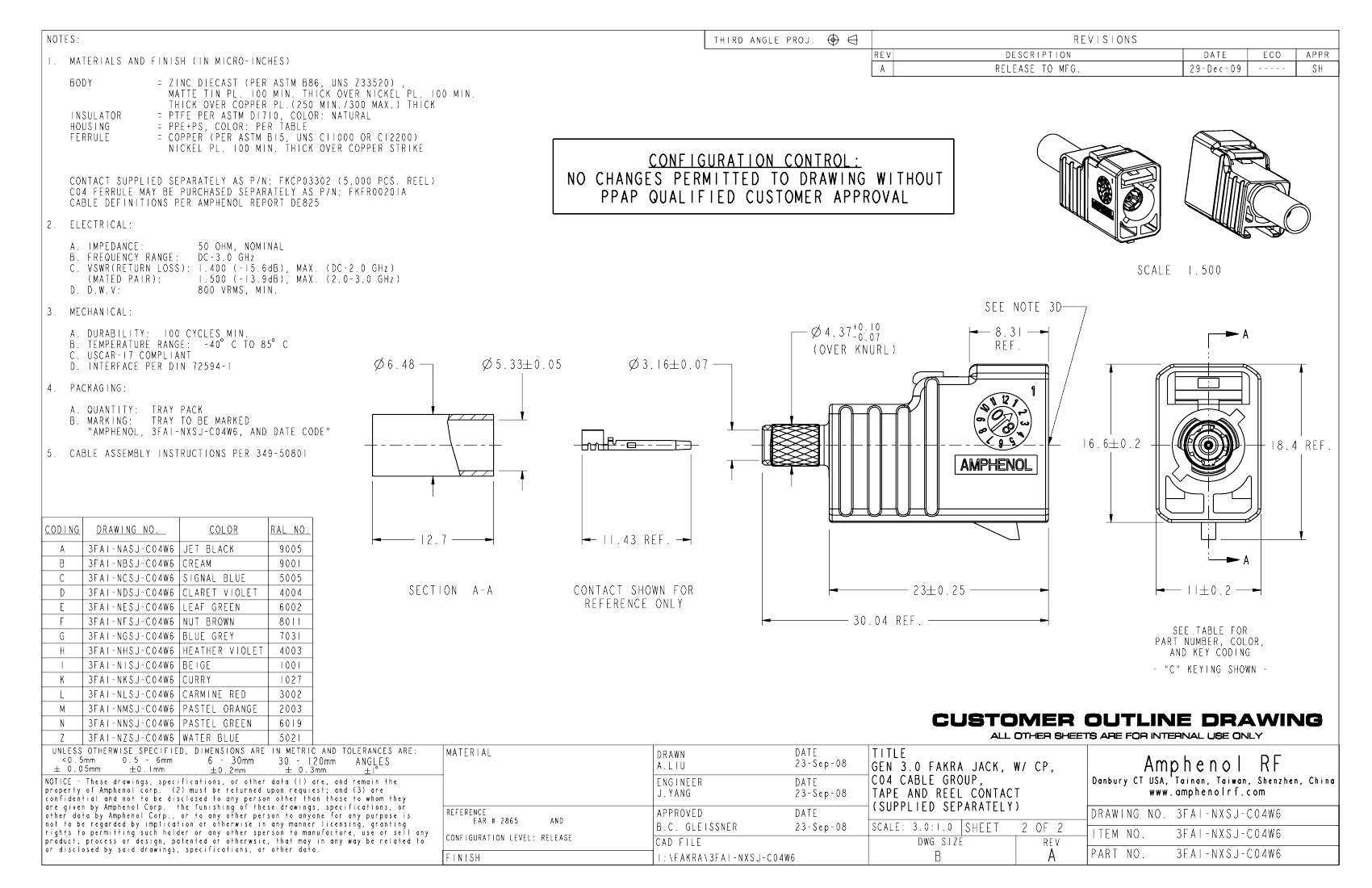

3FA1-NMSJ-C04W6 Overview

RF Connector, 1 Contact(s), Jack

3FA1-NMSJ-C04W6 Parametric

Parameter NameAttribute value
Objectid316132492
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL6.5
body width0.433 inch
subject depth0.906 inch
body length0.654 inch
Body/casing typeJACK
Cable typeRG-58, RG-141
Characteristic impedance50 Ω
Connector typeRF SMB CONNECTOR
Contact point genderFEMALE
Contact styleCOAX
Coupling typeSNAP
Dielectric withstand voltage1131VAC V
Durability100 Cycles
Filter functionNO
insulator materialPOLYTETRAFLUOROETHYLENE
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
Maximum operating frequency3 GHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialZINC ALLOY
Terminal length0.277 inch
Termination typeCRIMP
Total number of contacts1
voltage standing wave ratio1.5
