50 Ohm SMB
Right Angle Crimp Type Plug - Die Cast -
Captivated Contact
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
CABLE TYPE
RG-161/U, 174,
179, 187, 188, 316
GOLD PLATED
131-1403-101
NICKEL PLATED
131-1403-116

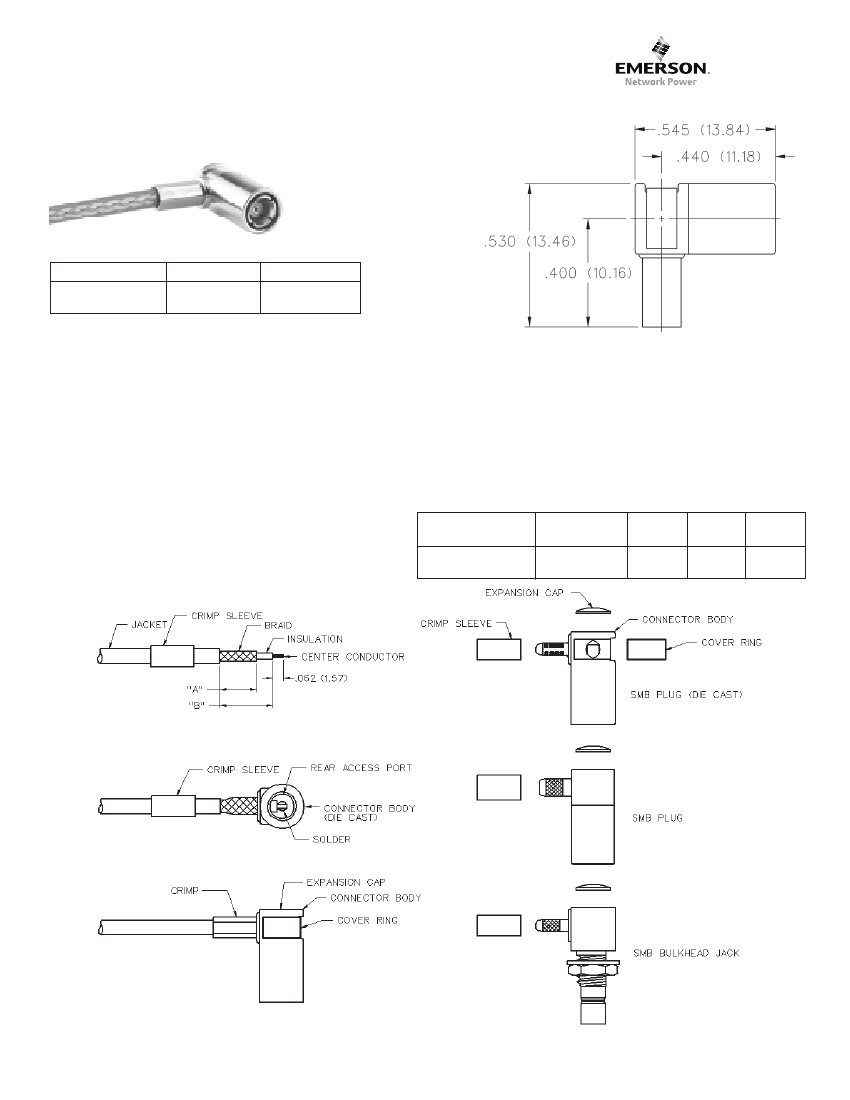

1. Identify connector parts. (4 piece parts: crimp sleeve, body
assembly, expansion cap and covering ring. Die cast body
only.)
2. Strip cable to dimensions shown. Do not nick braid or center
conductor. A wire stripper of correct size is recommended for
this step. Twist stranded center conductor into tight bundle
and tin (optional). Slide crimp sleeve onto cable as shown.
3. Flare braid and slide cable into body assembly making certain
that the cable insulation bottoms on center contact. Solder
center conductor to contact through the rear and side access
ports. Use a minimum amount of solder for a good joint.
.020
(0.51) diameter solder is recommended.
4. Arrange braid uniformly around crimp stem of body assembly.
Slide crimp sleeve over braid and crimp securely using recom-
mended crimp tool. Place expansion cap in access port and
seat with a .125 (3.17) diameter flat punch. Snap cover ring
over side access port.
CABLE
GROUP
RG-316/u, 161, 174,
179, 187, 188
PART
NUMBER
131-1403-101/116
“A”
“B”
CRIMP
HEX
.219 (5.56) .312 (7.92) .128 (3.25)
Emerson Network Power Connectivity Solutions
299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com
SMB - 50 Ohm Connectors
Specifications
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
ELECTRICAL RATINGS
Impedance:
50 ohms
Frequency Range:
Connectors ...................................................... 0-4 GHz
Dummy loads .................................................. 0-1 GHz
VSWR:
(f = GHz)
Straight
Right Angle
Cabled
Cabled
RG-178 cable .................................................... 1.30 + .04f
1.45 + .06f
RG-316, RG-58, and .086 semi-rigid cable ....... 1.25 + .04f
1.35 + .04f
Adapters ............................................................ 1.20 + .04f
Uncabled receptacles, dummy loads ........................................................ N/A
Working Voltage:
(Vrms maximum)
†
Connectors for Cable Type
Sea Level
70K Feet
RG-178 ....................................................... 250
60
RG-316, RG-58, .086 semi-rigid
uncabled receptacles, adapters ................ 335
85
Dummy loads .................................................................................... N/A
Dielectric Withstanding Voltage:
(VRMS minimum at sea level)†
Connectors for RG-178 ......................................................................... 750
Connectors for RG-316, RG-58, .086 semi-rigid,
uncabled receptacles, adapters ......................................................... 1000
Dummy loads .................................................................................... N/A
Corona Level:
(Volts minimum at 70,000 feet)
†
Connectors for RG-178 ......................................................................... 185
Connectors for RG-316, RG-58, .086 semi-rigid ................................... 250
Uncabled receptacles, adapters, dummy loads .................................... N/A
Insertion Loss:
(dB maximum, tested at 1.5 GHz)
Straight cable connectors ............................................................... 0.30 dB
Right angle cable connectors ......................................................... 0.60 dB
Uncabled receptacles, adapters and dummy loads .............................. N/A
Insulation Resistance:
1000 megohms minimum
Initial After Environmental
Contact Resistance:
(milliohms maximum)
Center contact (straight cabled connectors
and uncabled receptacles) .................................. 6.0
8.0
Center contact (right angle cabled
connectors and adapters) .................................. 12.0
16.0
Outer contact (gold plated connectors) ................... 1.0
1.5
Outer contact (nickel plated connectors) ................ 2.5
3.5
Braid to body (gold plated connectors) ................... 1.0
N/A
Braid to body (nickel plated connectors) ................. 2.5
N/A
RF Leakage:
(dB minimum tested at 2.5 GHz)
Cable connectors .............................................................................. -55 dB
Uncabled receptacles, adapters and dummy loads ............................... N/A
†
Avoid user injury due to misapplication. See safety advisory definitions inside front cover.
** All gold plated parts include a .00005" min. nickel underplate barrier layer.
RF High Potential Withstanding Voltage:
(Vrms minimum, tested at 4 and 7
MHz)
†
Connectors for RG-178 ......................................................................... 500
Connectors for RG-316, RG-58 ............................................................. 700
Uncabled receptacles and adapters ...................................................... 600
Dummy loads ........................................................................................ N/A
Power Rating (Dummy Load):
0.5 watt @ +25
o
C, derated to 0.25 watt @
+125
o
C
MECHANICAL RATINGS
Engagement Design:
MIL-C-39012, Series SMB
Engagement/Disengagment Force:
2 pounds min to 14 pounds
maximum axial force
Contact Retention:
4 lbs. min axial force (captivated contacts)
1 inch-ounce min torque (uncabled receptacles)
Cable Retention:
Axial Force* (pounds) Torque (in-oz)
Connectors for RG-178 ............................... 10
N/A
Connectors for RG-316 ............................... 20
N/A
Connectors for RG-58 ................................. 40
16
Connectors for .086 semi-rigid .................... 30
16
* or cable breaking strength whichever is less.
Durability:
500 cycles minimum
ENVIRONMENTAL RATINGS
(Meets or exceed the applicable paragraph of MIL-C-39012)
Temperature Range:
Connectors ....................................... - 65
o
C to + 165
o
C
Dummy loads ................................... - 65
o
C to + 125
o
C
Thermal Shock:
MIL-STD-202, Method 107, Condition B (N/A dummy loads)
Corrosion:
MIL-STD-202, Method 101, Condition B (N/A dummy loads)
Shock:
MIL-STD-202, Method 213, Condition B (N/A dummy loads)
Vibration:
MIL-STD-202, Method 204, Condition B (N/A dummy loads)
MATERIAL SPECIFICATIONS
Bodies:
Brass per QQ-B-626 or zinc per ASTM B86-71, gold plated** per MIL-
G-45204 .00001 min or nickel plated per QQ-N-290
Contacts:
Male - brass per QQ-B-626, gold plated per MIL-G-45204 .00003"
min.
Female - beryllium copper per QQ-C-530, gold plated per MIL-G-45204
.00003" min.
Insulators:
PTFE fluorocarbon per ASTM D 1710 and ASTM D 1457 OR Teflon
PFA 340
Expansion Caps:
Brass per QQ-B-613, gold plated per MIL-G-45204 .00001"
min. or nickel plated per QQ-N-290
Crimp Sleeves:
Copper per WW-T-799, gold plated per MIL-G-45204 .00001"
min. or nickel plated per QQ-N-290
Mounting Hardware:
Brass (nuts) per QQ-B-626 or phosphor bronze
(lockwashers) QQ-B-750, gold plated per MIL-G-45204 .00001" min. or nickel
plated per QQ-N-290
Cover Rings:
Phosphor Bronze per QQ-B-750, gold plated per MIL-G-45204
.00001 min. or nickel plated per QQ-N-290.

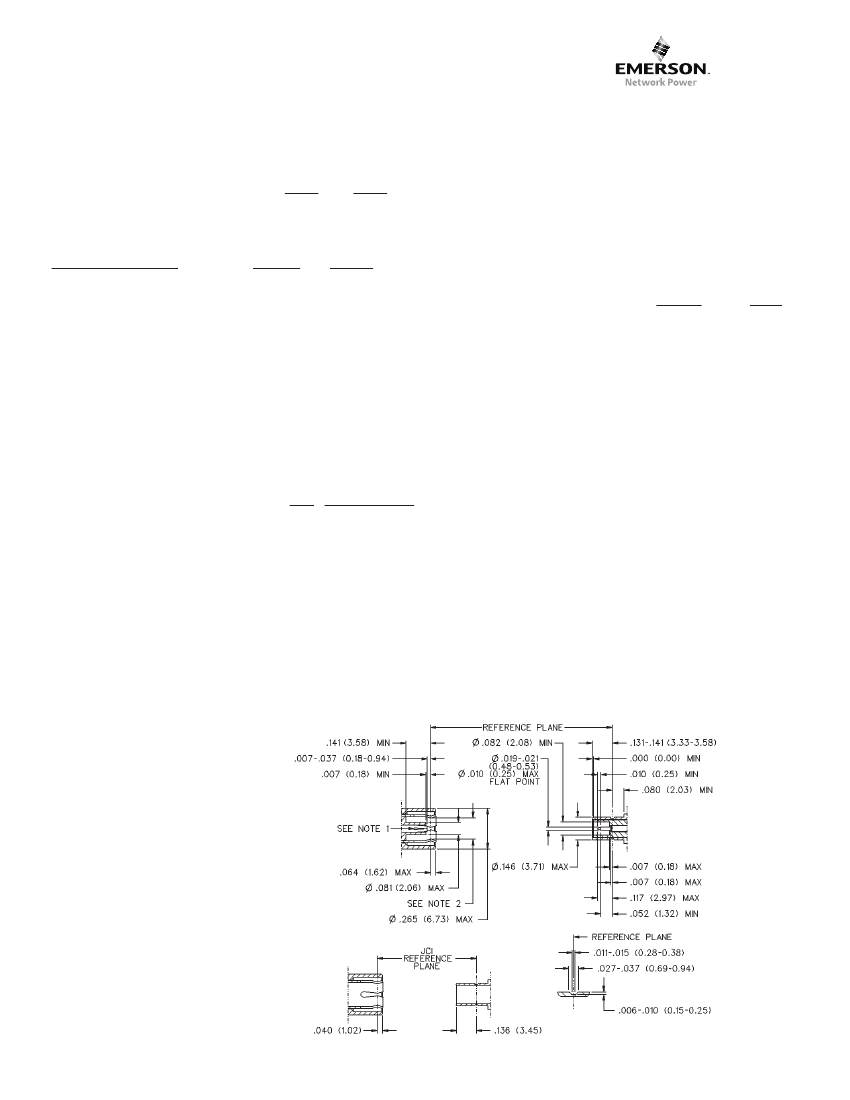

MATING ENGAGEMENT FOR SMB
SERIES PER MIL-C-39012
Plug
Jack
Notes
1. ID of contact to meet VSWR mating char-
acteristics and connector durability when
mated with a dia .019 /0.53 male contact.
2. Must meet the force to engage and disen-
gage when mated with mating part.
Plug
Jack
