FM series
Snap-in rocker switches - panel cut-out 19 x 13 (.750 x .508)
Distinctive features and specifications
❑
Illuminated and non-illuminated
❑
For class II appliances
❑
VDE and UL approved
❑

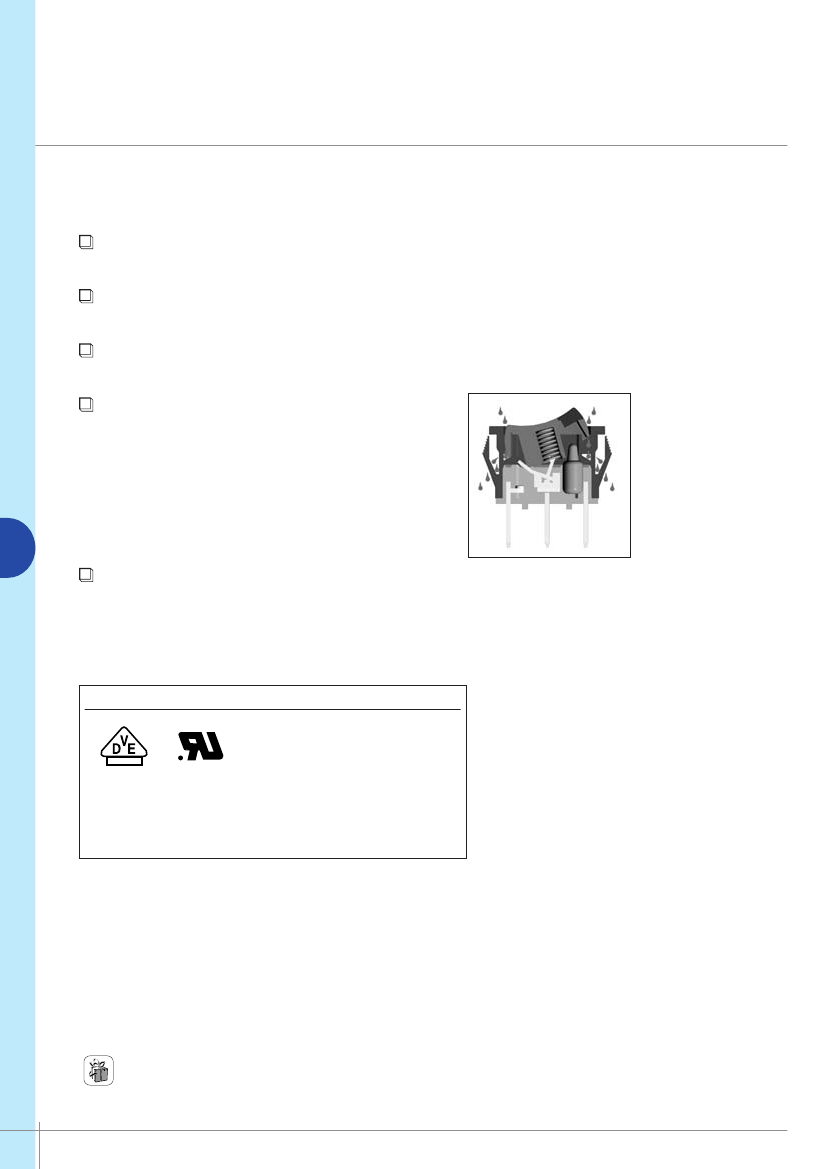

Protection against moisture by double-shell case
When the switch is submitted to moisture (drops,
condensation), the double-shell case conducts the liquid
outside, thus protecting the contact area and terminals.
The light dripping inside the equipment resulting from
this should be evacuated by adequate arrangement on
back of panel
.
D
❑
Protection by boot
In case of sand or splashing water, the best protection consists of insulating the rocker from
these aggressive elements. This can be achieved with transparent PVC boot
U5720.
Order
separately, see section H.
AGENCY APPROVALS
EN 61058-1
Availability
: functions 1 and 6
Marking
: approved models are standard marked.
Dimensions
: first dimensions are in mm while inches are shown as bracketed numbers.
Packaging unit
: 150 pieces.
D-42
www.apem.com
APEM
FM series
Snap-in rocker switches - panel cut-out 19 x 13 (.750 x .508)

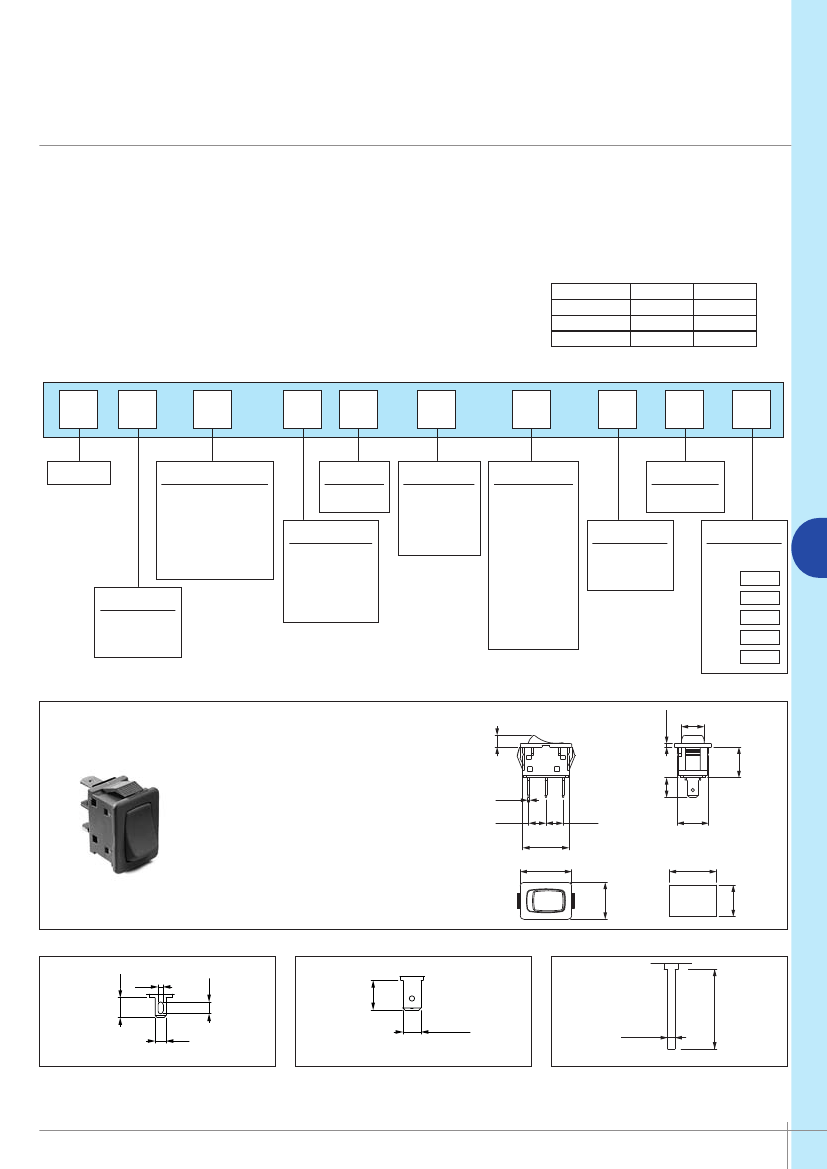

Single pole - non-illuminated
• Approved ratings (functions 1 and 6 ) :
VDE
: 10(4)A 250VAC T85°C -
UL
: 6A 250VAC & 125VAC T65°C
• Max. contact rating :
- functions 1 and 6 : see above.
- function 3 : 4A 250VAC
- functions 8 and 9 : 6A 250VAC
• Initial contact resistance : 20mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : - functions 1 and 6 : 2.500 Vrms between terminals
- functions 3, 8 and 9 : 1.500 Vrms between terminals
• Electrical life at full load : 10 000 cycles
• Operating temperature :
-20°C to +85°C
• Case, frame, rocker : PA6/6
• Contacts : silver
• Terminals : silver plated
• Panel cut-out :
Panel thickness
0,75 to 1,25 mm
1,25 to 2 mm
2 to 3 mm
Dim. Y
19,2 +0/-0,1
19,4 +0/-0,1
19,8 +0/-0,1
Dim. Z
12,9 +0,15/-0
12,9 +0,15/-0
12,9 +0,15/-0
FM
C
A
0
0
SERIES
Electrical functions
1
3
6
8
9
ON
-
OFF
MOM -
OFF
ON
-
ON
ON OFF MOM
ON OFF ON
Contacts
A
Silver
Frame colour
2
Black
Rocker colours
1
2
3
4
5
6
7
7/1
9
Blue
Black (std)
Green
Grey
Yellow
Red (std)
Ivory
White
Orange
0
Lamp
None
Terminals
2
Solder lug
8
Quick-conn.
9
Straight PC
(funct. 1 & 6)
Others : on
request.
Lens colour
0
No lens
Marking *
000
None
001
002
003
004
005
0
0
OFF
D
0
I
I
ON
Rocker
C
Non illum.
Concave
I 0 II
*
Colour of marking
: white for black rockers - black for other colours - Other : on request.
4.80
(.189)
1.50
(.059)
Single throw and double throw switch
1-2

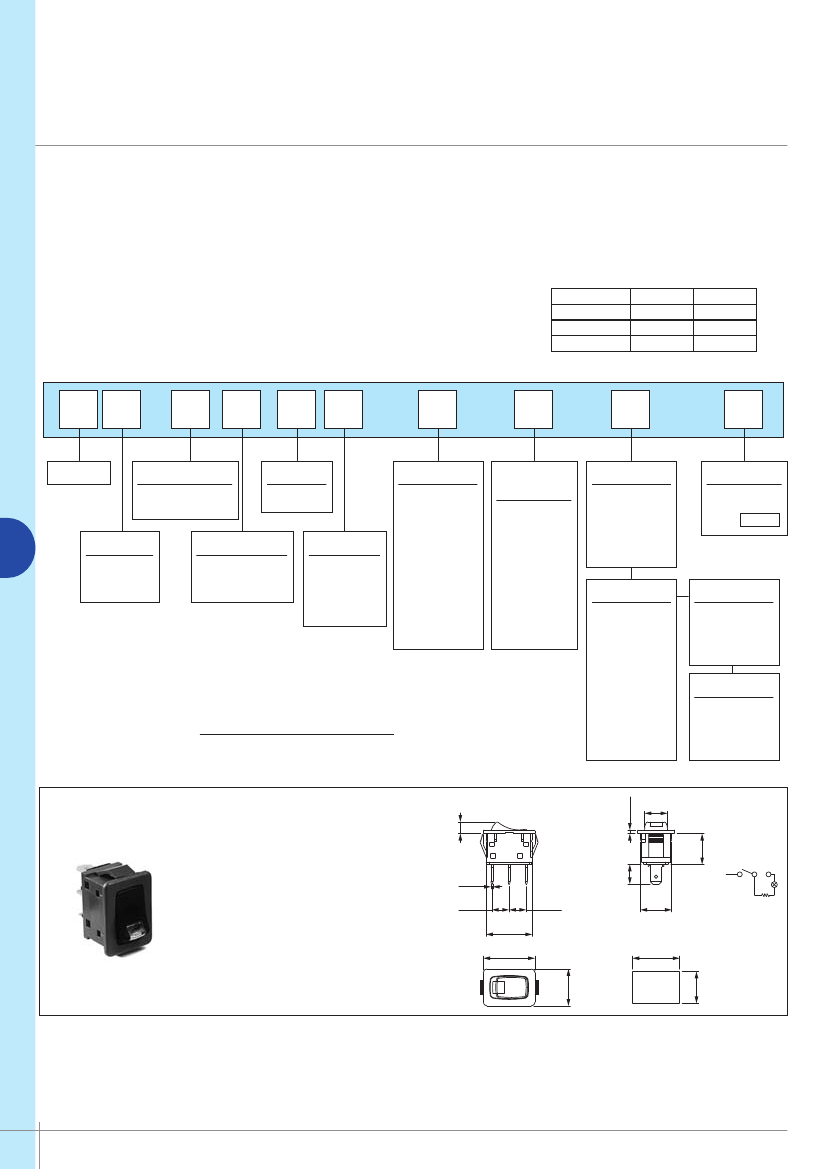

FMC1
FMC3
FMC6
FMC8
FMC9
2-3
0.80
(.031)
7.00
(.275)
18.80
(.740)
21.00
(.827)
3
2
1
9.30
(.366)
ON
-
OFF
MOM -
OFF
ON
-
ON
ON OFF MOM
ON OFF ON
8.00
(.315)
7.00
(.275)
12.80
(.504)
Y
15.00
(.591)
Shown with quick-connect terminals
TERMINALS
5.20
(.204)
3.10
(.122)
1.30
(.051)
7.00
(.275)
2.80x0.80
(.11x.031)
4.70x0.80
(.185x.031)
1.20 x 0.80
(.047 x .031)
2
Solder lug
8
Quick-connect
9
Straight PC (functions 1 and 6 only)
APEM
www.apem.com
13.00
(.512)
Z
12.50
(.492)
D-43
FM series
Snap-in rocker switches - panel cut-out 19 x 13 (.750 x .508)
Single pole - illuminated
• Approved ratings :
VDE
: 10(4)A 250VAC T85°C -
UL
: 6A 250VAC & 125VAC T65°C
• LED types available :
3,3V (4V max.) 10mA LED (resistor to be series connected by the user)
5V or 12V LED with integrated resistor
• Initial contact resistance : 20mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 2.500 Vrms between terminals
• Electrical life at full load : 10 000 cycles
• Operating temperature: - 20°C to + 85°C
• Case, frame and rocker : PA6/6
• Lens : PC
• Contacts : silver
• Terminals : silver plated
• Lamp terminal : no plating
• Fluorescent lamp for blue or green lens,
neon lamp for other colours
• Panel cut-out :
Panel thickness
0,75 to 1,25 mm
1,25 to 2 mm
2 to 3 mm
Dim. Y
19,2 +0/-0,1
19,4 +0/-0,1
19,8 +0/-0,1
Dim. Z
12,9 +0,15/-0
12,9 +0,15/-0
12,9 +0,15/-0
FM
L
1
8
A
SERIES
1
Electr. function
ON
-
OFF
Contacts
A
Silver
Rocker colour
1
2
3
4
5
6
7
7/1
9
Blue
Black (std)
Green
Grey
Yellow
Red (std)
Ivory
White
Orange
1
3
5
6
8
9
Lens
colour
Blue *
Green *
Yellow
Red
Translucent
Orange
Lamp
A
B
C
D
220V neon
220V fluor.
110V neon
110V fluor.
Marking *
000
None
001
0
D
L
Rocker
Illumin.
concave
Terminals
8
Quick-connect
Frame colour
2
Black
Others : on
request.
LED 3,3V 10mA
E
F
G
H
J
K
L
Blue
Red/green
Green
Yellow
White
Red
Orange
LED 5V
N
Green
P
Yellow
Q
Red
* w. fluorescent
lamp
LED 12V
T
Green
U
Yellow
V
Red
*
Colour of marking
: white for black rockers - black for other colours - Other : on request.
** Resistor value = supply voltage - LED forward voltage
LED forward current
No resistor**
4.80
(.189)
1.50
(.059)
Illuminated switches - quick-connect terminals
9.30
(.366)
12.50
(.492)
FML1
ON
-
OFF
0.80
(.031)
7.00
(.275)
3
2
1
8.00
(.315)
1
2
3
7.00
(.275)
18.80
(.740)
12.80
(.504)
AUTRES OPTIONS
: voir Guide de Codification sur page ci-
Y
15.00
(.591)
21.00
(.827)
For LED models, terminal 2 = cathode (-), terminal 3 = anode (+)
