338070-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 338070-8

Preview

338070-8: Description(338070-8) MICRO-MATCH FEM.SE; CategoryThe connector The connector; File Size362KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

338070-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	338070-8	-	-	View	Buy Now

338070-8 Overview

(338070-8) MICRO-MATCH FEM.SE

338070-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1742799556
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Body Features: Connector Profile Standard \| Primary Product Color Red \| Configuration Features: PCB Mount Orientation Right Angle \| Number of Rows 2 \| Number of Positions 8 \| Contact Features: Contact Underplating Material Nickel \| PCB Contact Termination Area Plating Material Thickness 118.11 â€“ 196.85 MICIN \| Contact Mating Area Plating Material Thickness 3 â€“ 5 MICM \| PCB Contact Termination Area Plating Material Tin \| Contact Type Receptacle \| Contact Layout Staggered \| Contact Current Rating (Max) 1.
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-03 12:22:25
YTEOL	9.1
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.228 inch
subject depth	0.208 inch
body length	0.579 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT APPLICABLE
contact mode	STAGGERED
DIN compliance	NO
Durability	20 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Power Connector Ratings	1.5A
Plug contact pitch	0.05 inch
Match contact row spacing	0.059 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Panel mounting	NO
Plating thickness	196.85u inch
polarization key	POLARIZED
Rated current (signal)	1.5 A
Rated voltage	100 V
Guideline	UL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

4

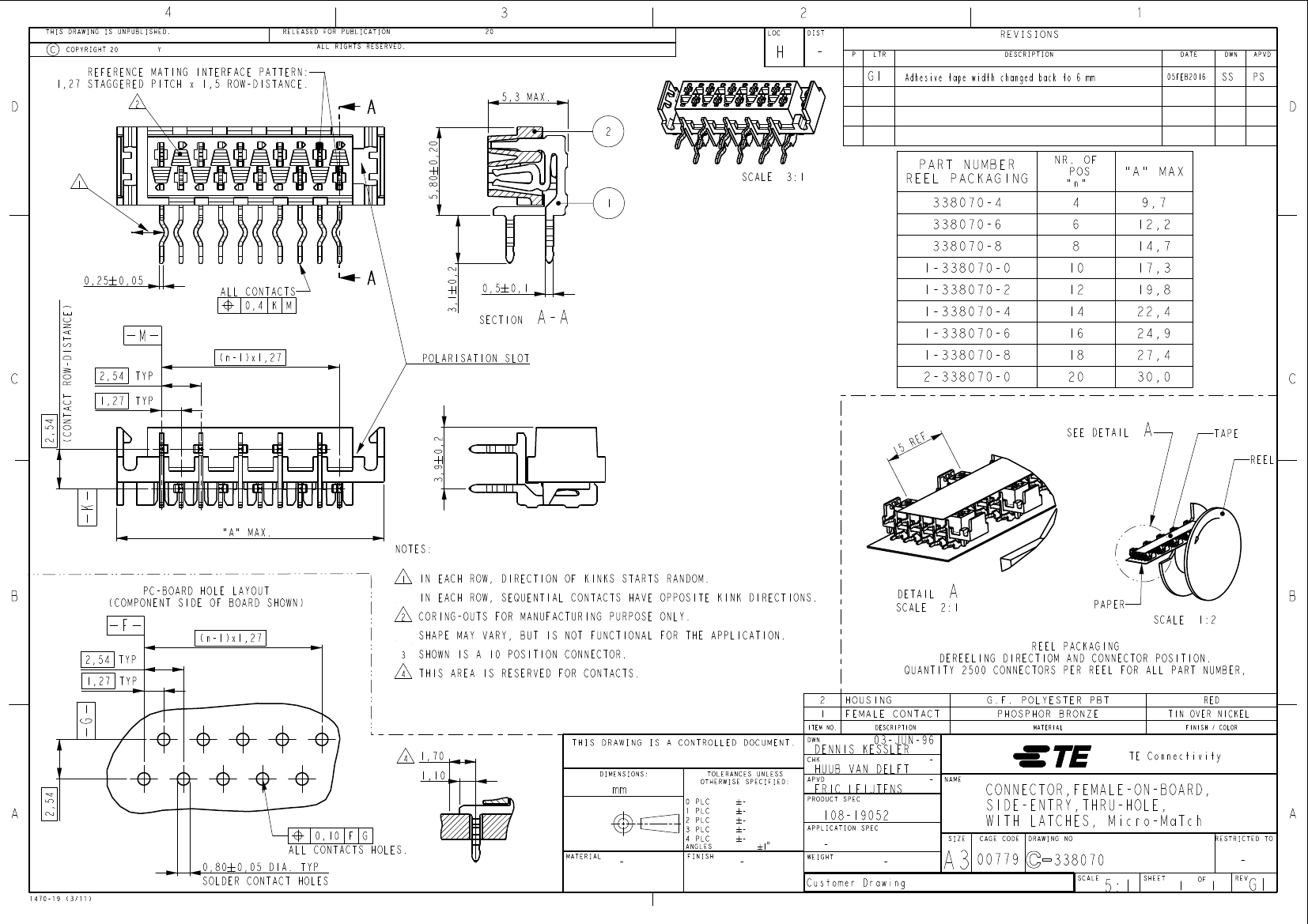

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

20

3

LOC

2

DIST

1

C

COPYRIGHT 20

Y

REFERENCE MATING INTERFACE PATTERN:

1,27 STAGGERED PITCH x 1,5 ROW-DISTANCE.

H

5,3 MAX.

5,80 # 0,20

2

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

G1

Adhesive tape width changed back to 6 mm

05FEB2016

SS

PS

D

2

D

1

SCALE

1

3:1

PART NUMBER

REEL PACKAGING

338070-4

338070-6

338070-8

NR. OF

POS

"n"

"A" MAX

9,7

12,2

14,7

17,3

19,8

22,4

24,9

27,4

30,0

4

6

8

10

12

14

16

18

20

0,25 0,05

(CONTACT ROW-DISTANCE)

3,1 0,2

1-338070-0

0,5 0,1

SECTION

ALL CONTACTS

0,4 K M

1-338070-2

M

2,54

1,27

TYP

A-A

1-338070-4

1-338070-6

1-338070-8

2-338070-0

(n-1)x1,27

POLARISATION SLOT

C

2,54

C

3,9 # 0,2

15

RE

F.

SEE DETAIL

A

TAPE

REEL

K

"A" MAX.

NOTES:

1

B

PC-BOARD HOLE LAYOUT

(COMPONENT SIDE OF BOARD SHOWN)

IN EACH ROW, DIRECTION OF KINKS STARTS RANDOM.

IN EACH ROW, SEQUENTIAL CONTACTS HAVE OPPOSITE KINK DIRECTIONS.

CORING-OUTS FOR MANUFACTURING PURPOSE ONLY.

SHAPE MAY VARY, BUT IS NOT FUNCTIONAL FOR THE APPLICATION.

SHOWN IS A 10 POSITION CONNECTOR.

THIS AREA IS RESERVED FOR CONTACTS.

2

1

ITEM NO.

F

2,54 TYP

1,27 TYP

2

DETAIL

SCALE 2:1

A

PAPER

B

SCALE

1:2

(n-1)x1,27

3

4

REEL PACKAGING

DEREELING DIRECTIOM AND CONNECTOR POSITION.

QUANTITY 2500 CONNECTORS PER REEL FOR ALL PART NUMBER,

HOUSING

G.F. POLYESTER PBT

PHOSPHOR BRONZE

MATERIAL

G

FEMALE CONTACT

DESCRIPTION

TIN OVER NICKEL

FINISH / COLOR

RED

4

1,70

1,10

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

2,54

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

0,80 0,05 DIA. TYP

SOLDER CONTACT HOLES

1470-19 (3/11)

0,10 F G

ALL CONTACTS HOLES.

0

1

2

3

4

MATERIAL

ANGLES

PLC

-

03-JUN-96

DENNIS KESSLER

CHK

-

HUUB VAN DELFT

APVD

-

ERIC LEIJTENS

DWN

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

NAME

108-19052

-

SIZE

-

FINISH

-

1 $

WEIGHT

-

Customer Drawing

A3

00779

CAGE CODE

CONNECTOR,FEMALE-ON-BOARD,

SIDE-ENTRY,THRU-HOLE,

WITH LATCHES, Micro-MaTch

DRAWING NO

A

RESTRICTED TO

338070

SCALE

5:1

SHEET

1

OF

1

REV

-

G1

338070-8 Related Products

	338070-8	51720-10208817AB	51720-10302809AB	51720-10402803AA	1-338070-2	51720-10802005AA	51724-30106414A0	2-338070-0	338070-4
Description	(338070-8) MICRO-MATCH FEM.SE	Board Connector, Female, Right Angle, Solder Terminal, Locking, Receptacle	Board Connector, Female, Right Angle, Solder Terminal, Locking, Receptacle	Board Connector, Female, Right Angle, Solder Terminal, Locking, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Red Insulator, Receptacle	Board Connector, Female, Right Angle, Solder Terminal, Locking, Receptacle	Board Connector, Male, Right Angle, Solder Terminal, Locking	MICRO-MATCH FEM.SE	(338070-4) MICRO-MATCH FEM.SE
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE	FEMALE	FEMALE
Contact material	NOT APPLICABLE	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT APPLICABLE	COPPER ALLOY	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT APPLICABLE
Insulation resistance	1000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	1000000000 Ω	10000000000 Ω	500000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYESTER	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mixed contacts	NO	YES	YES	YES	NO	YES	YES	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	125 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-20 °C	-20 °C	-20 °C	-40 °C	-20 °C	-55 °C	-40 °C	-40 °C
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Objectid	1742799556	309052858	309053532	308924100	1933549388	308927940	308908090	-	1742799554
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	-
body width	0.228 inch	0.574 inch	0.574 inch	0.574 inch	0.228 inch	0.574 inch	0.574 inch	0.228 inch	-
subject depth	0.208 inch	0.93 inch	0.93 inch	0.93 inch	0.209 inch	0.93 inch	0.93 inch	0.209 inch	-
body length	0.579 inch	7.6 inch	4.35 inch	3.1 inch	0.78 inch	4.4 inch	5.44 inch	1.181 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	PLUG	RECEPTACLE
Contact to complete cooperation	NOT APPLICABLE	-	-	-	NOT APPLICABLE	-	AU ON NI	NOT SPECIFIED	NOT APPLICABLE
Durability	20 Cycles	200 Cycles	200 Cycles	200 Cycles	-	200 Cycles	200 Cycles	-	-
Filter function	NO	-	-	-	NO	-	NO	NO	NO
Installation option 1	LATCH	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING	-	-
Plating thickness	196.85u inch	30u inch	30u inch	30u inch	196.85u inch	30u inch	30u inch	-	196.85u inch
Rated current (signal)	1.5 A	-	-	-	1.5 A	-	3 A	1.5 A	1.5 A
Contact completed and terminated	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-
Contact resistance	-	2 mΩ	2 mΩ	2 mΩ	10 mΩ	2 mΩ	20 mΩ	10 mΩ	-
Contact style	-	HYBRID	HYBRID	HYBRID	DUAL PRONG	HYBRID	HYBRID	DUAL PRONG	-
Dielectric withstand voltage	-	2500VDC V	2500VDC V	2500VDC V	-	2500VDC V	2500VDC V	-	-
maximum insertion force	-	.973 N	.973 N	.973 N	4.8928 N	.973 N	.973 N	4.8928 N	-
JESD-609 code	-	e0	e0	e0	-	e0	e0	-	-
Manufacturer's serial number	-	51720	51720	51720	-	51720	-	338070	-
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-	COMMERCIAL	-
Terminal length	-	0.135 inch	0.135 inch	0.135 inch	0.122 inch	0.135 inch	0.135 inch	0.122 inch	-
Evacuation force-minimum value	-	.17792 N	.17792 N	.17792 N	1.0008 N	.17792 N	.17792 N	1.0008 N	-
