FN355-6/05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FN355-6/05

FN355-6/05: Description440V, 400 HZ, THREE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE; CategoryAnalog mixed-signal IC filter; File Size197KB，3 Pages; ManufacturerSchaffner; Environmental Compliance

Download Datasheet Parametric Compare View All

FN355-6/05 Overview

440V, 400 HZ, THREE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE

FN355-6/05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE
Reach Compliance Code	compli
Other features	AMP FAST-ON OUTPUT CONNECTIONS
Certification	UL; CSA; SEMKO
filter type	THREE PHASE EMI FILTER
high	40.3 mm
high potential	1900 V
Maximum leakage current	0.07 mA
length	65 mm
Manufacturer's serial number	FN355
Installation type	PANEL MOUNT
working frequency	400 Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L65.0XB50.0XH40.3 (mm)/L2.559XB1.969XH1.587 (inch)
Rated current	6.9 A
Rated voltage	440 V
Terminal surface	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

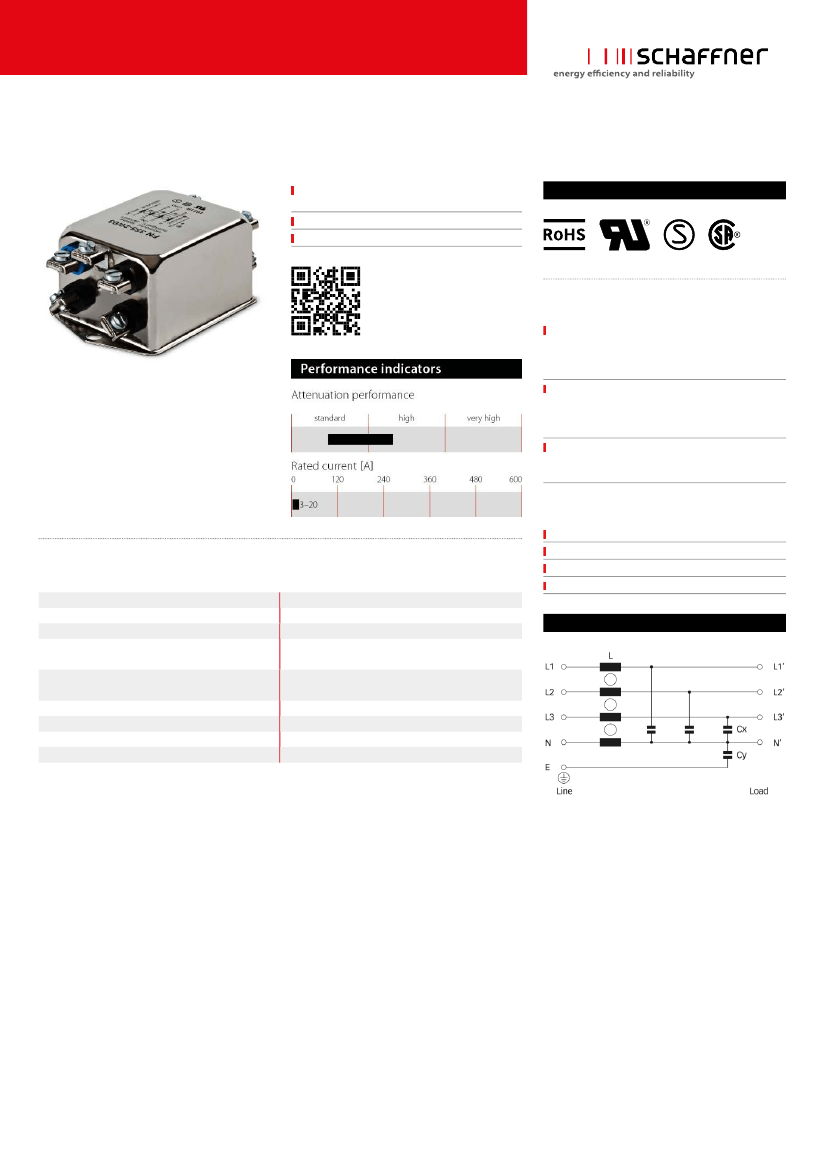

Ultra-compact Low Leakage current EMC/EMI Filter

3-Phase + Neutral Line Filters FN 355

Ultra-compact four-wire filter for applications

lacking space

Exceptional low operating leakage current

Equally suitable for star and delta power networks

Approvals

Features and benefits

The FN 355 family of three-phase and neutral line

filters provides a cost-effective interference

suppression solution for a wide variety of

applications

Available in four versions, with current ratings from

3 to 20A, the filters employ a single-stage four-wire

LC circuit with saturating resistant chokes, and have

a very low operational leakage current

FN 355 filters are contained within an extremely

compact metal housing, making them ideal for use

in situations where space is at a premium

Typical applications

Office equipment

Technical specifications

Maximum continuous operating voltage

Operating frequency

Rated currents

High potential test voltage

Overload capability

Temperature range (operation and storage)

Flammability corresponding to

Design corresponding to

3x 440/250 VAC

dc to 400 Hz

Medical equipment

General purpose four-wire filtering

Applications with tight space conditions

3 to 20 A @ 40 °C

P –> E 2000 VAC for 2 sec

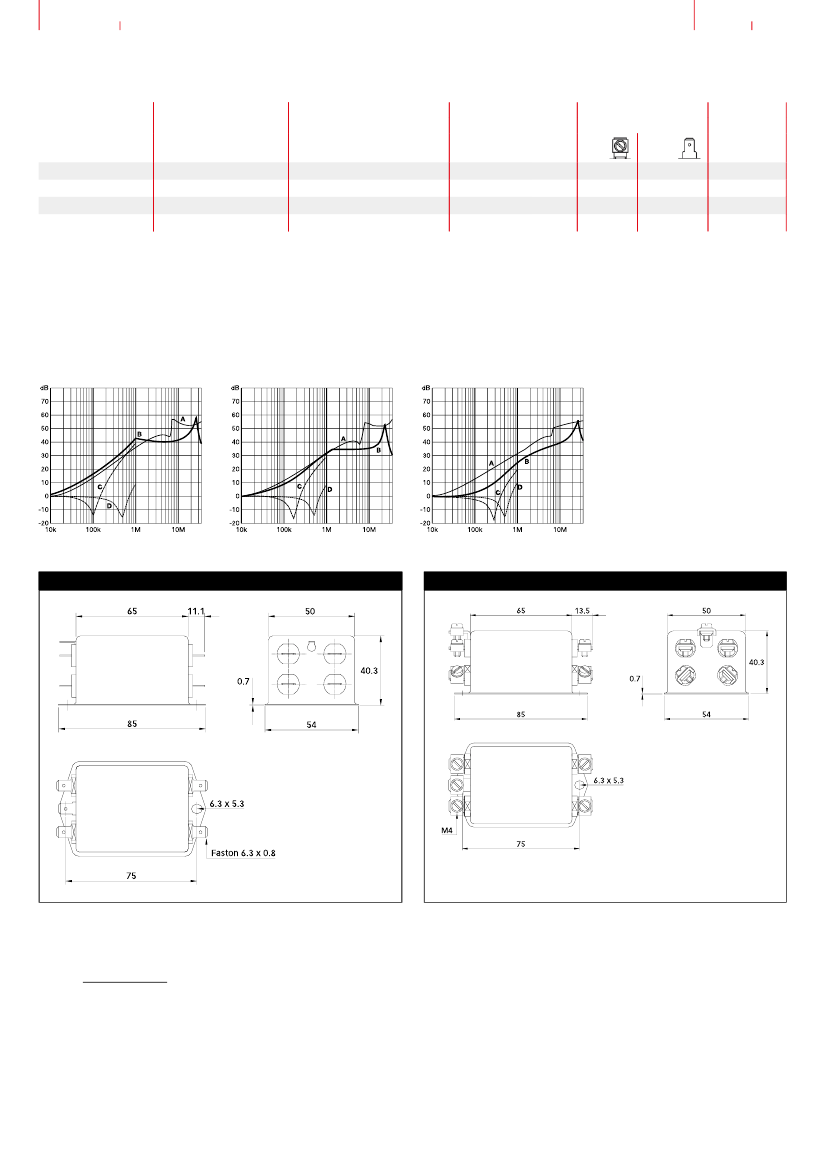

Typical electrical schematic

P –> P 1900 VDC for 2 sec

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

-25 °C to +100 °C (25/100/21)

UL 94 V-2 or better

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

850,000 hours

MTBF @ 40°C/230V (Mil-HB-217F)

FN355-6/05 Related Products

	FN355-6/05	FN355-3/05	FN355-10/05	FN355-20/03
Description	440V, 400 HZ, THREE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE	440V, 400 HZ, THREE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE	440V, 400 HZ, THREE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE	440V, 400 HZ, THREE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE	ROHS COMPLIANT PACKAGE	ROHS COMPLIANT PACKAGE	ROHS COMPLIANT PACKAGE
Reach Compliance Code	compli	compliant	compliant	compliant
Other features	AMP FAST-ON OUTPUT CONNECTIONS	AMP FAST-ON OUTPUT CONNECTIONS	AMP FAST-ON OUTPUT CONNECTIONS	CLAMP TERMINAL WITH M4 SCREW CONNECTIONS
Certification	UL; CSA; SEMKO	UL; CSA; SEMKO	UL; CSA; SEMKO	UL; CSA; SEMKO
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high	40.3 mm	40.3 mm	40.3 mm	40.3 mm
high potential	1900 V	1900 V	1900 V	1900 V
Maximum leakage current	0.07 mA	0.07 mA	0.07 mA	0.29 mA
length	65 mm	65 mm	65 mm	65 mm
Manufacturer's serial number	FN355	FN355	FN355	FN355
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	400 Hz	400 Hz	400 Hz	400 Hz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
physical size	L65.0XB50.0XH40.3 (mm)/L2.559XB1.969XH1.587 (inch)	L65.0XB50.0XH40.3 (mm)/L2.559XB1.969XH1.587 (inch)	L65.0XB50.0XH40.3 (mm)/L2.559XB1.969XH1.587 (inch)	L65.0XB50.0XH40.3 (mm)/L2.559XB1.969XH1.587 (inch)
Rated current	6.9 A	3.4 A	11.5 A	23 A
Rated voltage	440 V	440 V	440 V	440 V
Terminal surface	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1
Maker	-	Schaffner	Schaffner	Schaffner
