0.3 mm Pitch, 1.1 mm above the board, Top and bottom Contact,
Back-Flip actuator Flexible Printed Circuit ZIF Connectors
FH39 Series
●
Small size (39 pos. shown)
1.1mm
13.9
mm
(39
pos
.)
4
3.
5m
m
■Features

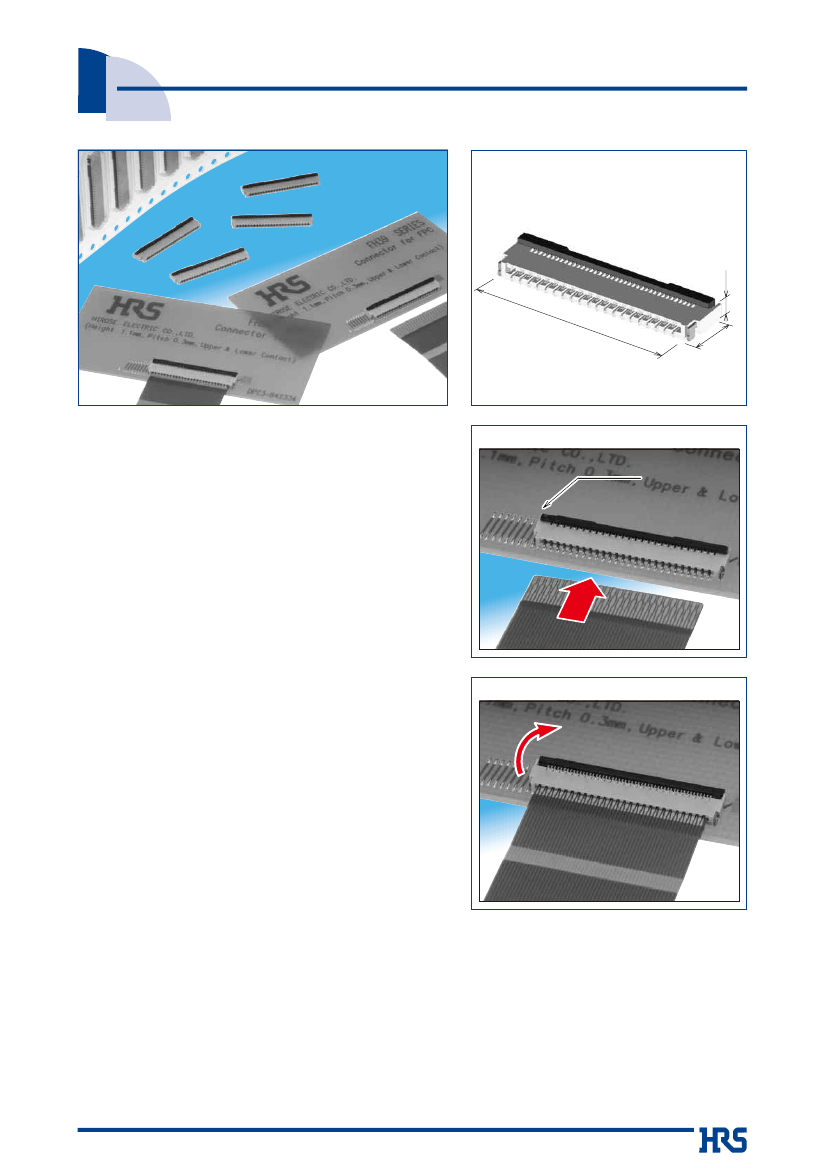

1. Low-profile 0.3mm pitch connector with top
and bottom contact
Usable via either its top or bottom contact point, this
connector achieves enhanced freedom in terms of the
product design.
●
Easy FPC insertion
actuator
2. High contact reliability thanks to the spring
terminal structure
Because both top and bottom contact points are spring-
loaded, the contact point adapts to the FPC motion, and
high contact reliability is ensured.
FPC
3. Delivered with the actuator open
FPC can be immediately inserted without the need for
the opening of the actuator.
●
Completely locked
4. Easy FPC insertion
Entry chamfers at all sides of the FPC insertion slot assure
correct insertion and positioning of the FPC.
5. Accepts standard FPC thickness
0.2mm thick standard Flexible Printed Circuit (FPC) can be
used. This is the only ultra-low profile ZIF connector using
standard FPC.
6. Conductive traces on the PCB can run
under the connector
No exposed contacts on the bottom of the connector.
7. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate
vacuum pick-up and placement.
Standard reel packaging contains 5000 connectors.
8. Halogen-free
*
(FH39J Series)
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
2013.11②
1
FH39 Series●0.3 mm Pitch, 1.1 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
■Specifications
Ratings
Operating
-55 to +85°C (Note 1)
temperature range
Operating
Relative humidity 90% max.
Voltage rating 30 Vrms AC
humidity range
(No condensation)
Current rating 0.2 A
Recommended FPC
Storage
-10 to +50°C (Note 2)
temperature range
Storage
Relative humidity 90% max.
humidity range
(No condensation)
Thickness: 0.2
±
0.03 mm, Gold plated contact pads
Conditions
100 V DC
90 Vrms AC / 1 minute
1 mA, AC max (AC: 1kHz)
10 cycles
Frequency: 10 to 55 Hz,
single amplitude of 0.75 mm,
10 cycles in each of the 3 axis
Acceleration of 981m/s
2
, 6 ms duration,
sine half-wave, 3 cycles in each of the 3 axis
96 hours at 40ç and humidity of 90 to 95%
Temperature:-55ç➝+15ç to +35ç➝+85ç➝+15ç to +35ç
Time: 30➝ 2 to 3
➝
30➝ 2 to 3 minutes
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350ç ± 5ç for 5 seconds
Item
Specification
1.Insulation resistance 50 Mø min.
2.Withstanding voltage No flashover or insulation breakdown
100 mø max.
3.Contact resistance
* Including FPC and FFC conductor resistance
Contact resistance: 100 mø max.
4.Durability
No damage, cracks, or parts dislocation
No electrical discontinuity of 1μs or longer
Contact resistance: 100 mø max.
5.Vibration
No damage, cracks, or parts dislocation
No electrical discontinuity of 1μs or longer
Contact resistance: 100 mø max.
6.Shock
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
7.Humidity
Insulation resistance: 50 Mø min.
(Steady state)
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
Insulation resistance: 50 Mø min.
8.Temperature cycle
No damage, cracks, or parts dislocation
No deformation of components affecting
9.Resistance to
performance
soldering heat
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in
storage, shipment or during transportation after board mounting.
■Materials
Part
Insulator
Contacts
Metalfittings
Material
LCP
PA
Phosphor bronze
Finish
Color:Beige
Color:Black
Gold plated
Pure tin reflow plated
Remarks
UL94V-0
-----------------
-----------------
■Ordering
information
FH 39 J - 51S - 0.3 SHW (10)
1
2
3
4
5
6
7
1
Series name:FH
2
Series No.:39
3
Blank :Standard
A :Long actuator type
J :Halogen-free
(Flame retardance UL94V-0).
4
Number of positions
FH39 :25 to 61
FH39A :67
FH39AJ :71
FH39J :25 to 51
5
Contact pitch:0.3mm
6
Termination type
SHW...SMT horizontal staggered row mount type
7
Plating specifications
(10)...Standard 5,000 pieces/reel
(99)...500 pieces/reel
2
FH39 Series●0.3 mm Pitch, 1.1 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors

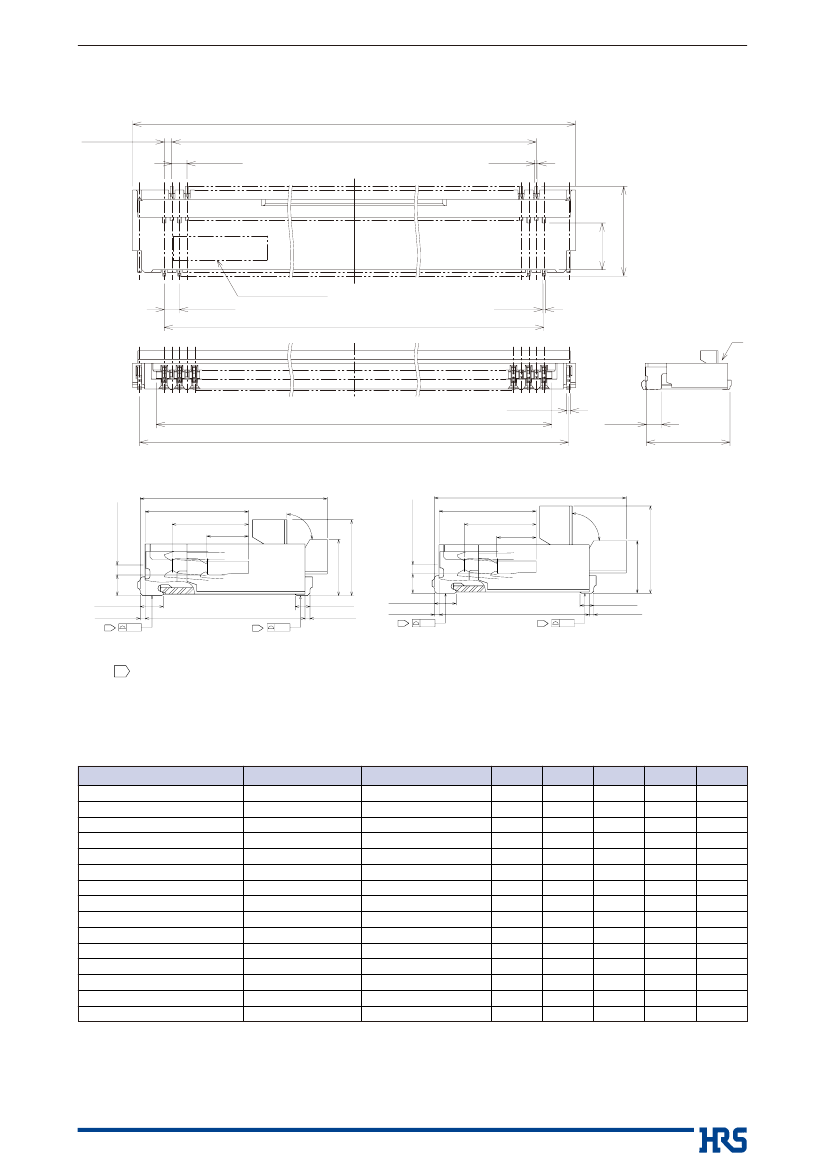

■Connector
Dimensions
A±0.15
0.3±0.1
0.6±0.1
B±0.1
(0.12)
Production LOT No.
0.6±0.1
C±0.1
B
(0.12)
(0.15)
(D)
E±0.1
(0.6)
(3.3)
B Detailed drawing
[FH39 Series]
(3.85)
B Detailed drawing
[FH39A Series]
(4.15)
(0.42) (FPC:t0.2mm)
(0.42) (FPC:t0.2mm)
(2.1)
(1.55)
(0.85)
0.47±0.1
0.1±0.15
1
3.25±0.15
1
0.3±0.1
0.1±0.15
0.1
0.47±0.1
0.1±0.15
1
3.25±0.15
1
0.3±0.1
0.1±0.15
0.1
0.1
0.1
Note 1
2
3
4
:
:
:
:
The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
Packaged on tape and reel only. Check packaging specification.
Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
D
E
7.83
9.15
8.43
9.75
9.03
10.35
10.23
11.55
12.03
13.35
13.83
15.15
15.63
16.95
18.63
19.95
20.43
21.75
22.95
21.63
7.83
9.15
11.55
10.23
12.03
13.35
13.83
15.15
15.63
16.95
Part Number
FH39-25S-0.3SHW(10)
FH39-27S-0.3SHW(10)
FH39-29S-0.3SHW(10)
FH39-33S-0.3SHW(10)
FH39-39S-0.3SHW(10)
FH39-45S-0.3SHW(10)
FH39-51S-0.3SHW(10)
FH39-61S-0.3SHW(10)
FH39A-67S-0.3SHW(10)
FH39AJ-71S-0.3SHW(10)
FH39J-25S-0.3SHW(10)
FH39J-33S-0.3SHW(10)
FH39J-39S-0.3SHW(10)
FH39J-45S-0.3SHW(10)
FH39J-51S-0.3SHW(10)
CL No.
580-1806-8-10
580-1805-5-10
580-1807-0-10
580-1803-0-10
580-1800-1-10
580-1802-7-10
580-1801-4-10
580-1808-3-10
580-1809-6-10
580-1816-1-10
580-1815-9-10
580-1814-6-10
580-1813-3-10
580-1811-8-10
580-1812-0-10
Number of contacts
25
27
29
33
39
45
51
61
67
71
25
33
39
45
51
A
9.7
10.3
10.9
12.1
13.9
15.7
17.5
20.5
22.3
23.5
9.7
12.1
13.9
15.7
17.5
B
6.6
7.2
7.8
9
10.8
12.6
14.4
17.4
19.2
20.4
6.6
9
10.8
12.6
14.4
C
7.2
7.8
8.4
9.6
11.4
13.2
15
18
19.8
21
7.2
9.6
11.4
13.2
15
Tape and reel packaging (5,000 pieces/reel, 500 pieces/reel).
Order by number of reels.
1.1±0.1
(1.89)
(2.1)
(1.55)
(0.85)
1.1±0.1
(1.54)
(1.85)
(9
0˚
3.55±0.2
˚)
(90
)
3
FH39 Series●0.3 mm Pitch, 1.1 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
■Recommended
PCB mounting pattern and metal mask dimensions
(Metal mask:0.42)
B±0.05
0.5±0.05
Recommended
metal mask thickness : t=0.1
0.6±0.05
(0.1)
(0.2)
0.2±0.03
3.65MIN (Stiffner)
0.1±0.05
0.3±0.03
(Metal mask:0.25)
0.3±0.05
(Metal mask:0.57)
0.67±0.05
0.3±0.03
(Metal mask:0.25)
C±0.05
0.6±0.05
0.35±0.05
(Metal mask:0.35)
0.8±0.05
■Recommended
FPC Dimensions
F±0.05
0.3±0.07
0.3
+0.04
-0.03
C±0.03
0.3±0.07
1.05±0.1
1.15±0.1
0.3±0.1
0.6±0.02
0.3±0.02
2-
R0
.2
0.3
+0.04
-0.03
0.1
0.2
0.1±0.02
0.6±0.07
B±0.03
0.6±0.07
*
Stiffener dimension should be 3.65mm min., and X dimension should be 0.5mm for improved flexibility of FPC.
All dimensions: mm
F
7.8
8.4
9
10.2
12
13.8
15.6
18.6
20.4
21.6
7.8
10.2
12
13.8
15.6
Part Number
FH39-25S-0.3SHW(10)
FH39-27S-0.3SHW(10)
FH39-29S-0.3SHW(10)
FH39-33S-0.3SHW(10)
FH39-39S-0.3SHW(10)
FH39-45S-0.3SHW(10)
FH39-51S-0.3SHW(10)
FH39-61S-0.3SHW(10)
FH39A-67S-0.3SHW(10)
FH39AJ-71S-0.3SHW(10)
FH39J-25S-0.3SHW(10)
FH39J-33S-0.3SHW(10)
FH39J-39S-0.3SHW(10)
FH39J-45S-0.3SHW(10)
FH39J-51S-0.3SHW(10)
CL No.
580-1806-8-10
580-1805-5-10
580-1807-0-10
580-1803-0-10
580-1800-1-10
580-1802-7-10
580-1801-4-10
580-1808-3-10
580-1809-6-10
580-1816-1-10
580-1815-9-10
580-1814-6-10
580-1813-3-10
580-1811-8-10
580-1812-0-10
Number of contacts
25
27
29
33
39
45
51
61
67
71
25
33
39
45
51
B
6.6
7.2
7.8
9
10.8
12.6
14.4
17.4
19.2
20.4
6.6
9
10.8
12.6
14.4
*∞(1)
(Uncovered area)
2.25±0.1
2.1±0.1
2.65±0.3
C
7.2
7.8
8.4
9.6
11.4
13.2
15
18
19.8
21
7.2
9.6
11.4
13.2
15
4
(Metal mask:1)
2.48±0.05
(3.65)
1±0.05
FH39 Series●0.3 mm Pitch, 1.1 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
■Recommended

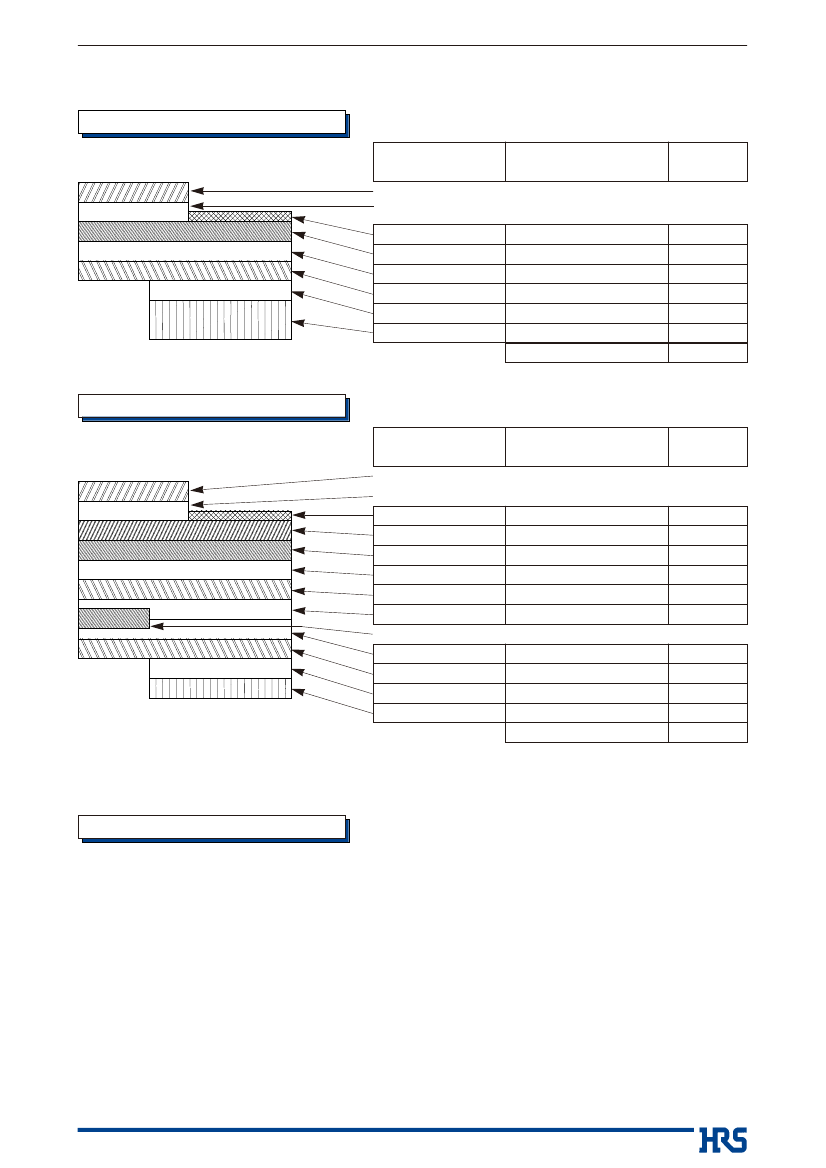

FPC construction
1. Using Single-sided FPC
FPC : Flexible Printed Circuit
Material Name
Covering film layer
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
Reinforcement material adhesive
Stiffener
Polyimide
Material
1 mil thick.
Material Thickness
(μm)
(25)
(25)
0.2μm thick gold plated over 1 to 5μm
nickel underplating
3
35
25
25
40
75
203
Cu 1oz
Thermosetting adhesive
Polyimide
Polyimide
Total
1 mil thick
3 mil thick
Thermosetting adhesive
2. Using Double-sided FPC
FPC : Flexible Printed Circuit
Material Name
Covering film layer
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering film layer
Reinforcement material adhesive
Stiffener
0.2μm thick gold plated over 1 to 5μm
nickel underplating
Material
Polyimide
1 mil thick.
Material Thickness
(μm)
(25)
(25)
3
15
18
18
25
18
(18)
25
25
25
25
197
Cu
Cu 1/2oz
Thermosetting adhesive
Polyimide
Cu 1/2oz
Thermosetting adhesive
Polyimide
Polyimide
Total
1 mil thick.
3 mil thick
Thermosetting adhesive
1 mil thick
Thermosetting adhesive
* To prevent release of the FPC due to its bending, use of the double sided FPC with copper foil on the back side is not
recommended.
3. Precautions
1: This specification is a recommendation for the construction of the FH39 Series FPC (t=0.2±0.03).
2: For details about the construction, please contact the FPC manufacturers.
5
