5962R9579301VXX datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 5962R9579301VXX

Preview

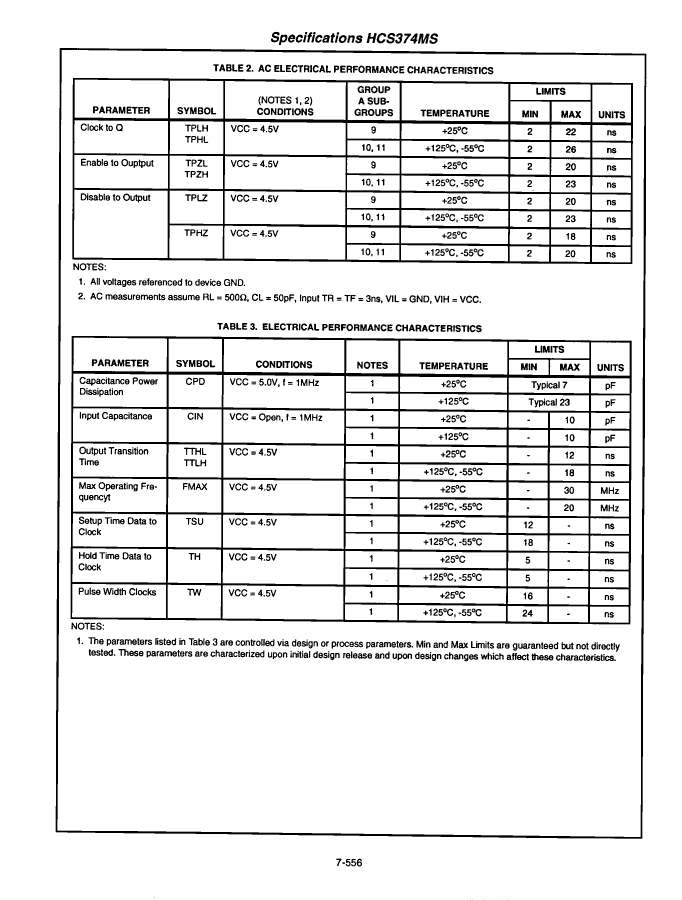

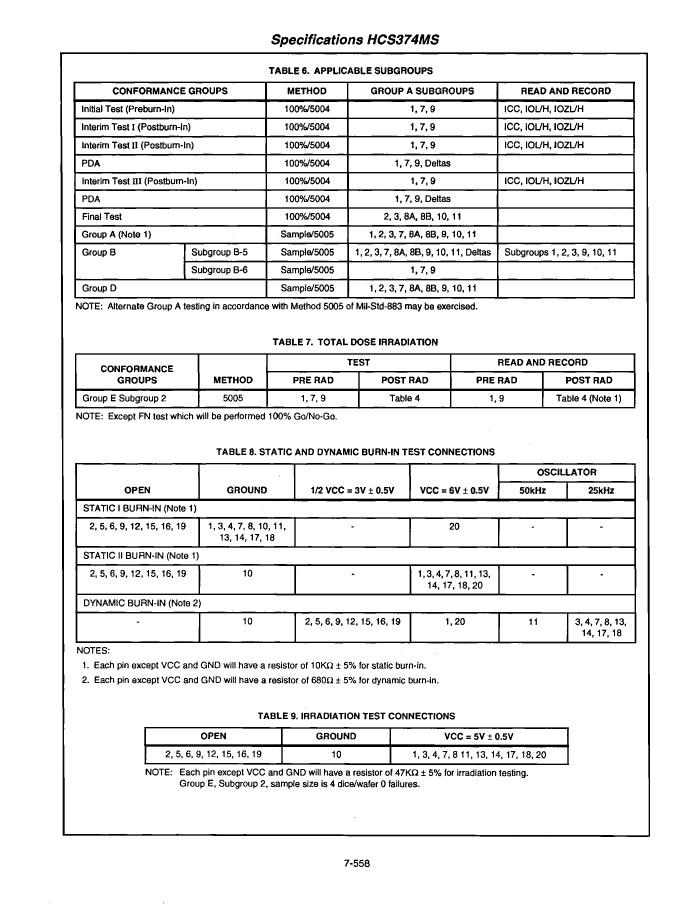

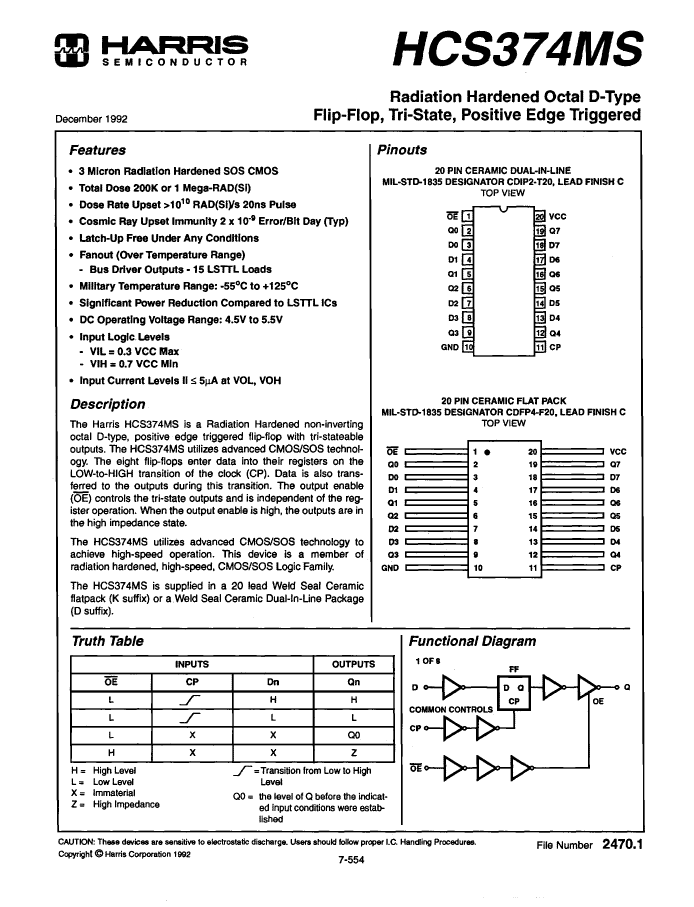

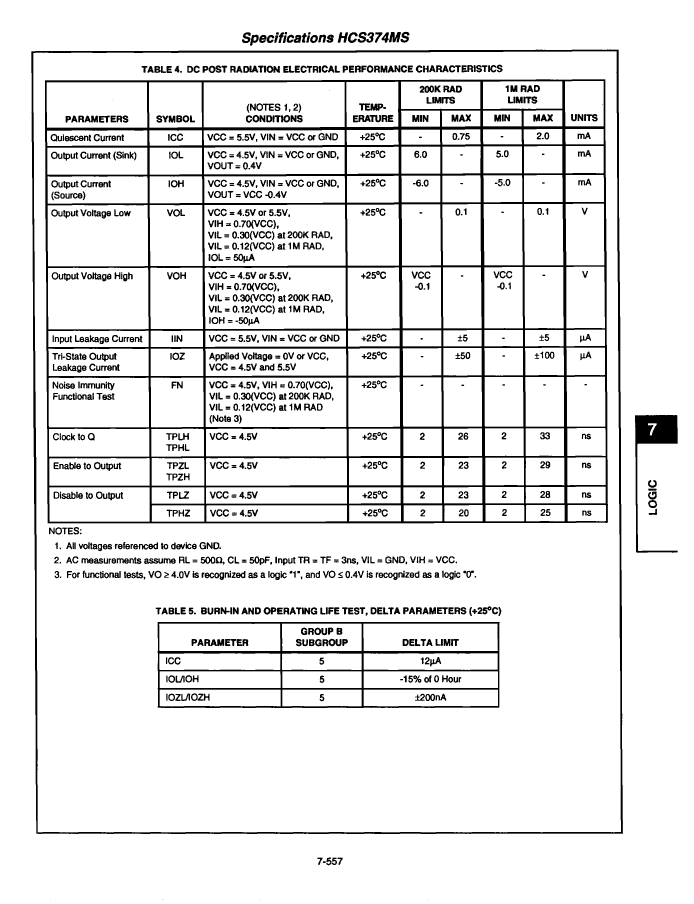

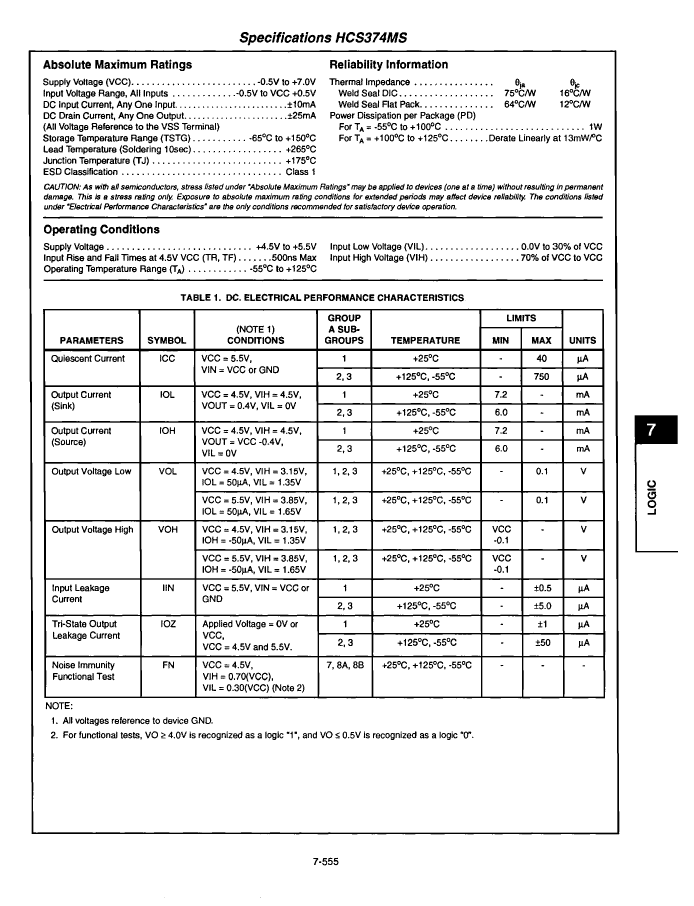

5962R9579301VXX: DescriptionBus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, METAL SEALED, CERAMIC, DFP-20; Categorylogic logic; File Size258KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9579301VXX Overview

Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, METAL SEALED, CERAMIC, DFP-20

5962R9579301VXX Parametric

Parameter Name	Attribute value
package instruction	DFP,
Reach Compliance Code	unknow
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HC/UH
JESD-30 code	R-CDFP-F20
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	26 ns
Certification status	Not Qualified
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	6.92 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962R9579301VXX Related Products

	5962R9579301VXX	5962R9579301VRC	5962R9579301VXC	5962R9579301VRX	HCS374DMSH	HCS374KMSH
Description	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, METAL SEALED, CERAMIC, DFP-20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, METAL SEALED, CERAMIC, DIP-20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, METAL SEALED, CERAMIC, DFP-20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, METAL SEALED, CERAMIC, DIP-20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, METAL SEALED, CERAMIC, DIP-20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, METAL SEALED, CERAMIC, DFP-20
package instruction	DFP,	DIP,	DFP,	DIP,	DIP, DIP20,.3	DFP, FL20,.3
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDFP-F20	R-CDIP-T20	R-CDFP-F20	R-CDIP-T20	R-CDIP-T20	R-CDFP-F20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DFP	DIP	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	IN-LINE	IN-LINE	FLATPACK
propagation delay (tpd)	26 ns	26 ns	26 ns	26 ns	33 ns	33 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.92 mm	5.08 mm	2.92 mm	5.08 mm	5.08 mm	2.92 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V
width	6.92 mm	7.62 mm	6.92 mm	7.62 mm	7.62 mm	6.92 mm
Base Number Matches	1	1	1	1	-	-
JESD-609 code	-	e4	e4	-	e0	e0
Load capacitance (CL)	-	50 pF	50 pF	-	50 pF	50 pF
Terminal surface	-	GOLD	GOLD	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
