Datasheet> All Categories > The connector> 5-102975-8

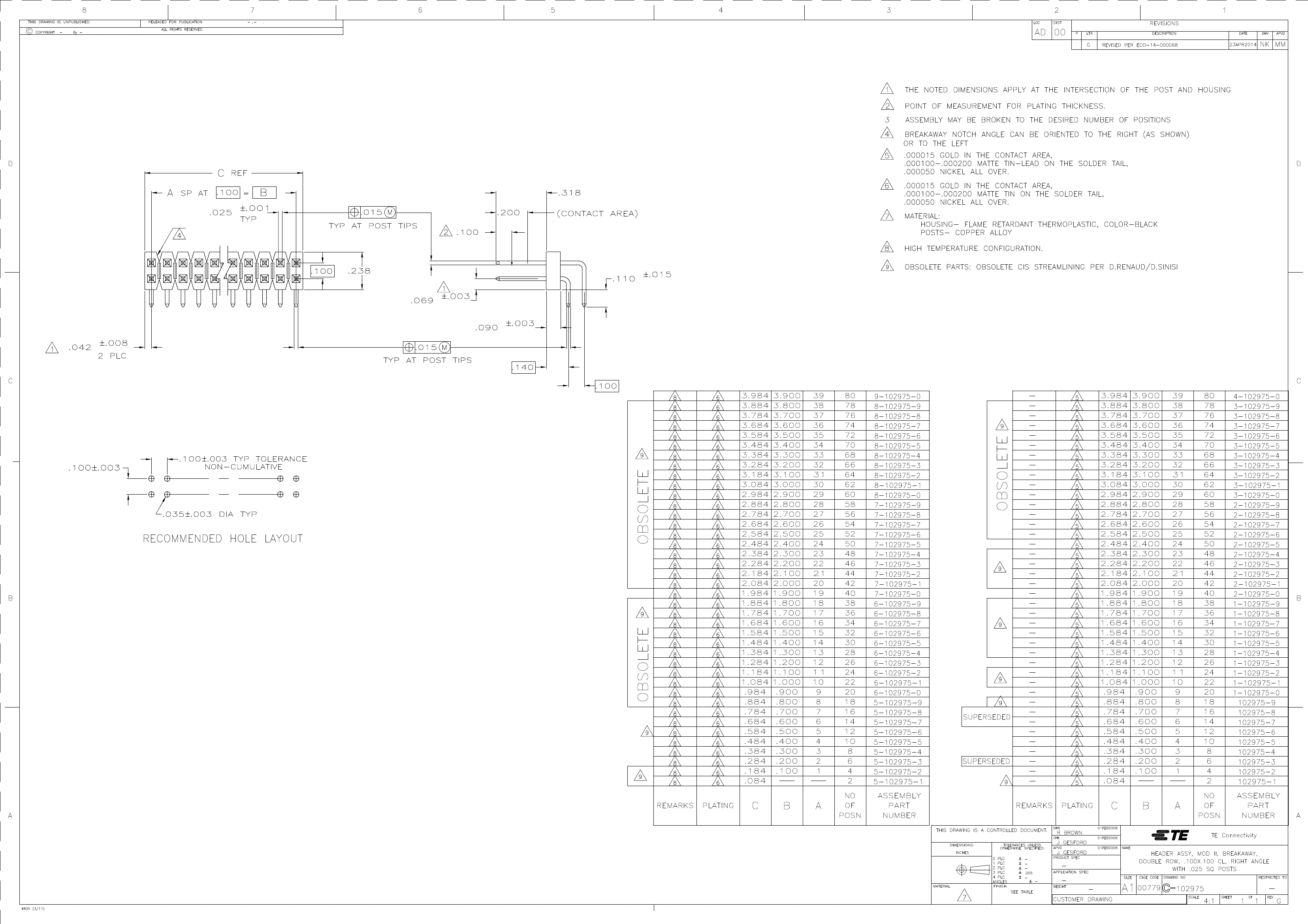

Preview

5-102975-8: Description16 MODII HDR DRRA B/A .100CL; CategoryThe connector; File Size194KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-102975-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-102975-8	-	-	View	Buy Now

5-102975-8 Overview

16 MODII HDR DRRA B/A .100CL

5-102975-8 Parametric

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting header
Connectors and terminals terminate to	A printed circuit board
Connector type	separation
Line spacing	2.54 mm [ .1 in ]
sealing ring	Without
stabilizing device	Without
plate support	Without
stress relief	Without
Connector terminal load status	Fully loaded
PCB mounting direction	right angle
Number of Positions	16
Rows	2
keying	no
Medium pressure resistance	750 V
Cylinder size	.64 mm [ .025 in ]
Terminal base material	copper alloy
PCB terminal termination area plating materials	tin
Terminal base material	nickel
Terminal protection	Without
Terminal shape	square
Terminal type	Pin
Contact Current Rating (Max) (A)	3
Terminal Contact Plating Thickness (µin)	15
Terminal contact plating material	gold
PCB Termination Methods	Through hole
Termination cylinder length	2.79 mm [ .11 in ]
Terminal Plating Thickness (µin)	100 – 200
Terminal plating materials	Nickel base tin plating
PCB installation and fixation	Without
Panel mount features	Without
Engage connector latch	Without
PCB installation method	Through hole
joint alignment	Without
Centerline (Pitch)	2.54 mm [ .1 in ]
Shell material	thermoplastic
Shell color	black
Joint post length	8.08 mm [ .318 in ]
Working group temperature range (°C)	-65 – 105
High temperature shell	no
High speed serial data connector	no
approved standards	CSA LE7189, UL E28476
UL flammability rating	UL 94V-0
Package quantity	25
Encapsulation method	carton
Comment	The connector can be broken down into the desired number of positions using Hand Tool No. 91406-1 or Tool Kit No. 314818-1. For other tail cable lengt

Preview

Download Datasheet

View All

5-102975-8 Related Products

	5-102975-8	9-102975-0	5-102975-3	4-102975-0	5-102975-7	5-102975-4
Description	16 MODII HDR DRRA B/A .100CL	80 MODII HDR DRRA B/A .100CL	06 MODII HDR DRRA B/A .100CL	80 MODII HDR DRRA B/A .100CL	14 MODII HDR DRRA B/A .100CL	08 MODII HDR DRRA B/A .100CL
Connector type	separation	separation	separation	BOARD CONNECTOR	separation	separation
PCB Connector Component Types	PCB mounting header	PCB mounting header	PCB mounting header	-	PCB mounting header	PCB mounting header
Connectors and terminals terminate to	A printed circuit board	A printed circuit board	A printed circuit board	-	A printed circuit board	A printed circuit board
Line spacing	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]	-	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]
sealing ring	Without	Without	Without	-	Without	Without
stabilizing device	Without	Without	Without	-	Without	Without
plate support	Without	Without	Without	-	Without	Without
stress relief	Without	Without	Without	-	Without	Without
Connector terminal load status	Fully loaded	Fully loaded	Fully loaded	-	Fully loaded	Fully loaded
PCB mounting direction	right angle	right angle	right angle	-	right angle	right angle
Number of Positions	16	80	6	-	14	8
Rows	2	2	2	-	2	2
keying	no	no	no	-	no	no
Medium pressure resistance	750 V	750 V	750 V	-	750 V	750 V
Cylinder size	.64 mm [ .025 in ]	.64 mm [ .025 in ]	.64 mm [ .025 in ]	-	.64 mm [ .025 in ]	.64 mm [ .025 in ]
Terminal base material	nickel	nickel	nickel	-	nickel	nickel
PCB terminal termination area plating materials	tin	tin	tin	-	tin	tin
Terminal protection	Without	Without	Without	-	Without	Without
Terminal shape	square	square	square	-	square	square
Terminal type	Pin	Pin	Pin	-	Pin	Pin
Contact Current Rating (Max) (A)	3	3	3	-	3	3
Terminal Contact Plating Thickness (µin)	15	15	15	-	15	15
Terminal contact plating material	gold	gold	gold	-	gold	gold
PCB Termination Methods	Through hole	Through hole	Through hole	-	Through hole	Through hole
Termination cylinder length	2.79 mm [ .11 in ]	2.79 mm [ .11 in ]	2.79 mm [ .11 in ]	-	2.79 mm [ .11 in ]	2.79 mm [ .11 in ]
Terminal Plating Thickness (µin)	100 – 200	100 – 200	100 – 200	-	100 – 200	100 – 200
Terminal plating materials	Nickel base tin plating	Nickel base tin plating	Nickel base tin plating	-	Nickel base tin plating	Nickel base tin plating
PCB installation and fixation	Without	Without	Without	-	Without	Without
Panel mount features	Without	Without	Without	-	Without	Without
Engage connector latch	Without	Without	Without	-	Without	Without
PCB installation method	Through hole	Through hole	Through hole	-	Through hole	Through hole
joint alignment	Without	Without	Without	-	Without	Without
Centerline (Pitch)	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]	-	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]
Shell material	thermoplastic	thermoplastic	thermoplastic	-	thermoplastic	thermoplastic
Shell color	black	black	black	-	black	black
Joint post length	8.08 mm [ .318 in ]	8.08 mm [ .318 in ]	8.08 mm [ .318 in ]	-	8.08 mm [ .318 in ]	8.08 mm [ .318 in ]
Working group temperature range (°C)	-65 – 105	-65 – 105	-65 – 105	-	-65 – 105	-65 – 105
High temperature shell	no	no	no	-	no	no
High speed serial data connector	no	no	no	-	no	no
approved standards	CSA LE7189, UL E28476	CSA LR7189, UL E28476	CSA LE7189, UL E28476	-	CSA LE7189, UL E28476	CSA LE7189, UL E28476
UL flammability rating	UL 94V-0	UL 94V-0	UL 94V-0	-	UL 94V-0	UL 94V-0
Package quantity	25	50	100	-	100	100
Encapsulation method	carton	carton	carton	-	carton	carton
Comment	The connector can be broken down into the desired number of positions using Hand Tool No. 91406-1 or Tool Kit No. 314818-1. For other tail cable lengt	The connector can be broken down into the desired number of positions using Hand Tool No. 91406-1 or Tool Kit No. 314818-1. For other tail cable lengt	The connector can be broken down into the desired number of positions using Hand Tool No. 91406-1 or Tool Kit No. 314818-1. For other tail cable lengt	-	The connector can be broken down into the desired number of positions using Hand Tool No. 91406-1 or Tool Kit No. 314818-1. For other tail cable lengt	The connector can be broken down into the desired number of positions using Hand Tool No. 91406-1 or Tool Kit No. 314818-1. For other tail cable lengt
