1986711-9: DescriptionSCREWLESS, SW,9P,5.0 PCB; CategoryThe connector; File Size308KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1986711-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1986711-9	-	-	View	Buy Now

1986711-9 Overview

SCREWLESS, SW,9P,5.0 PCB

1986711-9 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	9 weeks 2 days
Samacsys Descripti	SCREWLESS, SW,9P,5.0 PCB
Manufacturer's serial number	1986711
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

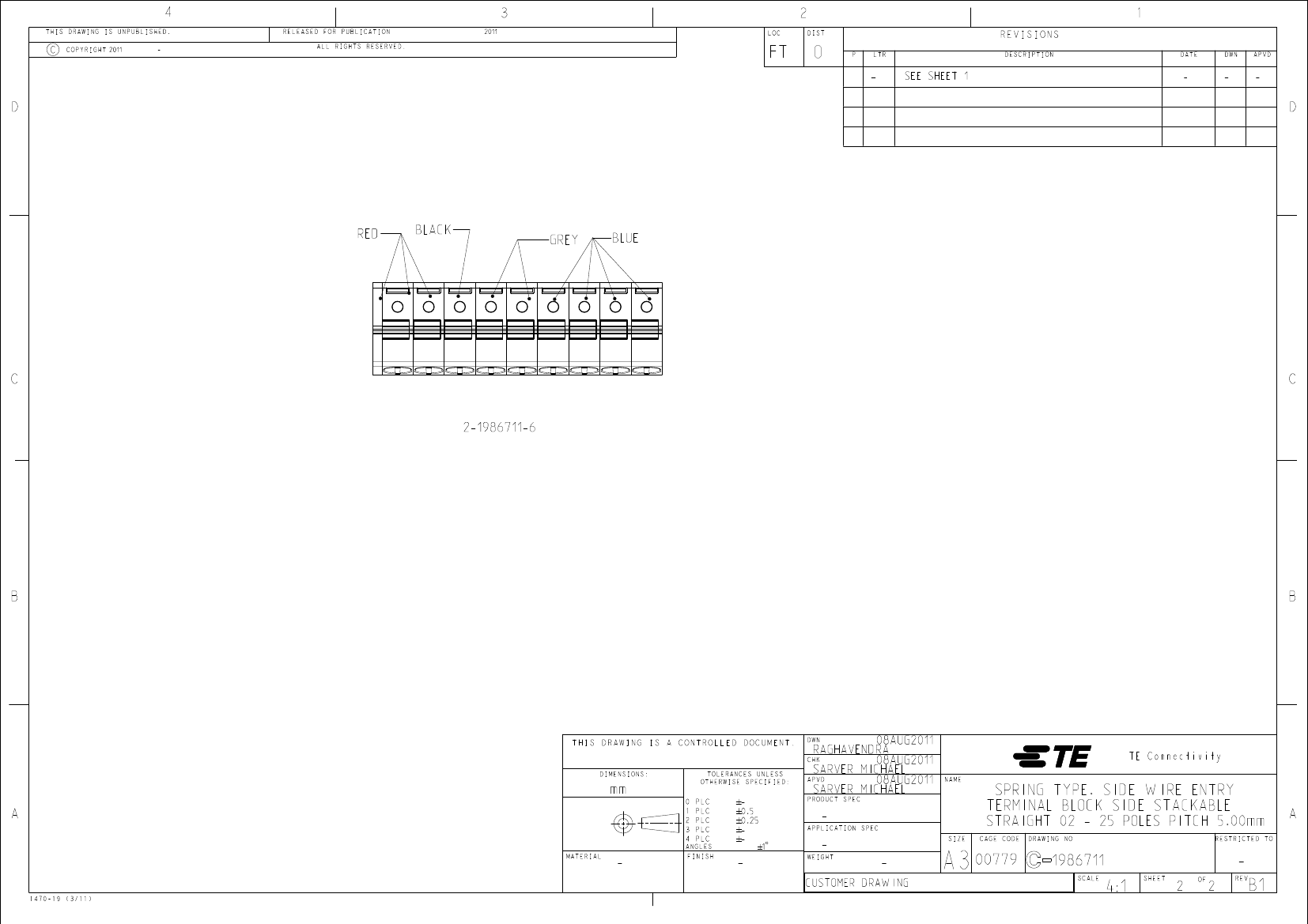

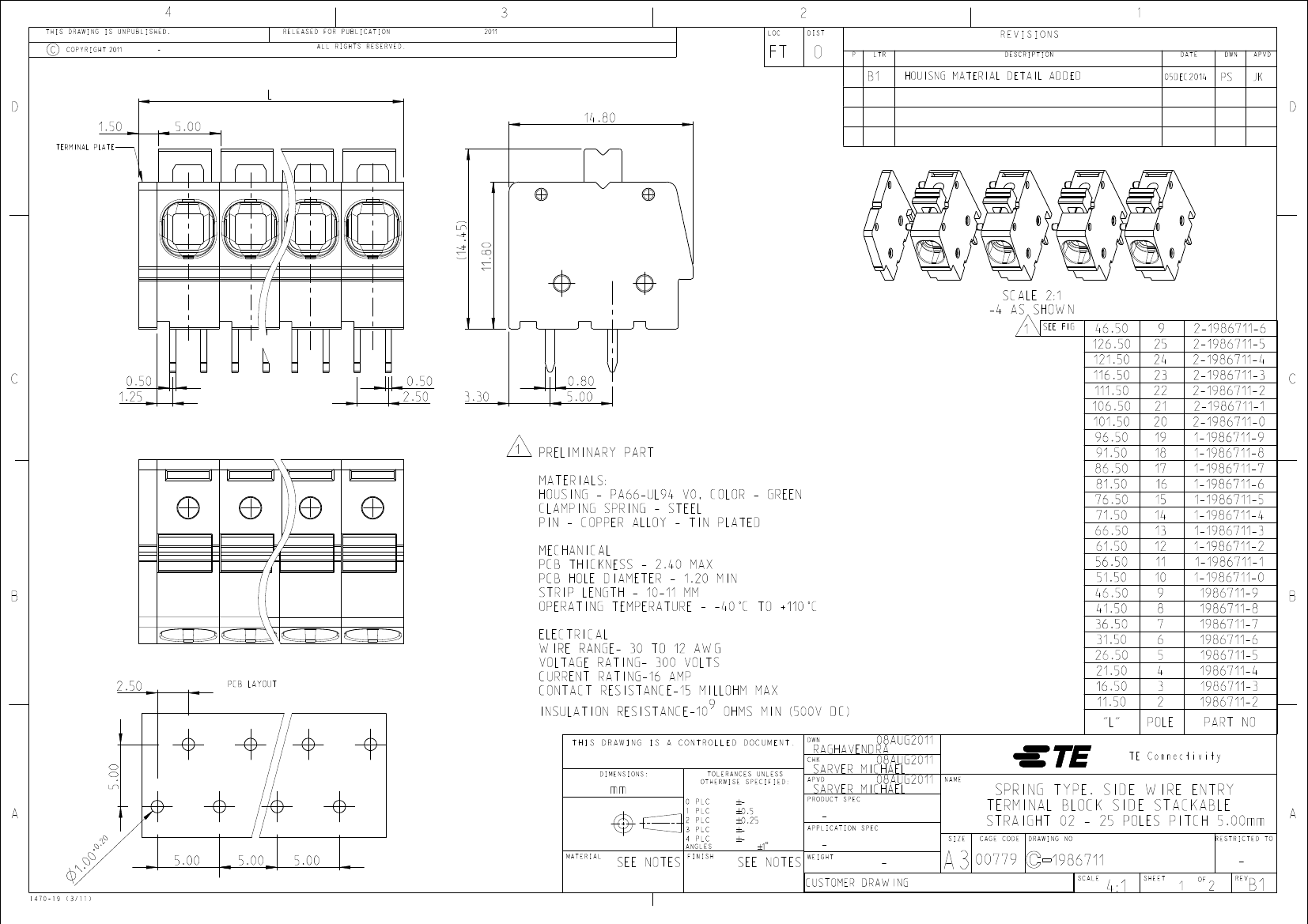

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2011

LOC

DIST

2011

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

1.50

TERMINAL PLATE

HOUISNG MATERIAL DETAIL ADDED

05DEC2014

5.00

14.80

(

14.45

)

11.80

SCALE 2:1

-4 AS SHOWN

SEE FIG

0.50

1.25

0.50

2.50

3.30

0.80

5.00

PRELIMINARY PART

MATERIALS:

HOUSING - PA66-UL94 V0, COLOR - GREEN

CLAMPING SPRING - STEEL

PIN - COPPER ALLOY - TIN PLATED

MECHANICAL

PCB THICKNESS - 2.40 MAX

PCB HOLE DIAMETER - 1.20 MIN

STRIP LENGTH - 10-11 MM

OPERATING TEMPERATURE - -40°C TO +110°C

ELECTRICAL

WIRE RANGE- 30 TO 12 AWG

VOLTAGE RATING- 300 VOLTS

CURRENT RATING-16 AMP

CONTACT RESISTANCE-15 MILLOHM MAX

INSULATION RESISTANCE-10 OHMS MIN (500V DC)

DWN

THIS DRAWING IS A CONTROLLED DOCUMENT.

2.50

PCB LAYOUT

46.50

126.50

121.50

116.50

111.50

106.50

101.50

96.50

91.50

86.50

81.50

76.50

71.50

66.50

61.50

56.50

51.50

46.50

41.50

36.50

31.50

26.50

21.50

16.50

11.50

"L"

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

5.00

MATERIAL

ANGLES

PLC

SEE NOTES

FINISH

SEE NOTES

0.5

0.25

1 $

08AUG2011

RAGHAVENDRA

CHK

08AUG2011

SARVER MICHAEL

APVD

08AUG2011

NAME

SARVER MICHAEL

PRODUCT SPEC

APPLICATION SPEC

POLE

2-1986711-6

2-1986711-5

2-1986711-4

2-1986711-3

2-1986711-2

2-1986711-1

2-1986711-0

1-1986711-9

1-1986711-8

1-1986711-7

1-1986711-6

1-1986711-5

1-1986711-4

1-1986711-3

1-1986711-2

1-1986711-1

1-1986711-0

1986711-9

1986711-8

1986711-7

1986711-6

1986711-5

1986711-4

1986711-3

1986711-2

PART NO

5.00

TE Connectivity

SPRING TYPE. SIDE WIRE ENTRY

TERMINAL BLOCK SIDE STACKABLE

CAGE CODE DRAWING NO

WEIGHT

CUSTOMER DRAWING

00779

SIZE

STRAIGHT 02 - 25 POLES PITCH 5.00mm

RESTRICTED TO

1986711

SCALE

1470-19 (3/11)

4:1

SHEET

REV
