1375582-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1375582-3

1375582-3: Description(1375582-3) 04 MTE VERTICAL SMT HDR 15 AU; CategoryThe connector The connector; File Size385KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1375582-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1375582-3	-	-	View	Buy Now

1375582-3 Overview

(1375582-3) 04 MTE VERTICAL SMT HDR 15 AU

1375582-3 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1910977601
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	04 MTE VERTICAL SMT HDR 15 AU
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-09 20:32:13
YTEOL	6.83
Other features	AMPMODU
Board mount options	SPLIT BOARD LOCK
body width	0.263 inch
subject depth	0.535 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	75 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	3A
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LATCHING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	5.7404 mm
Panel mounting	NO
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	CSA, LR, U
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N

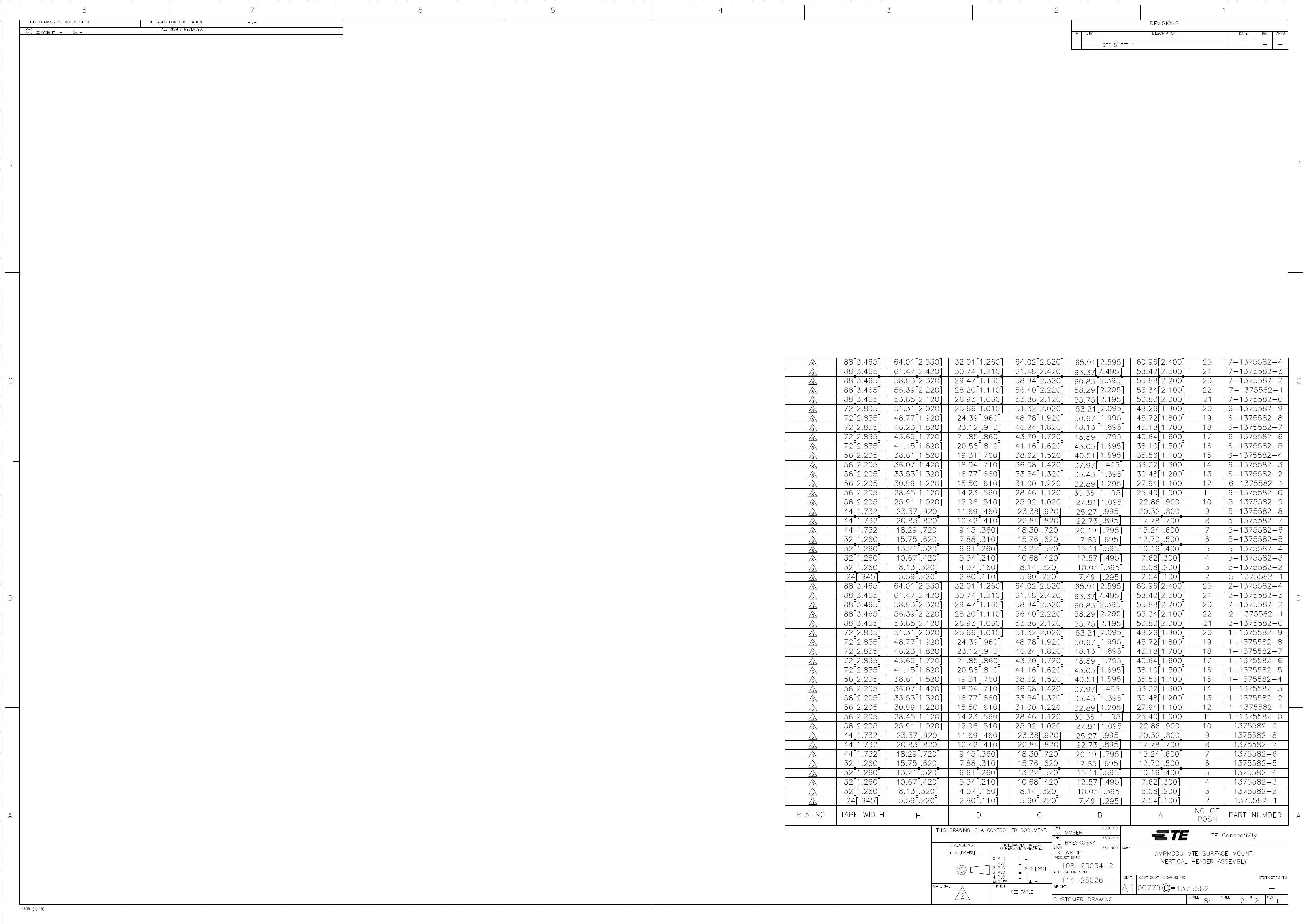

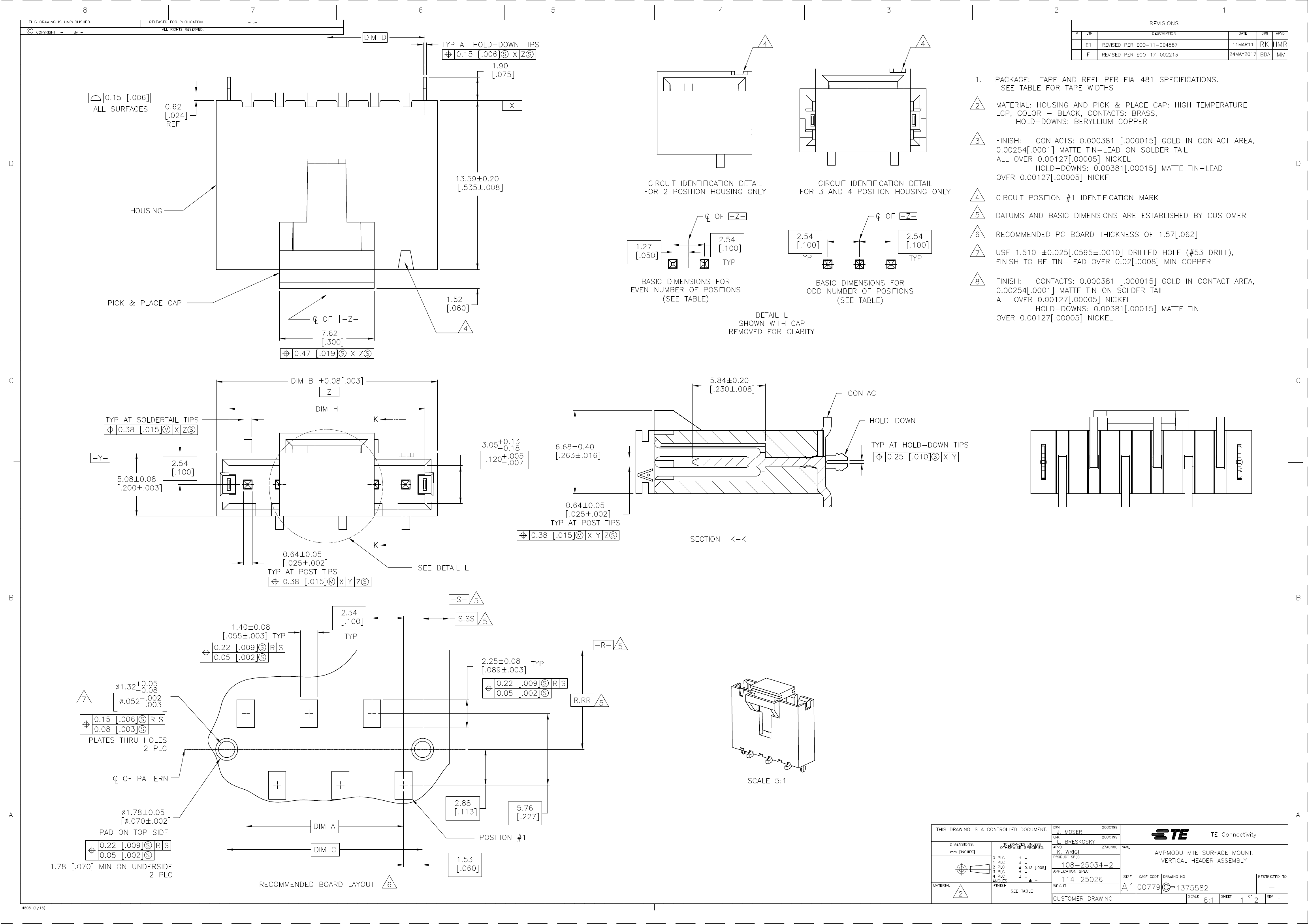

Preview

Download Datasheet

View All
