FLE-175-01-G-DV datasheet, PDF

Datasheet> All Categories > The connector> The connector> FLE-175-01-G-DV

FLE-175-01-G-DV: Descriptionconn rcpt .05" 150pos dual smd; CategoryThe connector The connector; File Size237KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FLE-175-01-G-DV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FLE-175-01-G-DV	-	-	View	Buy Now

FLE-175-01-G-DV Overview

conn rcpt .05" 150pos dual smd

FLE-175-01-G-DV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	150 Position, Cost Effective Surface Mount Socket, 0.050" Pitch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	150
Base Number Matches	1

Preview

Download Datasheet

View All

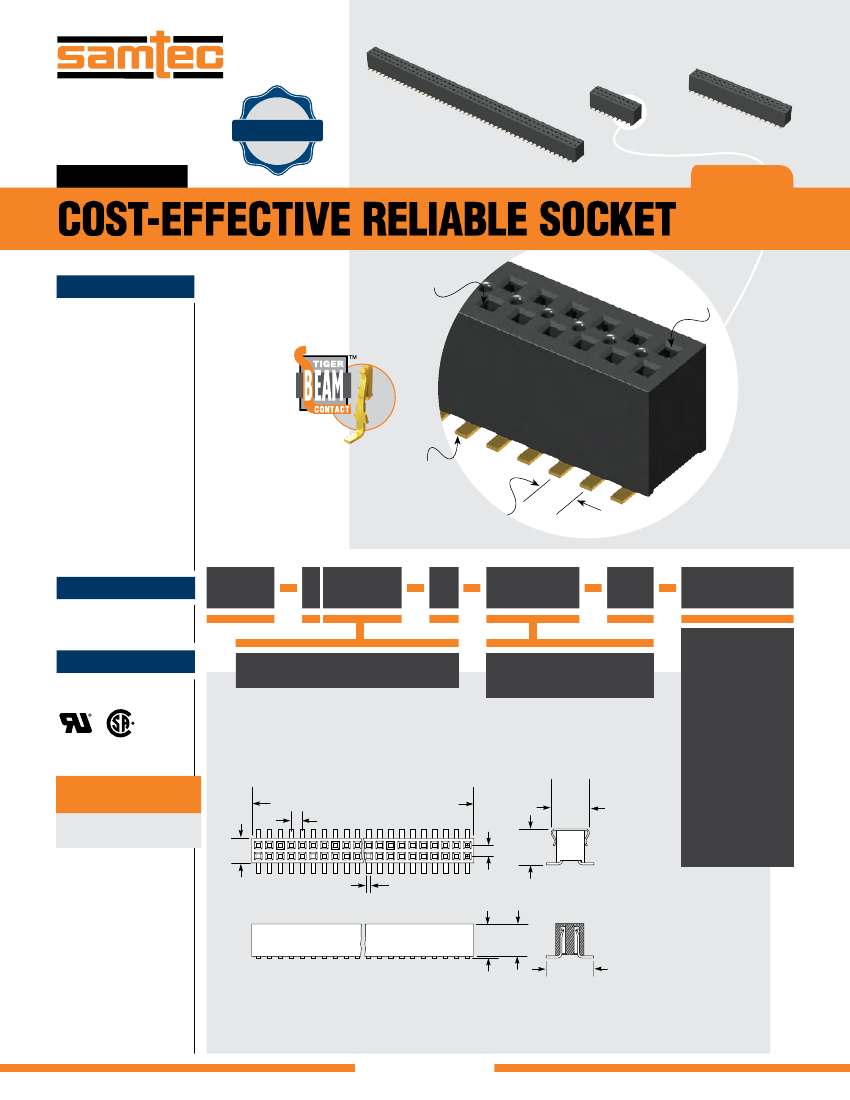

F-217

FLE–110–01–G–DV

10 YEAR MFG

WITH 30 µ" GOLD

EXTENDED LIFE

PRODUCT

HIGH MATING

CYCLES

FLE–120–01–G–DV

FLE–150–01–G–DV

(1.27 mm) .050"

FLE SERIES

COST-EFFECTIVE RELIABLE SOCKET

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?FLE

Insulator Material:

Black Liquid

Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au over 50 µ" (1.27 µm) Ni

Current Rating:

2 A per pin

(6 adjacent pins powered)

Operating Temp Range:

-55 °C to +125 °C

Contact Resistance:

15 mW

Insertion Depth:

(1.83 mm) .072" to

(4.37 mm) .172" or

pass-through

Normal Force:

100 grams (0.98 N)

Max Cycles:

100+

RoHS Compliant:

Yes

Board Mates:

FTSH, FTS, FW

Cable Mates:

FFMD

, FMTP

Tiger Beam

™

contact

Ideal for

pass-through

applications

Surface

mount

Note:

Standard FFMD callout

Available with optional

pick & place pads

(1.27 mm) .050"

micro pitch

will not mate with FLE, SFMC.

Must use gold plated callouts.

(See drawing on web.)

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

FLE

NO. PINS

PER ROW

PLATING

OPTION

OPTIONS

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

02 thru 50

= 10 µ" (0.25 µm) Gold

–G

= Alignment Pin

(Metal or plastic at

Samtec discretion)

(3 positions minimum)

–A

FILE NO. E111594

FILE NO: 090871_0_000

= (4.25 mm) .167" DIA

Polyimide film

Pick & Place Pad

(5 positions minimum)

(6.35)

.250

(4.17)

.164

(4.74)

.187

(0.51)

.020

–K

ALSO AVAILABLE

(MOQ Required)

• Other platings

Contact Samtec.

No. of Positions x (1.27) .050 + (0.11) .0045

(1.27)

.050

(3.33)

.131

(1.27)

.050

= Metal Pick &

Place Pad

(5 positions minimum)

–P

= Tape & Reel

–TR

–P OPTION

(4.55) (4.36)

.179 .172

(4.60)

.181

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

WWW.SAMTEC.COM
