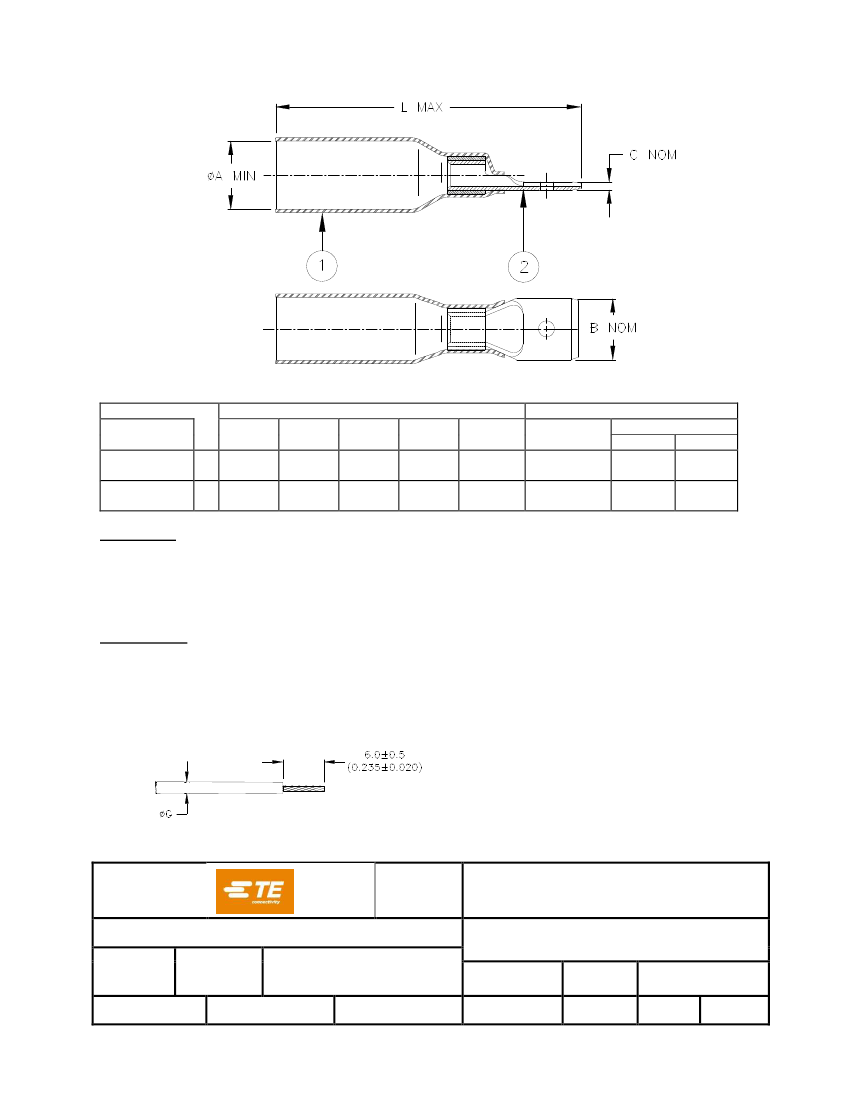

CUSTOMER DRAWING
Product Revision
Product
Name
B-106-4631
B-106-4632
B
B
øA
min
4.0
(0.155)
4.6
(0.180)
Product Dimensions
B
C
L
nom
nom
max
6.35
0.8
32.0
(0.250)
(0.030)
(1.260)
6.35
0.8
33.0
(0.250)
(0.030)
(1.300)
Color (1)
Red
Blue
Wire Dimensions
Size Range
øG
2
mm (AWG)
min
max
0.5 - 1.0
1.4
4.0
(AWG 22-18)
(0.055)
(0.155)
1.5 - 2.5
2.0
4.6
(AWG 16-14)
(0.080)
(0.180)
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent color (1), radiation cross-linked modified polyamide with
thermoplastic adhesive coating inside.
2. BLADE TERMINAL: Tin-plated brass.
BASE METAL: C260 (C26000) or C268 Brass.
PLATING: Tin-plated per ASTM B545, Class A.
APPLICATION
1. These controlled crimp devices are designed to terminate a tin-plated or bare copper stranded wire having an insulation rated
for at least 75C to a blade terminal. It will provide a splash proof and strain relief connection.
UL listed wire connector 3Z11.
2. Temperature range: -55C to +125C.
3. For application tooling and installation, see RPIP-684-00.
For best results, prepare the wire as shown:
Raychem
Devices
Unless otherwise specified dimensions are in millimeters.
[Inches dimensions are shown in brackets]
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
ANGLES: N/A
ROUGHNESS IN
MICRON
Tyco Electronics reserves the right to amend
this drawing at any time. Users should evaluate
the suitability of the product for their
application.
TITLE:
DURASEAL BLADE TERMINAL
DOCUMENT NO.:
B-106-4XXX
PROD. REV.:
DOC. REV:
DATE:
SEE TABLE
CAGE CODE :
06090
J
SCALE:
None
22-FEB-2017
SIZE:
A
SHEET:
1 of 1
PREPARED BY:
mforonda
REPLACES:
D030372
DCR NUMBER:
ECO-17-002136
© 2017 TE CONNECTIVITY CORPORATION. ALL RIGHTS RESERVED.
If this document is printed it becomes uncontrolled. Check the latest revision
