3030-18-0103-00 datasheet, PDF

3030-18-0103-00: Descriptionidc socket 0.100 18 pos; CategoryThe connector; File Size230KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric View All

3030-18-0103-00 Overview

idc socket 0.100 18 pos

Parameter Name	Attribute value
Datasheets

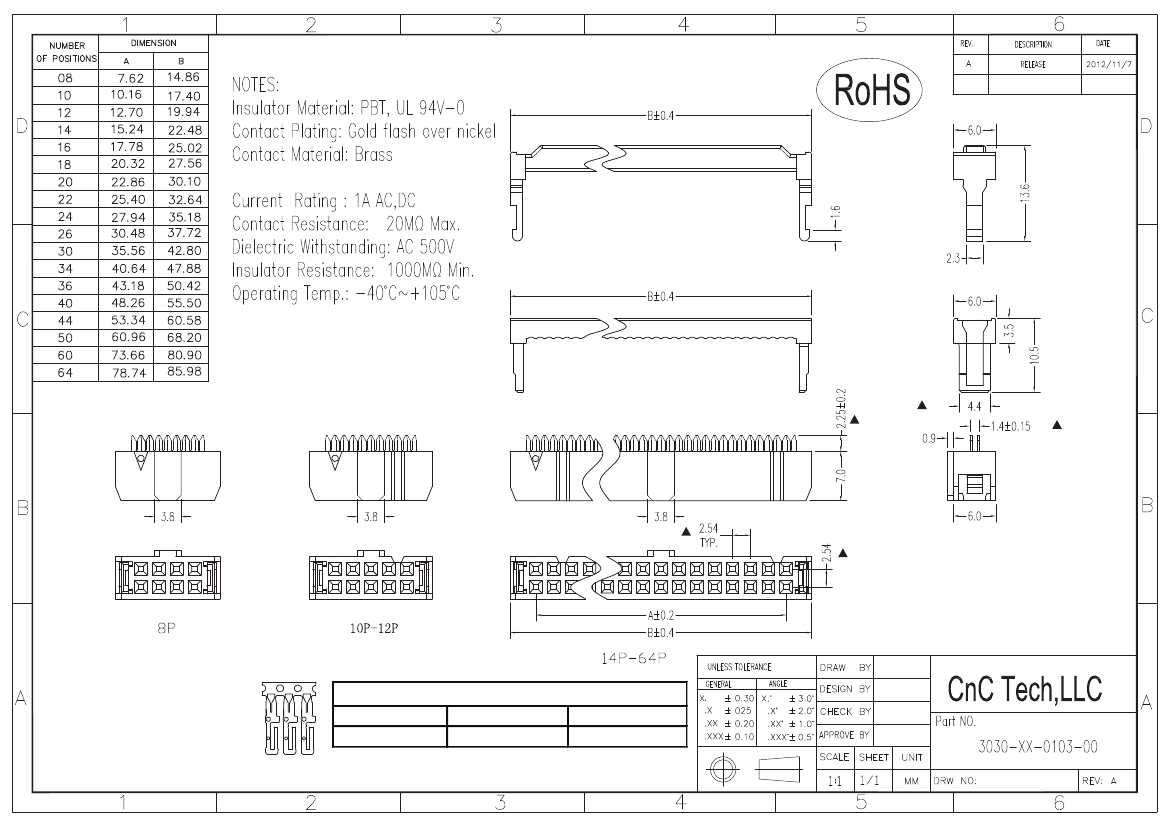

3030-xx-0103-00 Drawing
Product Photos
3030-18 SERIES
Standard Package	1,800
Category	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Tray
Connector Type	Socke
Contact Type	Female Socke
Number of Positions	18
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Fastening Type	-
Cable Terminati	IDC
Wire Type	Ribbon Cable
Wire Gauge	-
Features	Feed Through
Polarizing Key, Strain Relief
Contact Finish	Gold
Contact Finish Thickness	Flash
Col	-

Mating Part Number

3020-ALL

3010-XX-001-11-XX 3010-XX-001-13-XX

3010-XX-002-13-XX 3010-XX-003-13-XX
