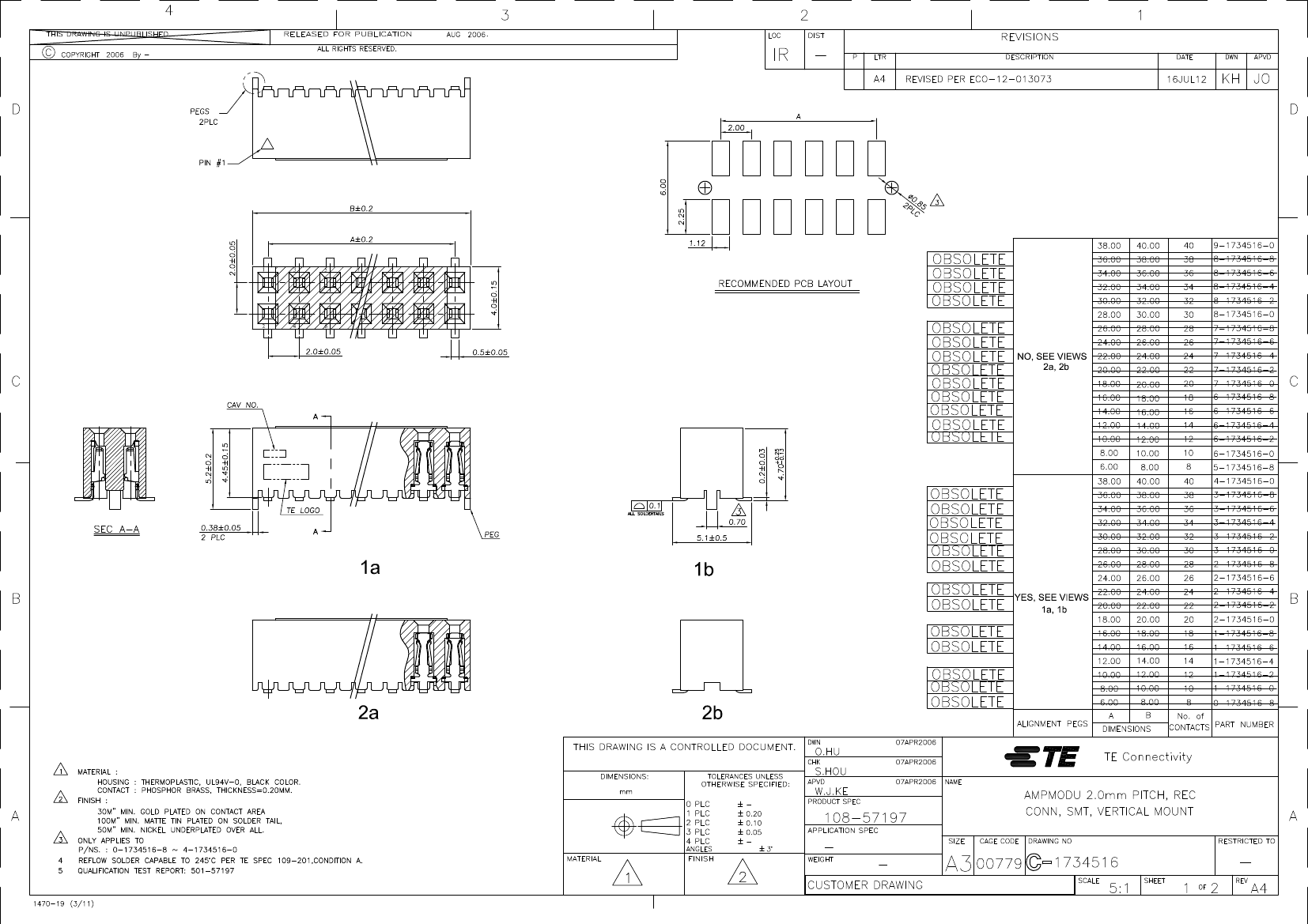

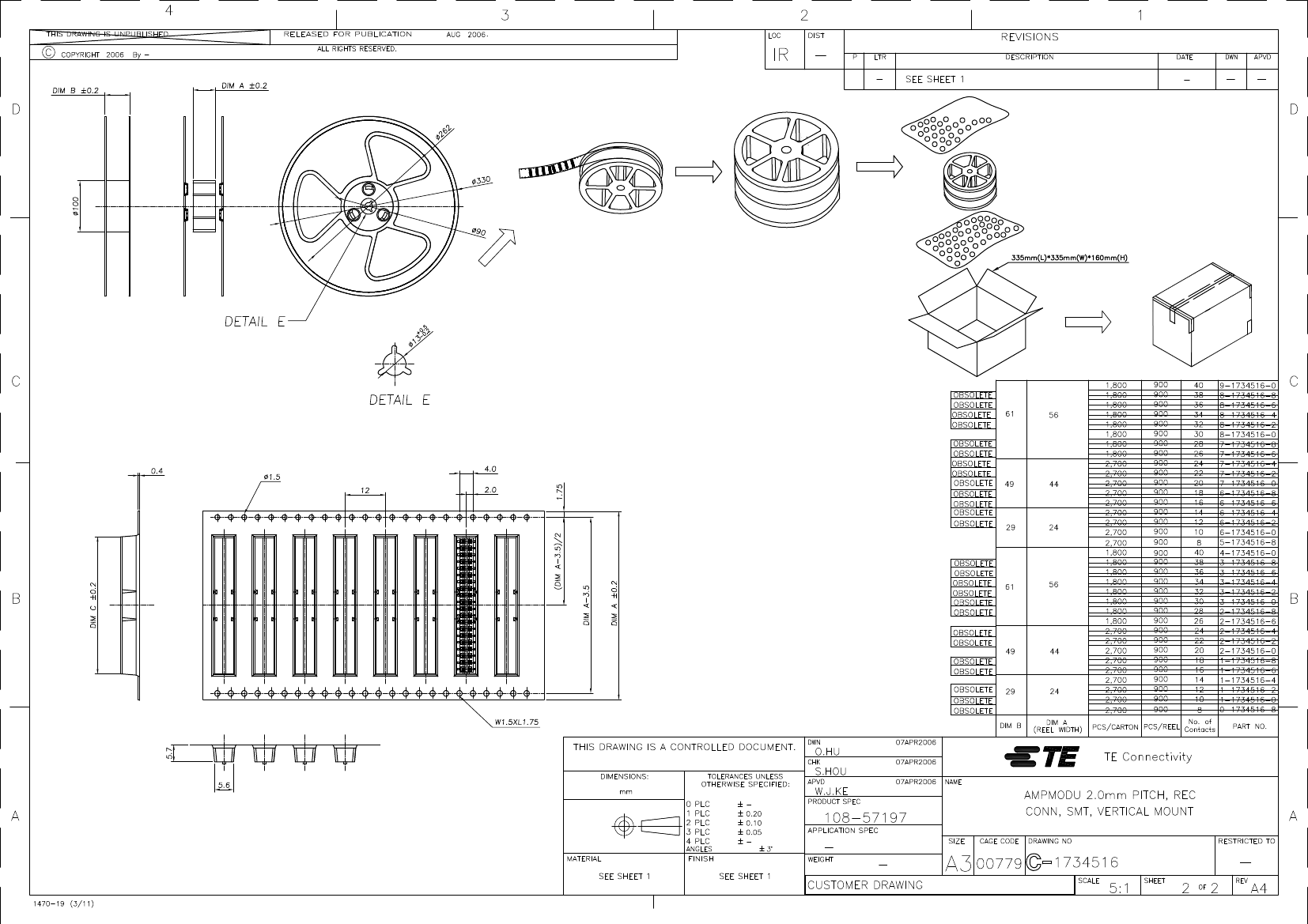

RCPT, 2MM, 26P, VRT SMT, 30Au", LOCK
| Parameter Name | Attribute value |
| Brand Name | TE Connectivity |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compli |
| Factory Lead Time | 11 weeks 4 days |
| Board mount options | PEG |
| body width | 0.157 inch |
| subject depth | 0.185 inch |
| body length | 1.024 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 650VAC V |
| Durability | 50 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.7592 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 2 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 26 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 2-1734516-6 | 4-1734516-0 | 1-1734516-4 | 6-1734516-0 | 9-1734516-0 | 5-1734516-8 | |
|---|---|---|---|---|---|---|
| Description | RCPT, 2MM, 26P, VRT SMT, 30Au", LOCK | RCPT, 2MM, 40P, VRT SMT, 30Au", LOCK | RCPT, 2MM, 14P, VRT SMT, 30Au", LOCK | RCPT, 2MM, 10P, VRT SMT, 30Au", W/O LOCK | RCPT, 2MM, 40P, VRT SMT, 30Au", W/O LOCK | RCPT, 2MM, 8P, VRT SMT, 30Au", W/O LOCK |
| Brand Name | TE Connectivity | - | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity |
| Is it lead-free? | Lead free | - | - | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | - | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compli | - | not_compliant | compliant | compliant | compliant |
| Factory Lead Time | 11 weeks 4 days | - | - | 14 weeks 5 days | 14 weeks 5 days | 14 weeks 5 days |
| Board mount options | PEG | - | PEG | PEG | PEG | PEG |
| body width | 0.157 inch | - | 0.157 inch | 0.157 inch | 0.157 inch | 0.157 inch |
| subject depth | 0.185 inch | - | 0.185 inch | 0.185 inch | 0.185 inch | 0.185 inch |
| body length | 1.024 inch | - | 0.551 inch | 0.394 inch | 1.575 inch | 0.315 inch |
| Body/casing type | RECEPTACLE | - | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | - | NOT APPLICABLE | NOT APPLICABLE | NOT APPLICABLE | NOT APPLICABLE |
| Contact point gender | FEMALE | - | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | - | NOT APPLICABLE | NOT APPLICABLE | NOT APPLICABLE | NOT APPLICABLE |
| contact mode | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | - | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | - | NO | NO | NO | NO |
| Dielectric withstand voltage | 650VAC V | - | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Durability | 50 Cycles | - | 50 Cycles | 50 Cycles | 50 Cycles | 50 Cycles |
| Filter function | NO | - | NO | NO | NO | NO |
| IEC compliance | NO | - | NO | NO | NO | NO |
| Insulation resistance | 1000000000 Ω | - | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | - | BLACK | BLACK | BLACK | BLACK |
| insulator material | THERMOPLASTIC | - | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE |
| MIL compliance | NO | - | NO | NO | NO | NO |
| Plug contact pitch | 0.079 inch | - | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | - | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Mixed contacts | NO | - | NO | NO | NO | NO |
| Installation option 1 | LOCKING | - | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | - | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | - | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | - | ONE | ONE | ONE | ONE |
| PCB row number | 2 | - | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | - | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | - | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | - | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 3.7592 mm | - | 3.7592 mm | 3.7592 mm | 3.7592 mm | 3.7592 mm |
| Plating thickness | 30u inch | - | 30u inch | 30u inch | 30u inch | 30u inch |
| polarization key | POLARIZED HOUSING | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1 A | - | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL | - | UL | CSA, LR, U | CSA, LR, U | CSA, LR, U |
| Terminal pitch | 2 mm | - | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | SURFACE MOUNT | - | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 26 | - | 14 | 10 | 40 | 8 |
| UL Flammability Code | 94V-0 | - | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Objectid | - | - | 1716845022 | 1855747204 | 1715442965 | 1715442926 |
| Samacsys Description | - | - | RCPT, 2MM, 14P, VRT SMT, 30Au", LOCK | RCPT, 2MM, 10P, VRT SMT, 30Au", W/O LOCK | Board to Board & Mezzanine Connectors RCPT, 2MM, 40P VRT SMT 30AU W/O LK | Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Connector Contact Load Condition Fully Loaded | Board-to-Board Configuration Parallel | Stackable Yes | Number of Rows 2 | Number of Positions 8 | Contact Features: Contact Type Socket | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Mating Area Plating Material Thickness .76 MICM | PCB Contact Termination Area Plating Material Tin | Mating Square Post Dimension .5 MM | Contact Current Ra |
| Samacsys Manufacturer | - | - | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity |
| Samacsys Modified On | - | - | 2020-10-10 19:58:16 | 2020-10-10 19:58:16 | 2023-03-07 16:10:32 | 2024-04-04 10:57:02 |
| YTEOL | - | - | 8.4 | 8.4 | 8.4 | 8.4 |
| Electromagnetic interference shielding | - | - | NO | NO | NO | NO |
| empty shell | - | - | NO | NO | NO | NO |
| Power Connector Ratings | - | - | 1A | 1A | 1A | 1A |
| Number of ports | - | - | 1 | 1 | 1 | 1 |
| Panel mounting | - | - | NO | NO | NO | NO |
