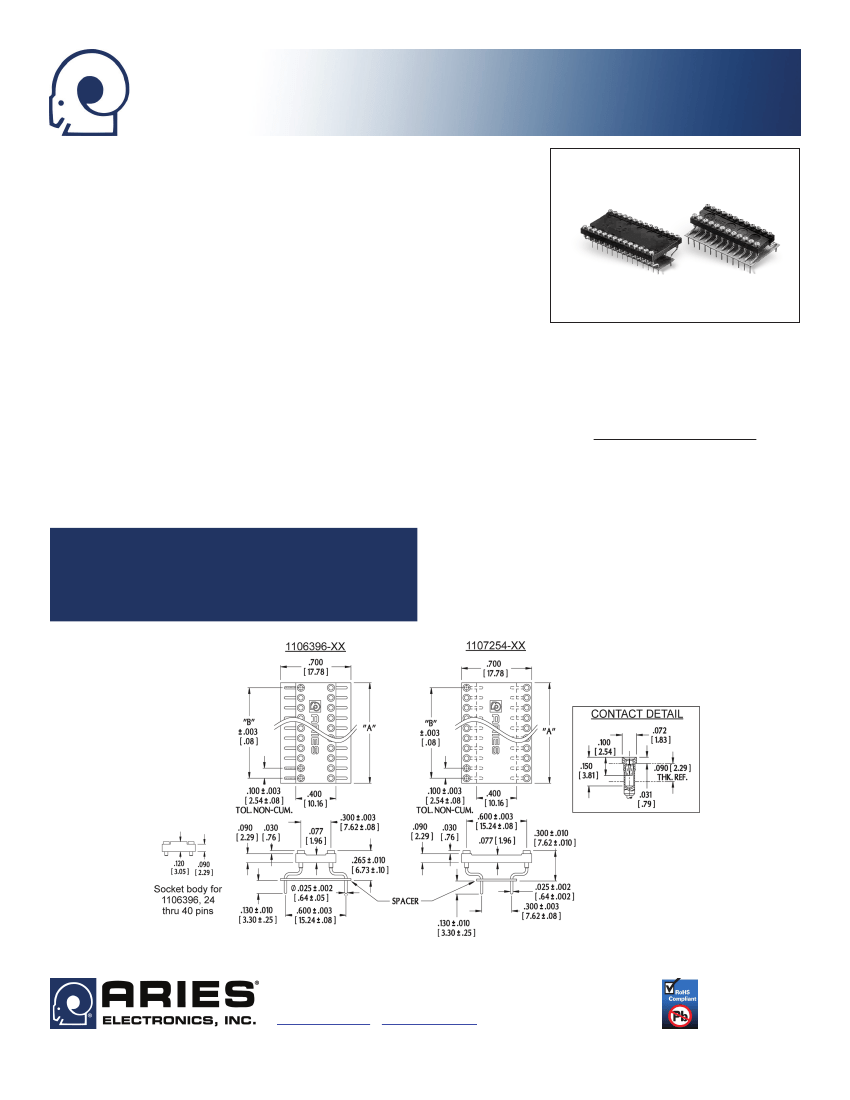

P/Ns 1106396 and 1107254
Row-to-Row DIP Adapter Socket
FEATURES
• Adapter Socket allows the use of 0.300 [7.62] center devices when the PCB is
drilled on 0.600 [15.24] centers and vice versa, giving the flexibility of using 0.600
[15.24] or 0.300 [7.62] center devices in the same application.
GENERAL SPECIFICATIONS
• SOCKET BODY: black UL 94V-0 glass-filled 4/6 Nylon
• PIN BODY: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M
• PIN BODY PLATING: 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ
[2.54µ] Ni per SAE AMS-QQ-N-290B
• 4-FINGERED COLLET CONTACT: BeCu per UNS C17200, ASTM B194-08
• CONTACT PLATING: 30µ [0.762µ] min. Au per MIL-G-45204 over 50µ [1.27µ]
min. Ni per SAE AMS-QQ-N-290
• CONTACT CURRENT RATING: 3 amps
• OPERATING TEMPERATURE: 221°F [105°C]
• INSERTION FORCE: 180g/pin; based on 0.018 [0.46] dia. test lead
• WITHDRAWAL FORCE: 90g/pin; based on 0.018 [0.46] dia. test lead
• NORMAL FORCE: 140g/pin; based on 0.018 [0.46] dia. test lead
• ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110-0.150 [2.79-3.81] long
MOUNTING CONSIDERATIONS
• SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.
CUSTOMIZATION:
In addition to the standard products shown
on this page, Aries specializes in custom design and production.
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
right to change product general specifications without notice.
ORDERING INFORMATION
P/N 1106396-XX
for 0.300 DIP-to-0.600
PCB [7.62 to 15.24] Adapter, where XX =
number of pins (6 thru 40)
P/N 1107254-XX
for 0.600 DIP-to-0.300
PCB [15.24 to 7.62] Adapter, where XX =
number of pins (6 thru 40)
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
12030
Rev. AB
