Datasheet> All Categories > Discrete semiconductor> The transistor> 3SK260YTE85R
PDF
Preview

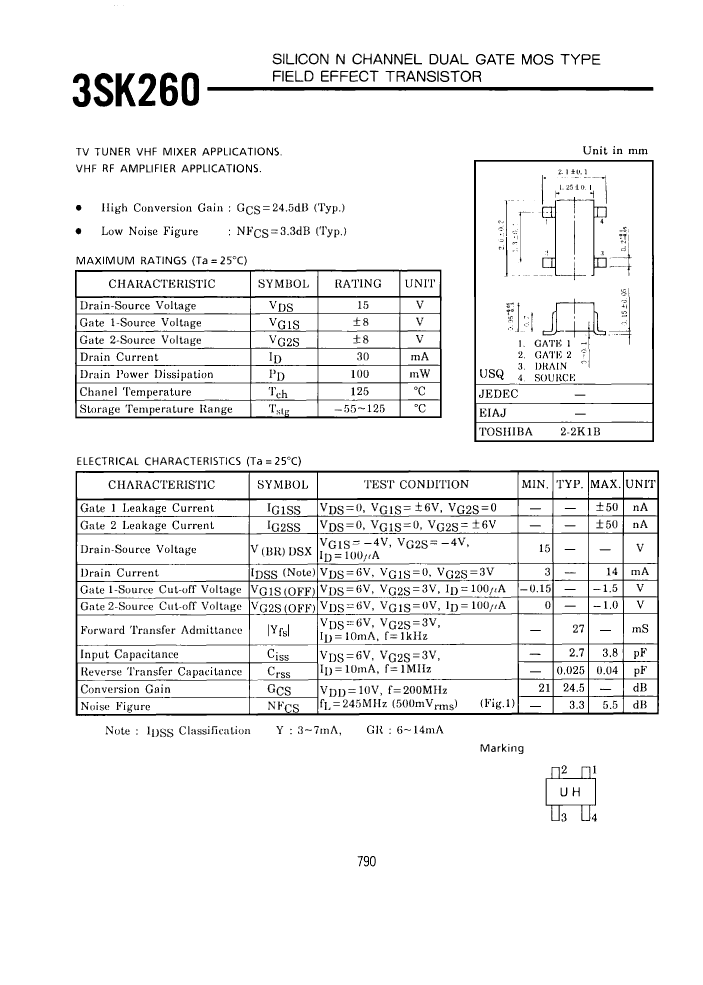

3SK260YTE85R

Description
TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal
CategoryDiscrete semiconductor    The transistor
File Size122KB，4 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric Compare View All

3SK260YTE85R Overview

TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal

3SK260YTE85R Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instructionSMALL OUTLINE, R-PDSO-G4
Reach Compliance Codeunknow
ConfigurationSINGLE
Minimum drain-source breakdown voltage15 V
Maximum drain current (ID)0.03 A
FET technologyMETAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)0.04 pF
highest frequency bandVERY HIGH FREQUENCY BAND
JESD-30 codeR-PDSO-G4
JESD-609 codee0
Number of components1
Number of terminals4
Operating modeDUAL GATE, DEPLETION MODE
Maximum operating temperature125 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)240
Polarity/channel typeN-CHANNEL
Minimum power gain (Gp)21 dB
Certification statusNot Qualified
surface mountYES
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Base Number Matches1

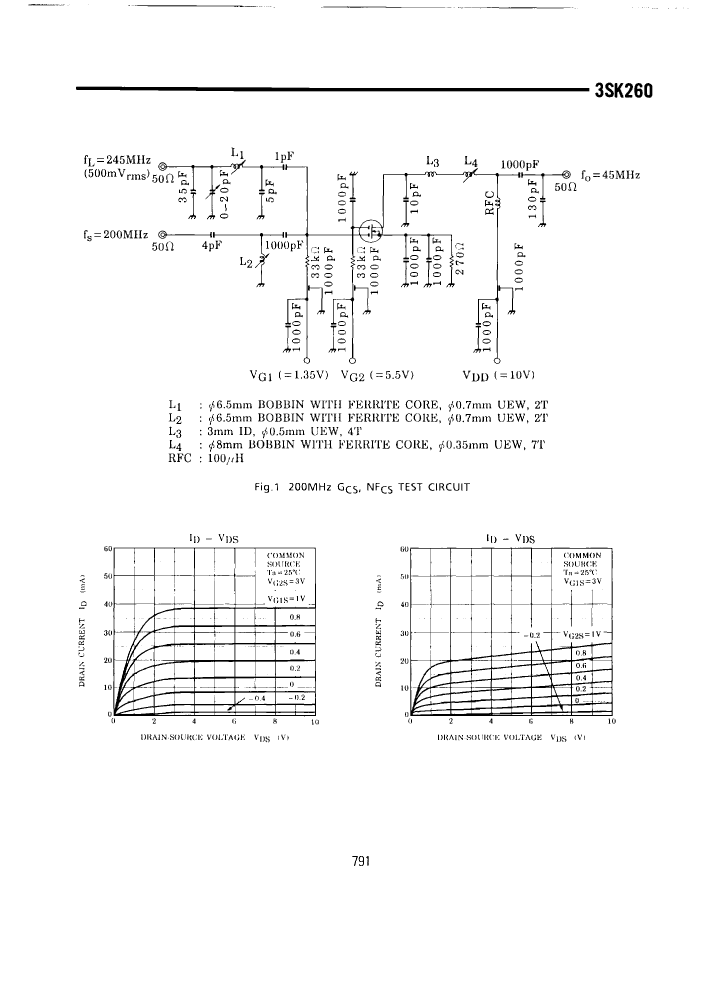

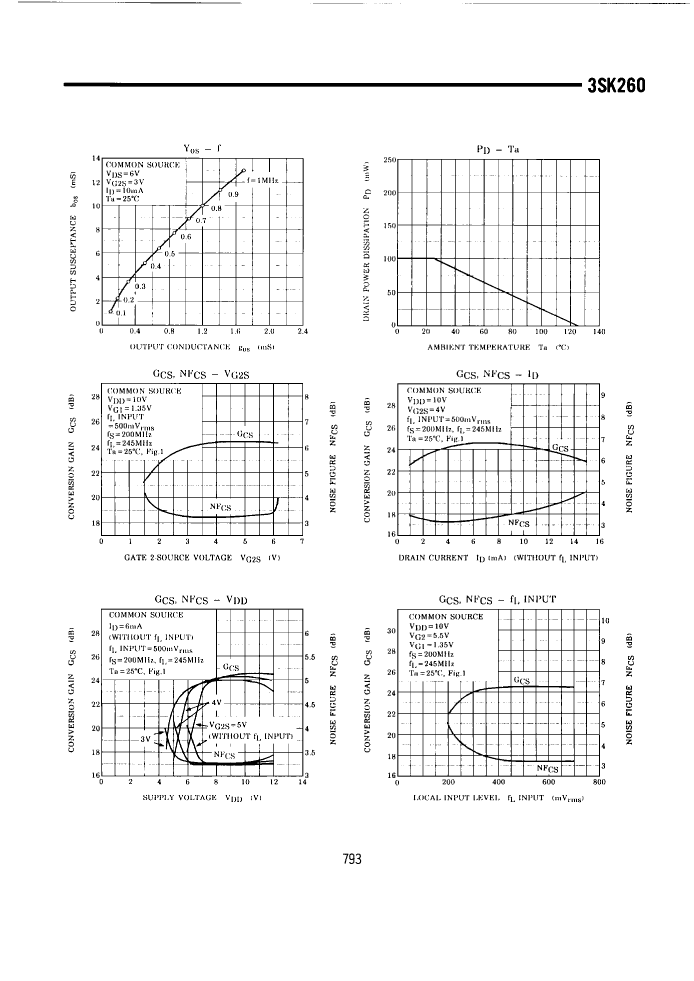

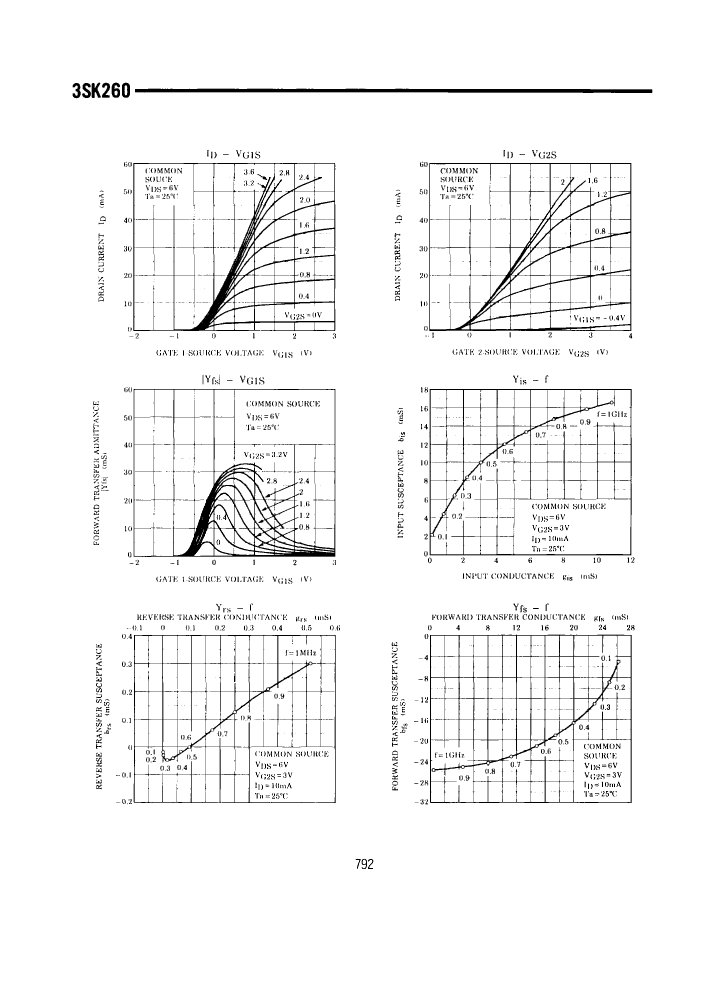

Preview

Download Datasheet

3SK260YTE85R Related Products

3SK260YTE85R 3SK260TE85R 3SK260GRTE85R 3SK260TE85L 3SK260-GRTE85R 3SK260-YTE85R 3SK260GRTE85L 3SK260-YTE85L 3SK260YTE85L 3SK260-GRTE85L
Description TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, FET RF Small Signal
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
package instruction SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code unknow unknown unknown unknown unknown unknown unknown unknown unknown unknown
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Minimum drain-source breakdown voltage 15 V 15 V 15 V 15 V 15 V 15 V 15 V 15 V 15 V 15 V
Maximum drain current (ID) 0.03 A 0.03 A 0.03 A 0.03 A 0.03 A 0.03 A 0.03 A 0.03 A 0.03 A 0.03 A
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss) 0.04 pF 0.04 pF 0.04 pF 0.04 pF 0.04 pF 0.04 pF 0.04 pF 0.04 pF 0.04 pF 0.04 pF
highest frequency band VERY HIGH FREQUENCY BAND VERY HIGH FREQUENCY BAND VERY HIGH FREQUENCY BAND VERY HIGH FREQUENCY BAND VERY HIGH FREQUENCY BAND VERY HIGH FREQUENCY BAND VERY HIGH FREQUENCY BAND VERY HIGH FREQUENCY BAND VERY HIGH FREQUENCY BAND VERY HIGH FREQUENCY BAND
JESD-30 code R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0 e0
Number of components 1 1 1 1 1 1 1 1 1 1
Number of terminals 4 4 4 4 4 4 4 4 4 4
Operating mode DUAL GATE, DEPLETION MODE DUAL GATE, DEPLETION MODE DUAL GATE, DEPLETION MODE DUAL GATE, DEPLETION MODE DUAL GATE, DEPLETION MODE DUAL GATE, DEPLETION MODE DUAL GATE, DEPLETION MODE DUAL GATE, DEPLETION MODE DUAL GATE, DEPLETION MODE DUAL GATE, DEPLETION MODE
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 240 240 240 240 240 240 240 240 240 240
Polarity/channel type N-CHANNEL N-CHANNEL N-CHANNEL N-CHANNEL N-CHANNEL N-CHANNEL N-CHANNEL N-CHANNEL N-CHANNEL N-CHANNEL
Minimum power gain (Gp) 21 dB 21 dB 21 dB 21 dB 21 dB 21 dB 21 dB 21 dB 21 dB 21 dB
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount YES YES YES YES YES YES YES YES YES YES
Terminal surface TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
transistor applications AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER
Transistor component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Base Number Matches 1 1 1 1 1 1 1 1 1 1
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead - - - -
ECCN code - EAR99 - EAR99 EAR99 EAR99 - EAR99 - EAR99
