0757575181 datasheet, PDF - EEWORLD Datasheet

0757575181: Descriptionconn header 2x8 vert brkway tin; CategoryThe connector; File Size303KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

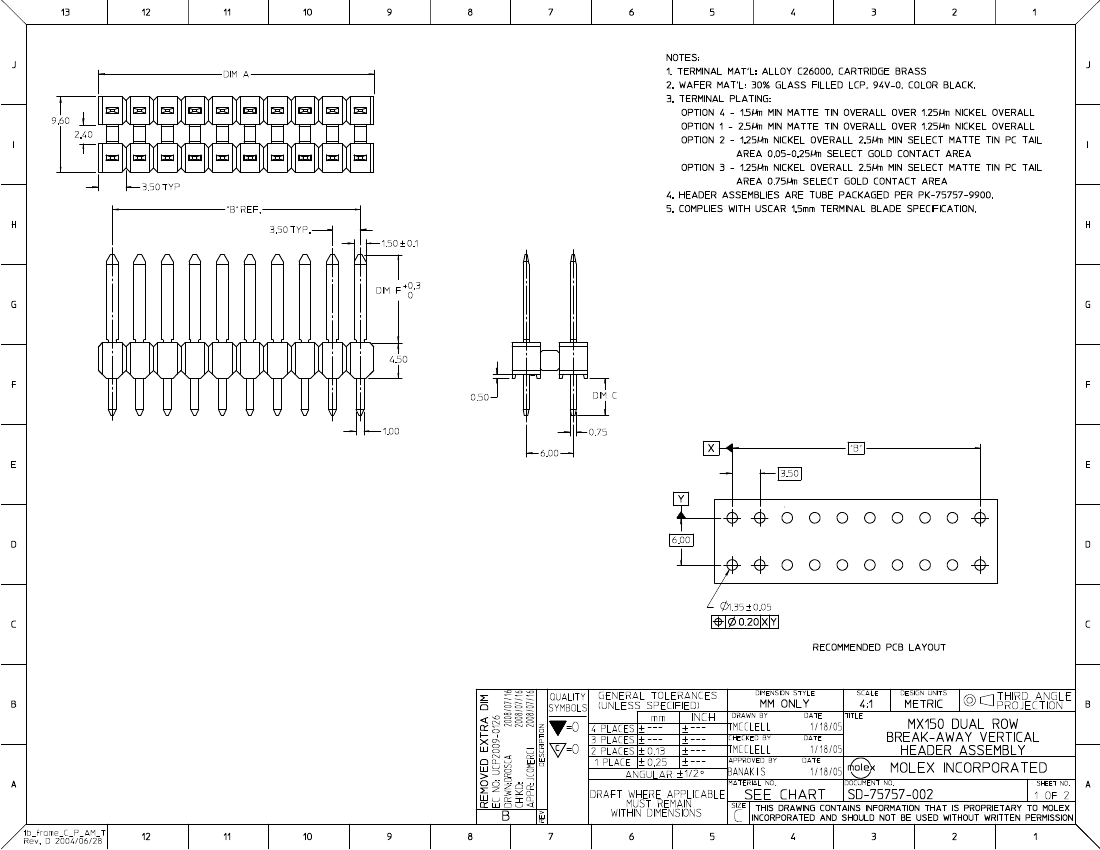

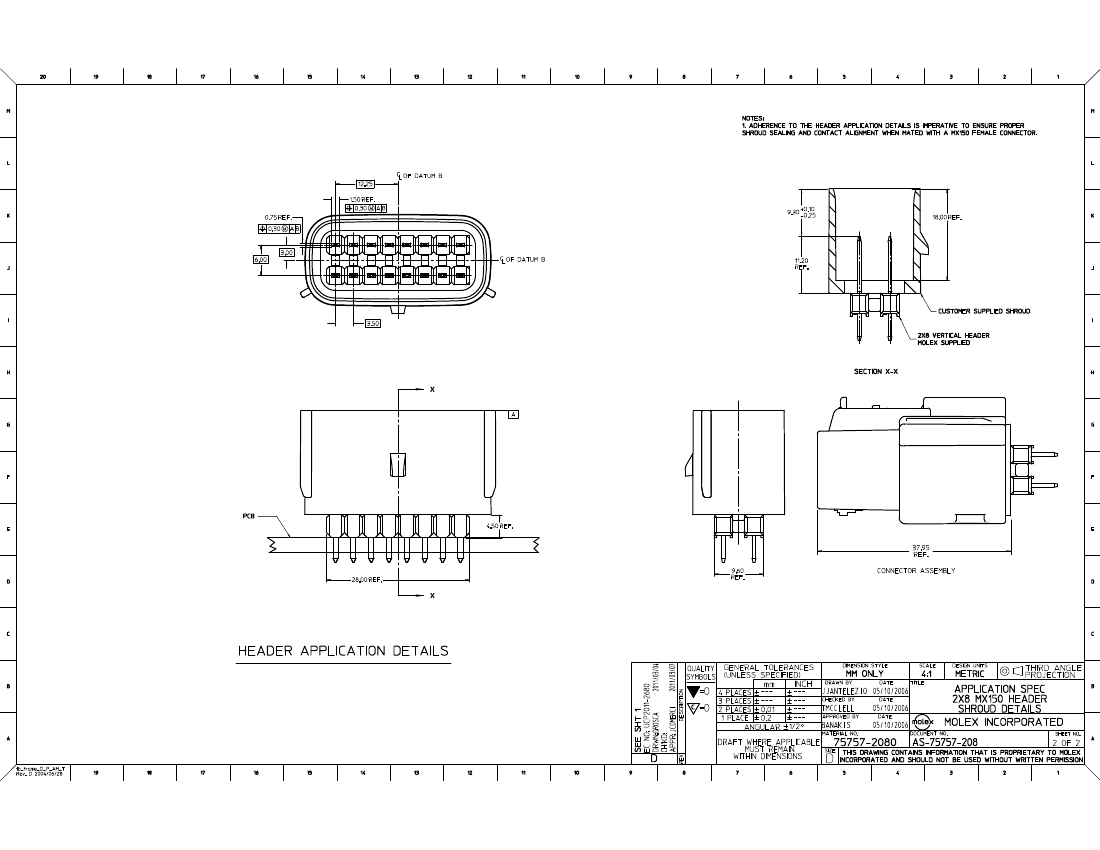

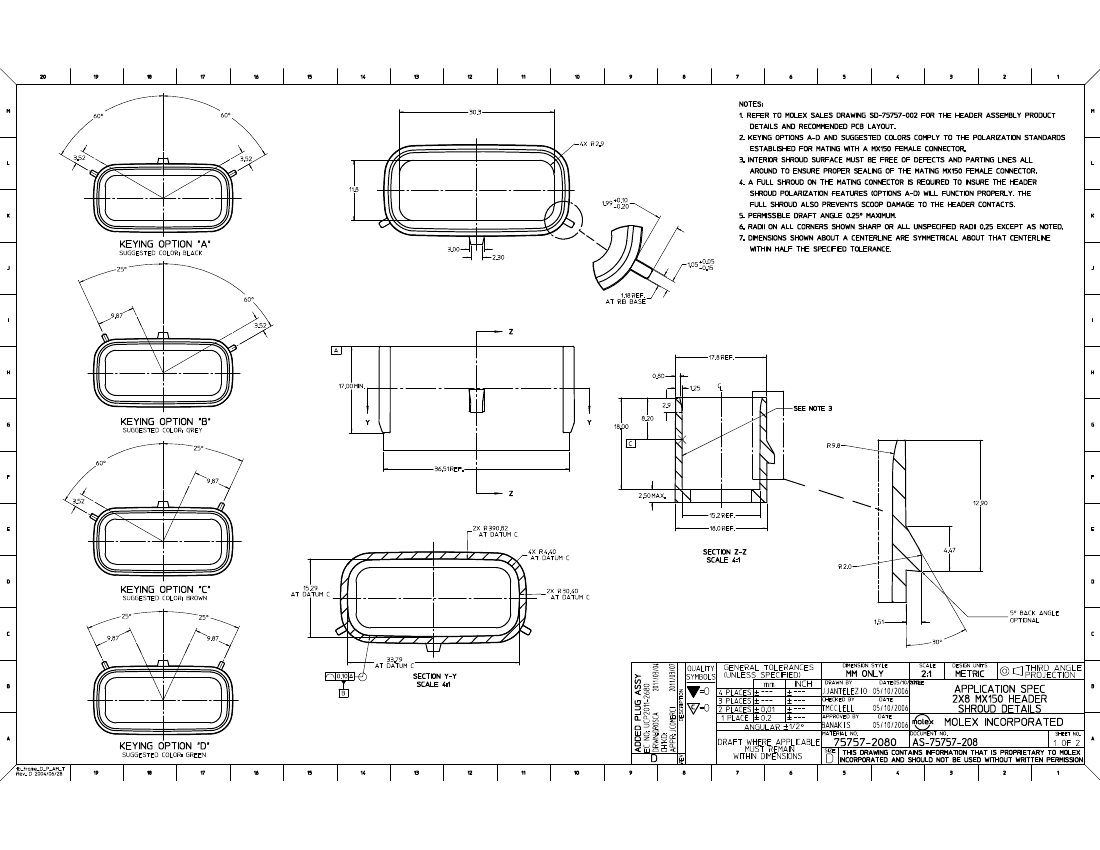

0757575181 Overview

conn header 2x8 vert brkway tin

Parameter Name	Attribute value
Datasheets
0757575181
Transportation Catalog
RoHS Informati
757575181 Cert of Compliance
3D Model
75757-5181.s
PCN Assembly/Origi
75757,75900 Raw Material 06/Feb/2014
Standard Package	1,368
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tube
Contact Type	Male Pi
Connector Type	Header, Unshrouded, Breakaway
Number of Positions	16
Number of Positions Loaded	All
Pitch	0.138" (3.50mm)
Number of Rows	2
Row Spacing	0.236" (6.00mm)
Contact Mating Length	0.633" (16.09mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Ti
Contact Finish Thickness	100µin (2.54µm)
Col	Black
Other Names	75757-5181757575181

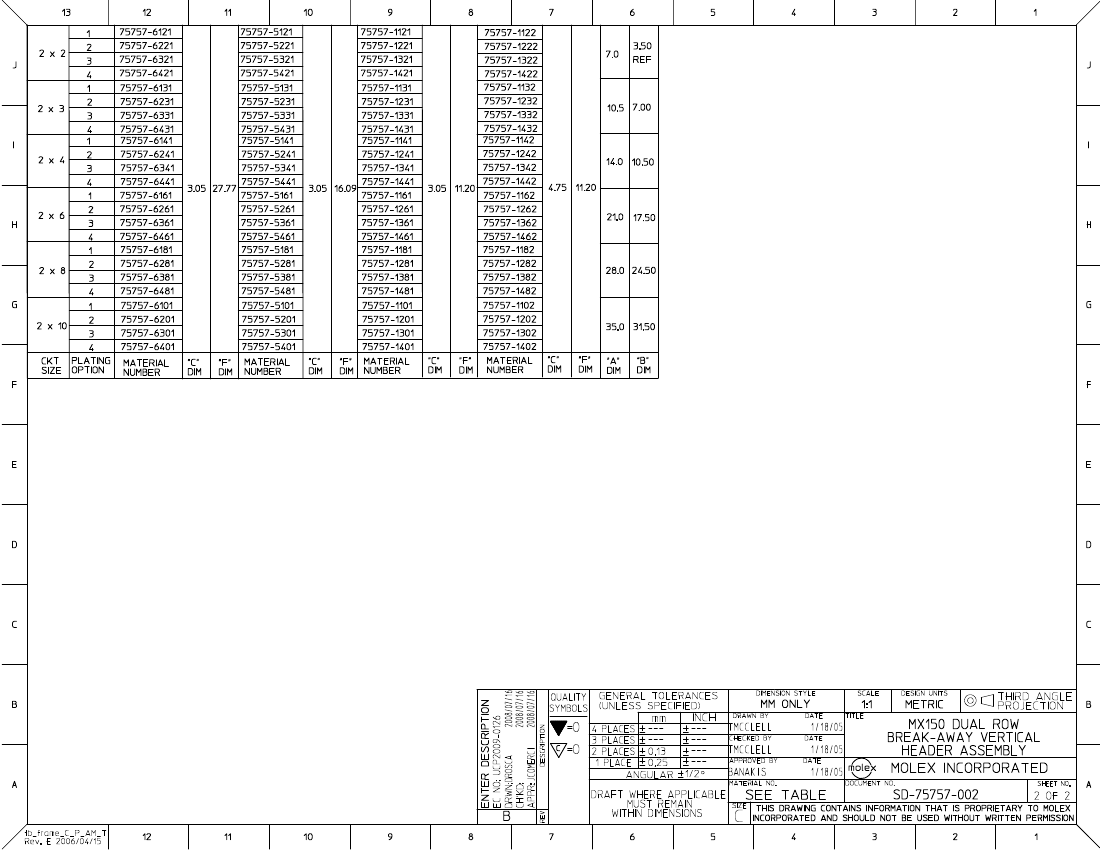

	0757575181	0757575281	0757575381	0757575481
Description	conn header 2x8 vert brkway tin	conn header 2x8 vert brkway AU	conn header 2x8 vert brkway gold	conn header 2x8 vert brkway tin
Standard Package	1,368	1,368	266	-
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	-
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	-
Packaging	Tube	Tube	Tube	-
Contact Type	Male Pi	Male Pi	Male Pi	-
Connector Type	Header, Unshrouded, Breakaway	Header, Unshrouded, Breakaway	Header, Unshrouded, Breakaway	-
Number of Positions	16	16	16	-
Number of Positions Loaded	All	All	All	-
Pitch	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)	-
Number of Rows	2	2	2	-
Row Spacing	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	-
Contact Mating Length	0.633" (16.09mm)	0.633" (16.09mm)	0.633" (16.09mm)	-
Mounting Type	Through Hole	Through Hole	Through Hole	-
Terminati	Solde	Solde	Solde	-
Contact Finish	Ti	Gold	Gold	-
Contact Finish Thickness	100µin (2.54µm)	2µin (0.05µm)	30µin (0.76µm)	-
Col	Black	Black	Black	-
Other Names	75757-5181757575181	75757-5281757575281	75757-5381757575381	-
