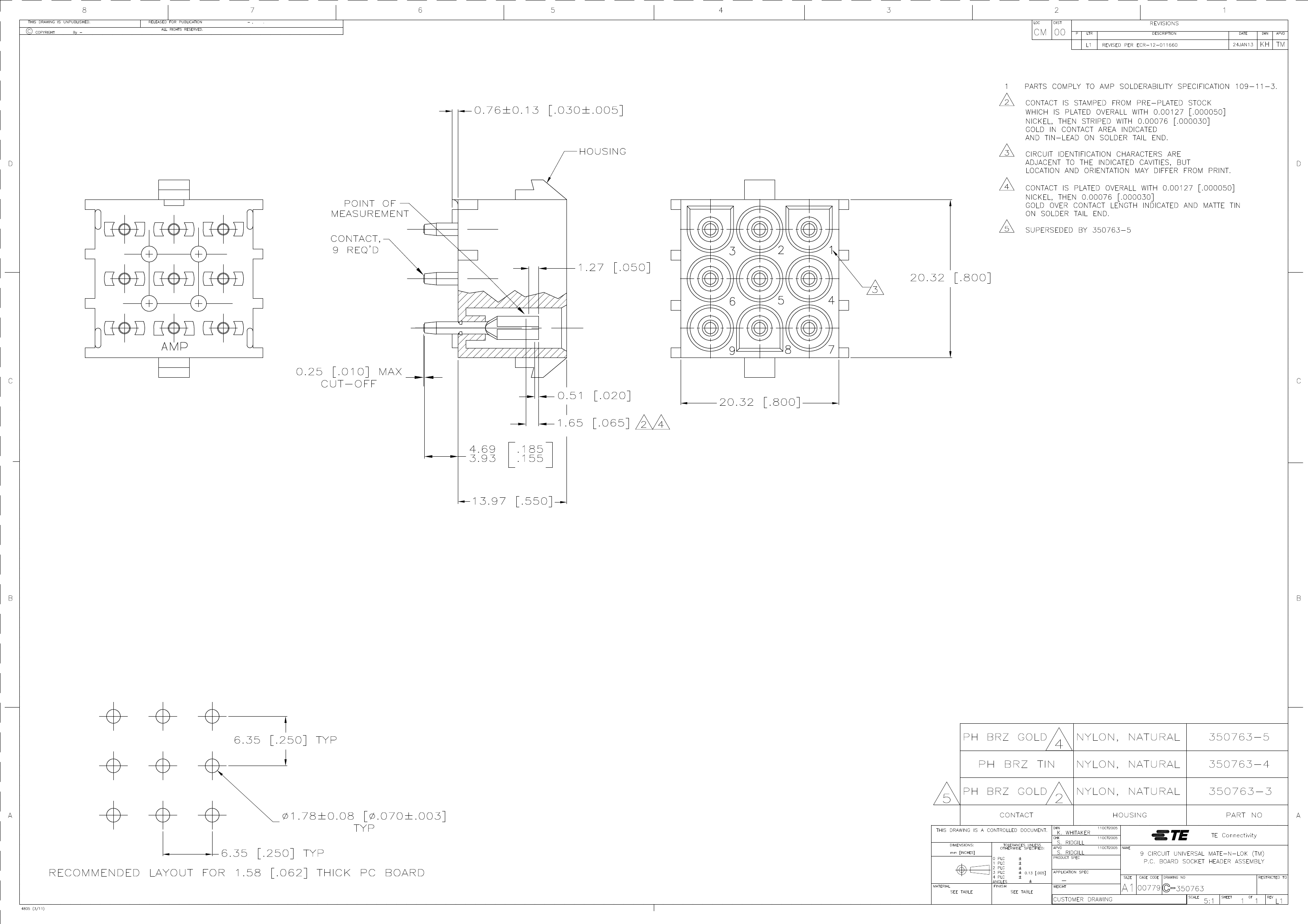

Preview

350763-5: Description09P UMNL HDR ASSY PC LF; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

350763-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	350763-5	-	-	View	Buy Now

350763-5 Overview

09P UMNL HDR ASSY PC LF

350763-5 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	MATE-N-LOK
body width	0.8 inch
subject depth	0.55 inch
body length	0.8 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact arrangement	S0P9
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	5000VAC V
Durability	50 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	22.24 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug information	1-480706-0
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.175 inch
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

350763-5 Related Products

	350763-5	350763-4
Description	09P UMNL HDR ASSY PC LF
Brand Name	AMP	AMP
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compliant
Factory Lead Time	12 weeks	15 weeks
Other features	MATE-N-LOK	MATE-N-LOK
body width	0.8 inch	0.8 inch
subject depth	0.55 inch	0.55 inch
body length	0.8 inch	0.8 inch
Body/casing type	PLUG	SOCKET
Connector type	POWER CONNECTOR	POWER CONNECTOR
Contact arrangement	S0P9	S0P9
Contact to complete cooperation	NOT SPECIFIED	TIN
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn)
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	HYBRID	RND PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	5000VAC V	2900VAC V
Durability	50 Cycles	50 Cycles
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	22.24 N	13.344 N
Insulation resistance	1000000000 Ω	100000000 Ω
Insulator color	NATURAL	NATURAL
insulator material	NYLON	NYLON
JESD-609 code	e3	e3
MIL compliance	NO	NO
Plug information	1-480706-0	1-480706-0
Mixed contacts	NO	NO
Installation option 1	POLARIZED LCK	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-30 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	CSA,UL,VDE	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Shell material	POLYAMIDE	POLYAMIDE
Terminal length	0.175 inch	0.155 inch
Termination type	SOLDER	SOLDER
Total number of contacts	9	9
UL Flammability Code	94V-2	94V-2
Base Number Matches	1	1
