HCMOS 2.5x2mm 1.8V Oscillator
Page 1 of 2
Model: F210 SERIES
RoHS & REACH Compliant
http://www.foxonline.com/need_a_sample.htm
Rev. 9/17/2012
FEATURES
• Standby Function
• Tape and Reel
(3,000 pcs. STD)
• PART NUMBER SELECTION
Part Number
819-Frequency-xxxxx
819A-Frequency-xxxxx
819B-Frequency-xxxxx
819C-Frequency-xxxxx
819D-Frequency-xxxxx
819E-Frequency-xxxxx
Model Frequency
Operating
Number Stability
1
Temperature (ºC)
±100PPM
-10 ~ +70
F210
-40 ~ +85
F210R
±100PPM
±50PPM
-10 ~ +70
F215
±50PPM
-40 ~ +85
F215R
±25PPM
-10 ~ +70
F216
-40 ~ +85
F216R
±25PPM*
Frequency
Range (MHz)
0.750 ~ 50.000
0.750 ~ 50.000
0.750 ~ 50.000
0.750 ~ 50.000
0.750 ~ 50.000
1.800 ~ 50.000
2.6 Ma x
#4
#3
T op
V ie w
#1
Dot de note s
p in 1 .
#2
2.1 m a x
• ELECTRICAL CHARACTERISTICS
Frequency Range (F
O
)
Storage Temperature Range (T
STG
)
Supply Voltage
(V
DD
)
Input Current
(I
DD
)
0.750 ~ 10.000 MHz
10.000+ ~ 20.000 MHz
20.000+ ~ 30.000 MHz
30.000+ ~ 40.000 MHz
40.000+ ~ 50.000 MHz
Output Symmetry (50% V
DD
)
Rise Time (10% ~ 90% V
DD
)
Fall Time (90% ~ 10% V
DD
)
Output Voltage
(V
OL
)
(V
OH
)
Output Current
(I
OL
)
(I
OH
)
Output Load
(HCMOS)
Standby Current
Start-up Time
(T
S
)
Output Disable Time
2
Output Enable Time
2
Reflow Soldering Temp
Moisture Sensitivity Level (MSL)
Termination Finish
1
PARAMETERS
MAX
(unless otherwise noted)
0.750 ~ 50.000 MHz
-55ºC ~ +100ºC
1.8V ± 5%
2.5mA
3.5mA
4.0mA
4.5mA
5.0mA
45% ~ 55%
10nS
10nS
10% V
DD
90% V
DD
Min
2mA Min
-2mA Min
15pF
10µA
10mS
10uS
10mS
260ºC / 10 Seconds
1
Au
1.0 Ma x
0.78
B ottom
V ie w
0.68
#1
#2
0.65
#4
#3
0.95
R e c om m e nde d
S o ld e r P a d L a y o u t
0.95
0.8
0.65
0.9
All dimensions are in millimeters.
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, reflow,
and one year aging
*
Excludes Shock/Vibration.
2
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF capacitor should be placed between V
DD
(Pin 4) and GND (Pin2) to minimize
power supply noise.
~
Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
P in C o n n e c t io n s
# 1 E /D
#2 GND
# 3 O u t pu t
# 4 V
DD
• ENABLE / DISABLE FUNCTION
Pin 1
OUTPUT (Pin 3)
OPEN
2
ACTIVE
'1' Level V
IH
≥
70% V
DD
ACTIVE
'0' Level V
IL
≤
30% V
DD
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
www.foxonline.com
EMEA
Tel: +44 .1283.568153 |
Canada
+1.888.438.2369 |
Asia
Hong Kong Tel: +852.2854.4285 |
Japan
Tel: +81.3.3374.2079
© 2012 FOX ELECTRONICS | ISO9001:2008 Certified
HCMOS 2.5x2mm 1.8V Oscillator
Page 2 of 2
Model: F210 SERIES
RoHS & REACH Compliant
http://www.foxonline.com/need_a_sample.htm
Rev. 9/17/2012

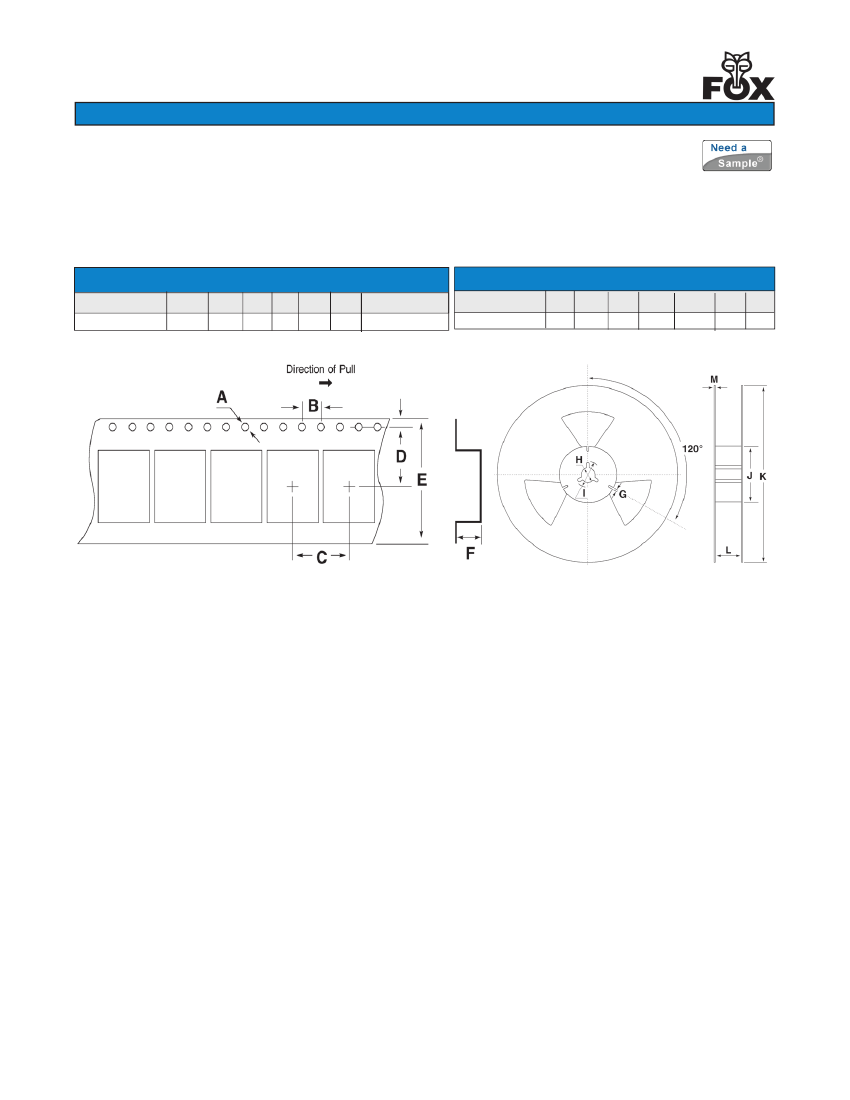

• TAPE SPECIFICATIONS
