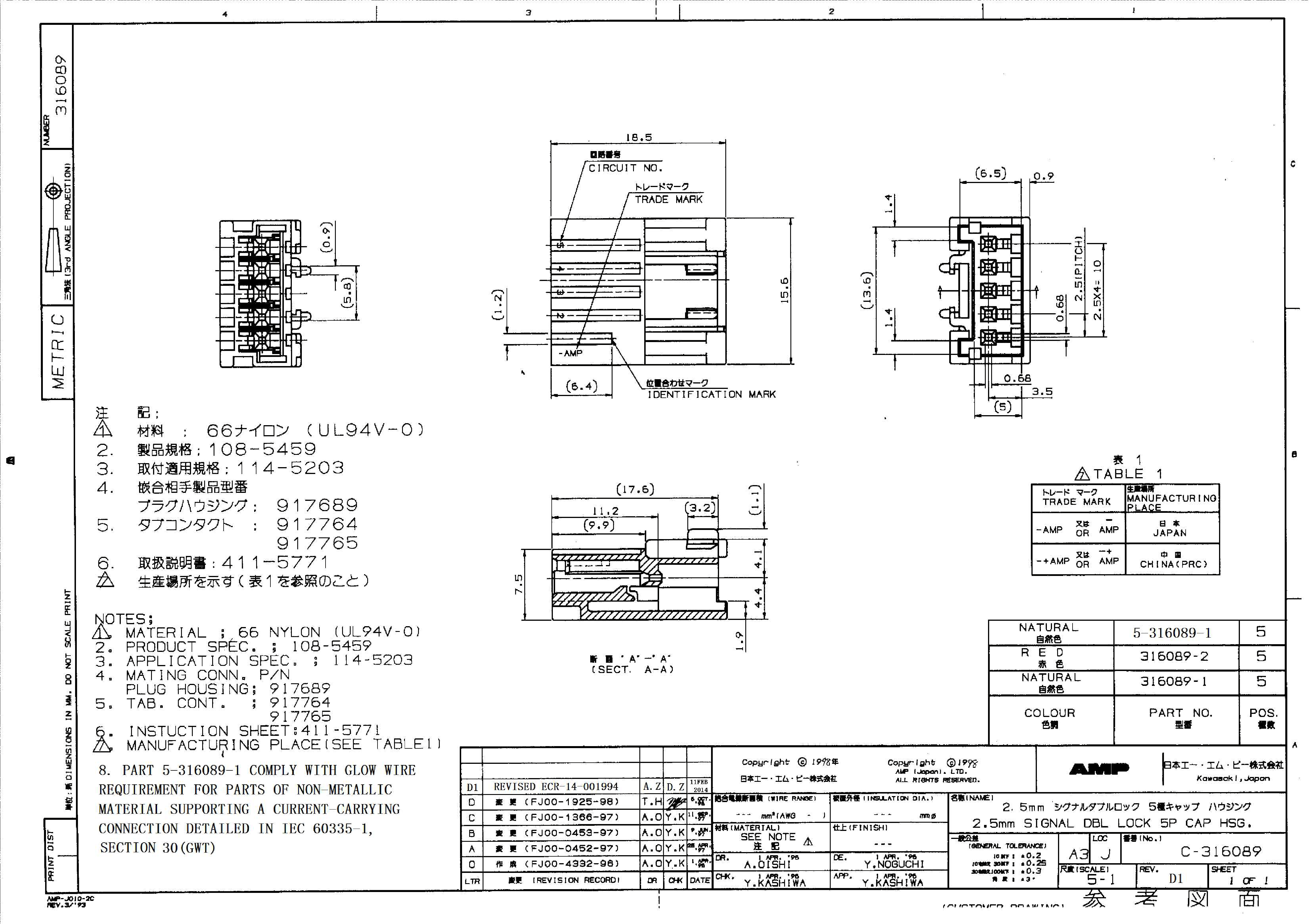

316089-1 datasheet, PDF - EEWORLD Datasheet

316089-1: Description2.5 SIGNAL DBL LOCK CAP HSG 5P; CategoryThe connector The connector; File Size629KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

316089-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	316089-1	-	-	View	Buy Now

2.5 SIGNAL DBL LOCK CAP HSG 5P

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	7 weeks 6 days
Other features	COMPATIBLE CONTACTS: 917765-1, 917764-1
body width	0.377 inch
subject depth	0.728 inch
body length	0.614 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1100VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	5.7824 N
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	316089
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Termination type	CRIMP
Total number of contacts	5
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	26 AWG
Base Number Matches	2
