3-1565087-4 datasheet, PDF - EEWORLD Datasheet

3-1565087-4: DescriptionGRACE INERTIA CONNECTOR 3.5 4P; CategoryThe connector; File Size44KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1565087-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1565087-4	-	-	View	Buy Now

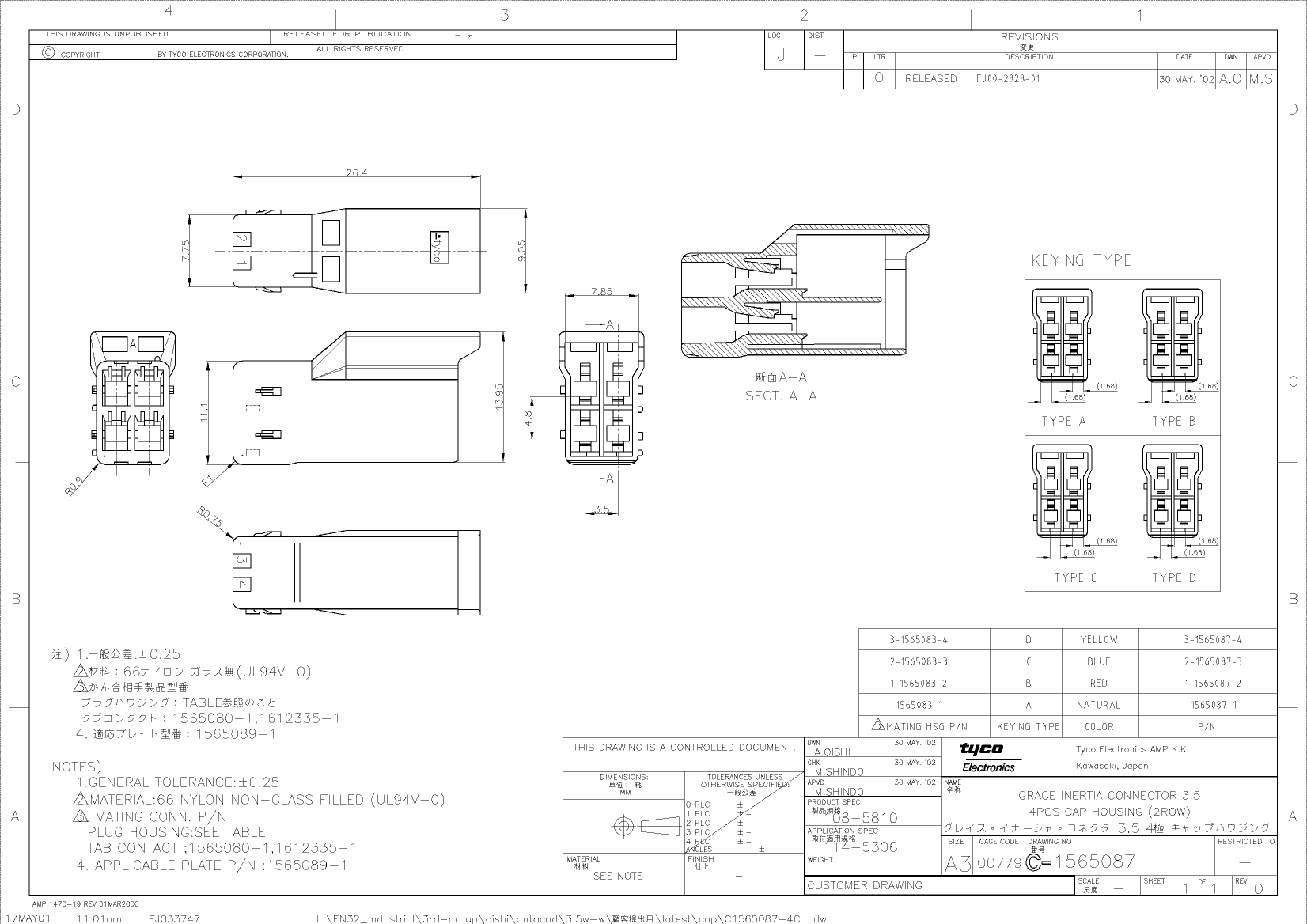

GRACE INERTIA CONNECTOR 3.5 4P

Parameter Name	Attribute value
Housing type	female end, female end
Connector System	line to line
Sealable	no
Connectors and terminals terminate to	Wires and cables
Terminal type	Public end
Number of Positions	4
Number of power supply locations	0
Number of signal positions	0
Rows	2
Line spacing	4.8 mm [ .189 in ]
keying	D
Operating voltage (VAC)	300
Terminal base material	copper alloy
Terminal retention	Withou
Cable size (AWG)	26 – 18
Cable size (mm²)	.129 – .823
Cable termination method	crimp
PCB installation and fixation	Without
Panel mount features	Without
Connector mounting type	Cable installation
joint alignment	with
Joint alignment type	Key position
stress relief	Without
joint fixation	with
Joint fixation type	Inertia lock, latch lock, latch
Centerline (Pitch)	3.5 mm [ .138 in ]
UL fire rating	UL 94V-0
Shell color	yellow
Shell material	Nylon 6/6
length	9.05 mm [ .355665 in ]
high	13.95 mm [ .548235 in ]
Working group temperature range	-30 – 105 °C [ -22 – 221 °F ]
Circuit Application	Power and Signal
Glow Wire Ratings	Standard parts - non-glow wire
Encapsulation method	bag
Package quantity	300
Applicable to	Plug housing: 3-1565083-4

	3-1565087-4	2M440MS135MT1206-12	1-1565087-2	2-1565087-3
Description	GRACE INERTIA CONNECTOR 3.5 4P	Circular Connector Adapter	GRACE INERTIA CONNECTOR 3.5 4P	GRACE INERTIA CONNECTOR 3.5 4P
Housing type	female end, female end	-	female end, female end	female end, female end
Connector System	line to line	-	line to line	wire to board
Sealable	no	-	no	no
Connectors and terminals terminate to	Wires and cables	-	Wires and cables	Wires and cables
Terminal type	Public end	-	Public end	socket
Number of Positions	4	-	4	4
Rows	2	-	2	2
Line spacing	4.8 mm [ .189 in ]	-	4.8 mm [ .189 in ]	4.8 mm [ .189 in ]
Operating voltage (VAC)	300	-	300	200
Terminal retention	Withou	-	Withou	Withou
Cable size (AWG)	26 – 18	-	26 – 18	26 – 18
Cable size (mm²)	.129 – .823	-	.129 – .823	.129 – .823
Cable termination method	crimp	-	crimp	crimp
Connector mounting type	Cable installation	-	Cable installation	Cable installation
Centerline (Pitch)	3.5 mm [ .138 in ]	-	3.5 mm [ .138 in ]	3.5 mm [ .138 in ]
UL fire rating	UL 94V-0	-	UL 94V-0	UL 94V-0
Shell color	yellow	-	red	blue
Shell material	Nylon 6/6	-	Nylon 6/6	Nylon 6/6
Working group temperature range	-30 – 105 °C [ -22 – 221 °F ]	-	-30 – 105 °C [ -22 – 221 °F ]	-30 – 105 °C [ -22 – 221 °F ]
Circuit Application	Power and Signal	-	Power and Signal	Powe
Glow Wire Ratings	Standard parts - non-glow wire	-	Standard parts - non-glow wire	Standard parts - non-glow wire
Encapsulation method	bag	-	bag	bag
Package quantity	300	-	300	300
