Datasheet> All Categories > The connector> socket> 1109335-242

1109335-242: DescriptionIC Socket, DIP42, 42 Contact(s); CategoryThe connector socket; File Size229KB，1 Pages; ManufacturerAries Electronics

Download Datasheet Parametric View All

1109335-242 Overview

IC Socket, DIP42, 42 Contact(s)

1109335-242 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Device slot type	IC SOCKET
Type of equipment used	DIP42
Number of contacts	42
Base Number Matches	1

Preview

Download Datasheet

View All

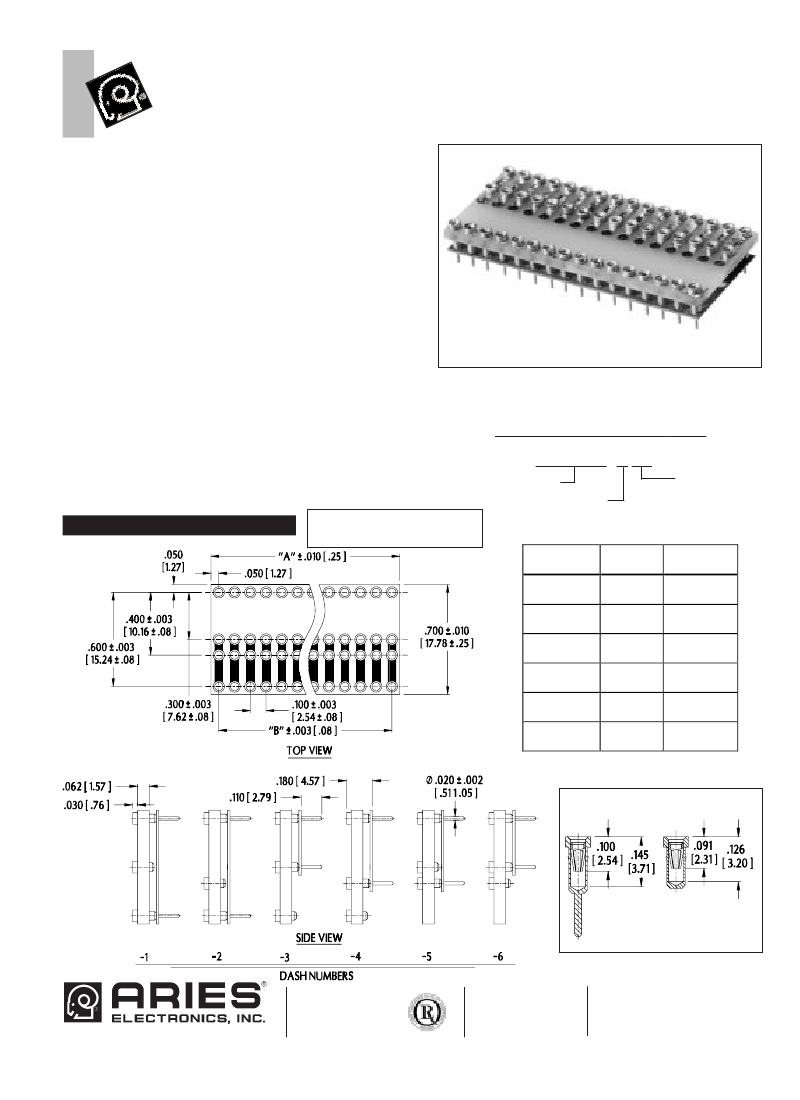

Part No. 1109335-XXX

LO-PRO

file DIP Adapter Sockets

FEATURES:

• LO-PRO

file adapters convert DIP ICs from one row-to-row

spacing to another.

• Available in six configurations and have an overall height of

only .180 [4.57].

SPECIFICATIONS:

• Socket body is FR-4, .062 [1.57] thick, with 1 ounce Copper

traces.

• Spacer is Phenolic Laminate (Fishpaper).

• Pin body is Brass Alloy 360 1/2 hard per UNS C36000

ASTM-B16-85.

• Pin body plating is 200u” [1.27um] min. 93/7 Tin/Lead per Mil-

P-81728 over 100u” [2.54um] min. Nickel per QQ-N-290.

• 4-fingered collet contact is Beryllium Copper Alloy per

UNS C17200 ASTM-B194-92.

• Contact plating is 10u” [.25um] min. Gold per MIL-G-45204

over 50u” [1.27um] min. Nickel per QQ-N-290.

• Contact current rating=3 Amps.

• Operating temperature=221°F [105°C].

• Insertion Force=180 grams/pin; Withdrawal Force=90

grams/pin; Normal Force=140 grams/pin; based on a .018 [.46]

diameter test lead.

• Accepts leads .015-.025 [.38-.64] in diameter, .100-.126

[2.54-3.20] long.

MOUNTING CONSIDERATIONS:

• Suggested PCB hole size=.030 ± .002 [.76 ± .05] dia.

Note: Aries specializes in custom design and production. In addition to the

standard products shown on this page, special materials, platings, sizes, and

configurations can be furnished, depending on quantities. Aries reserves the

right to change product specifications without notice.

ORDERING INFORMATION

11 0 9 3 3 5 - X X X

Basic part no.

Dash no.

(see table and diagram)

Par D as

N o.

D evi

Cent s

300

[ 62]

400

[ 16]

10.

600

[ 24]

15.

600

[ 24]

15.

300

[ 62]

400

[ 16]

10.

No. of pins:

6 to 48

DIMENSIONS

INCHES

[

MILLIMETERS

]

All tolerances ± .005 [.13]

unless otherwise specified

PCB H ol

Cent s

600

[ 24]

15.

600

[ 24]

15.

300

[ 62]

400

[ 16]

10.

400

[ 16]

10.

300

[ 62]

REV.B

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

http://www.arieselec.com • info@arieselec.com

NORTH AMERICA

Frenchtown, NJ USA

TEL: (908) 996-6841

FAX: (908) 996-3891

UK/IRELAND/GB

TEL: +44 870 240 0249

FAX: +44 1653 600493

uking@arieselec.com

EUROPE/MAINLAND/HOLLAND

TEL: +31 78 615 94 65

FAX: +31 78 615 43 11

12031

europe@arieselec.com
