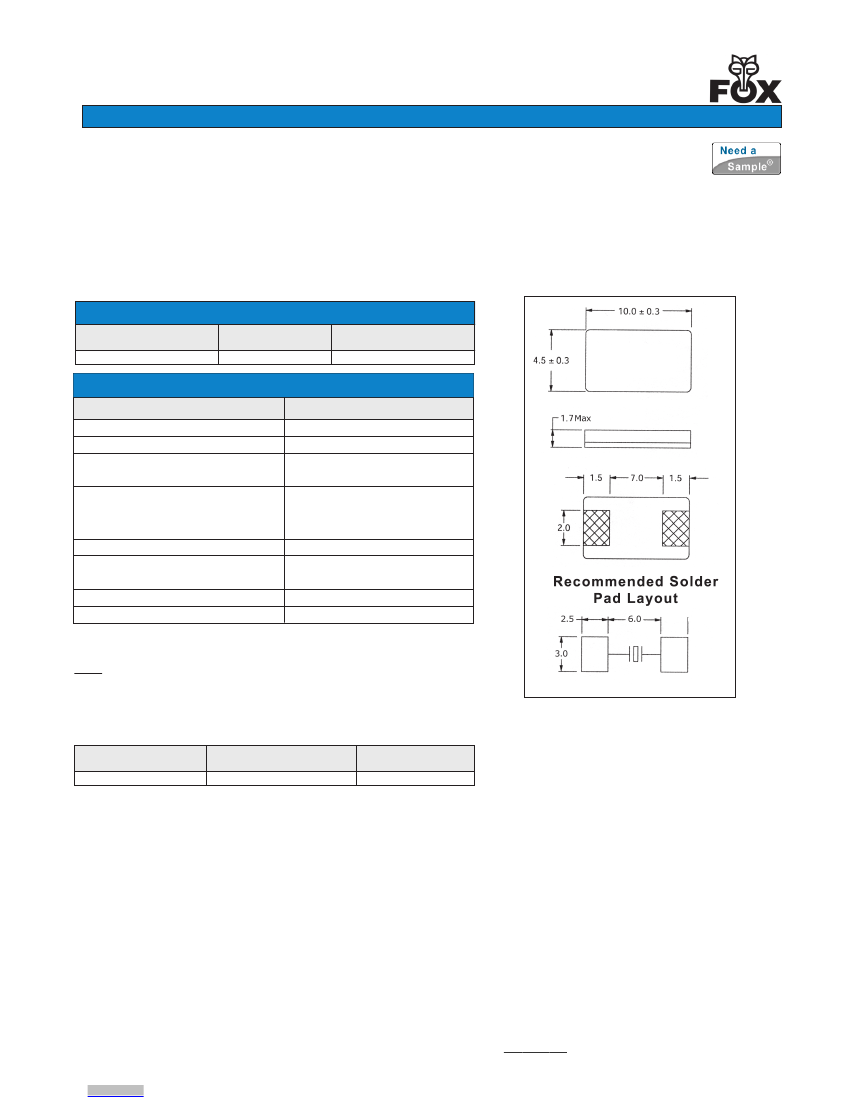

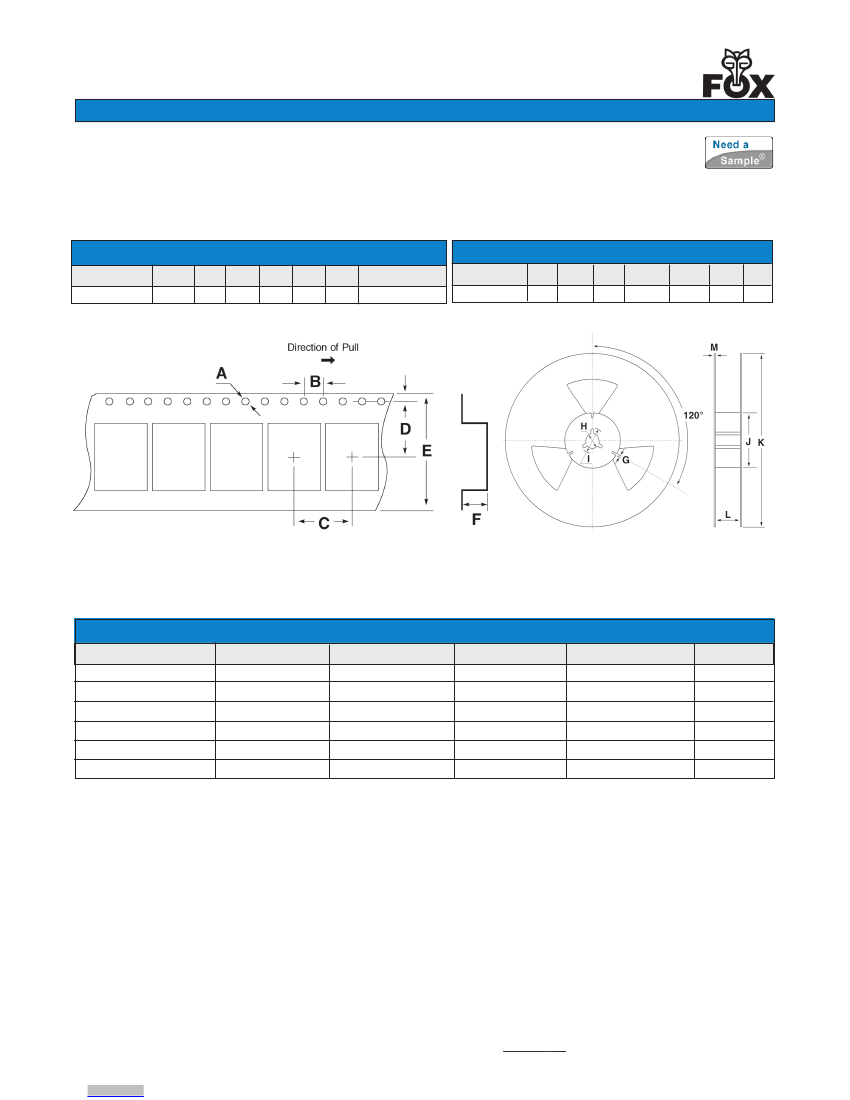

Resin Sealed SMD Crystal

Page 1 of 2

Model: FQ1045A

RoHS Compliant / Pb Free

http://www.foxonline.com/need_a_sample.htm

Rev. 5/5/2014

FEATURES

• Surface Mount Resin Sealed

• Low Cost

• Ultra Low Profile

• Fundamental

OPTIONS

• Tolerances to ± 20 PPM

• Stabilities to ± 20 PPM

• Temp Range to -40ºC ~ +85ºC

• PART NUMBER SELECTION

Part Number

735A-Frequency-xxxxx

Model Number

FQ1045A

Frequency Range (MHz)

3.2768 ~ 7.000

• STANDARD SPECIFICATIONS

1

PARAMETERS

Frequency Range

(Fo)

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

(T

STG

)

Shunt Capacitance

(Co)

Load Capacitance

(C

L

)

Drive Level

Aging per year

1

MAX

(unless otherwise noted)

3.2768 ~ 7.000 MHz

±30 PPM

1

±30 PPM

1

0ºC ~ +70ºC

1

-40ºC ~ +85ºC

7 pF

10 pF ~ Series

(Customer Specified)

0.5 mW

±5 PPM

Termination Finish: Au

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer

Service for specific requirements.

NOTE: The above specifications, having been carefully prepared and checked, is believed to be

accurate at the time of publication; however , no responsibility is assumed by Fox Electronics

for inaccuracies. All specifications subject to change without notice.

All dimensions are in millimeters.

Frequency Range

(MHz)

3.2768 ~ 7.000

Operating Mode

Fundamental

Max ESR

Ω

150

Fox Electronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

USA +1.239.693.0099

FOXonline.com

FAX +1.239.693.1554
