A-TB508-HG15 datasheet, PDF - EEWORLD Datasheet

A-TB508-HG15: Descriptionterminal block; CategoryThe connector; File Size83KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

A-TB508-HG15 Overview

terminal block

Parameter Name	Attribute value
Datasheets

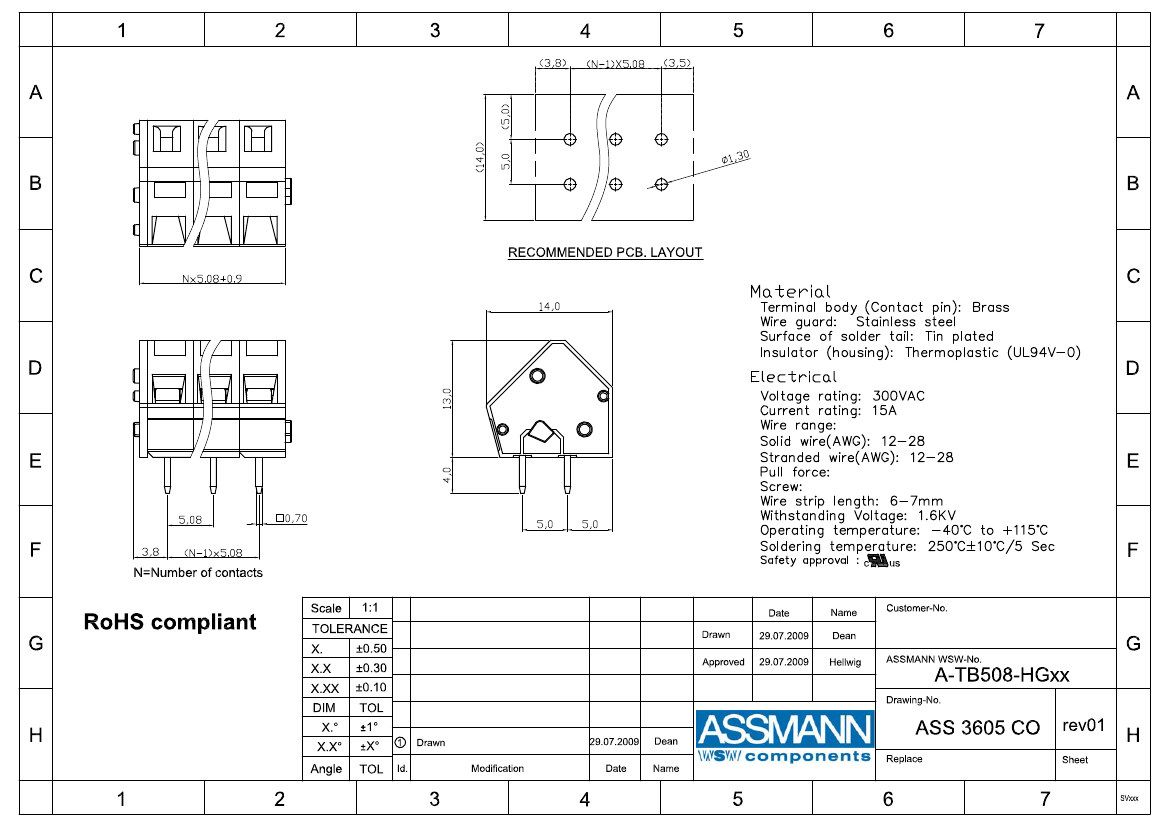

A-TB508-HGxx Drawing
Standard Package	500
Category	Connectors, Interconnects
Family	Terminal Blocks - Wire to Board
Packaging	Bulk
Number of Levels	1
Positions Per Level	15
Pitch	0.200" (5.08mm)
Mating Orientati	45° (135°) Angle with Board
Curre	15A
Voltage	300V
Wire Gauge	12-28 AWG
Mounting Type	Through Hole
Wire Terminati	Screwless
Features	Interlocking (Side)
Col	-
Operating Temperature	-40°C ~ 115°C
Housing Material	Thermoplastic
Contact Material - Plating	Brass
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	-
Torque - Screw	-
Screw Thread	-
