NX3225SA 12MHZ AT-W datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> NX3225SA 12MHZ AT-W

Preview

NX3225SA 12MHZ AT-W: Descriptioncrystal 12mhz 8pf smd; CategoryPassive components; File Size299KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

NX3225SA 12MHZ AT-W Overview

crystal 12mhz 8pf smd

NX3225SA 12MHZ AT-W Parametric

Parameter Name	Attribute value
Datasheets
NX3225SA-STD-CRS-2 Series
Product Photos
NX3225SA Series
Standard Package	1,000
Category	Crystals and Oscillators
Family	Crystals
Packaging	Tape & Reel (TR)
Type	MHz Crystal
Frequency	12MHz
Frequency Stability	±50ppm
Frequency Tolerance	±15ppm
Load Capacitance	8pF
ESR (Equivalent Series Resistance)	120 Ohm
Operating Mode	Fundamental
Operating Temperature	-40°C ~ 125°C
Ratings	AEC-Q200
Mounting Type	Surface Mou
Package / Case	4-SMD, No Lead (DFN, LCC)
Size / Dimensi	0.126" L x 0.098" W (3.20mm x 2.50mm)
Heigh	0.024" (0.60mm)
Dynamic Catalog	NX3225SA Series (Automotive)
Other Names	644-1128-2NX3225SA-12.000M-STD-CRS-2NX3225SA12MHZATW

Preview

Download Datasheet

View All

Crystal Units

NX3225SA

■

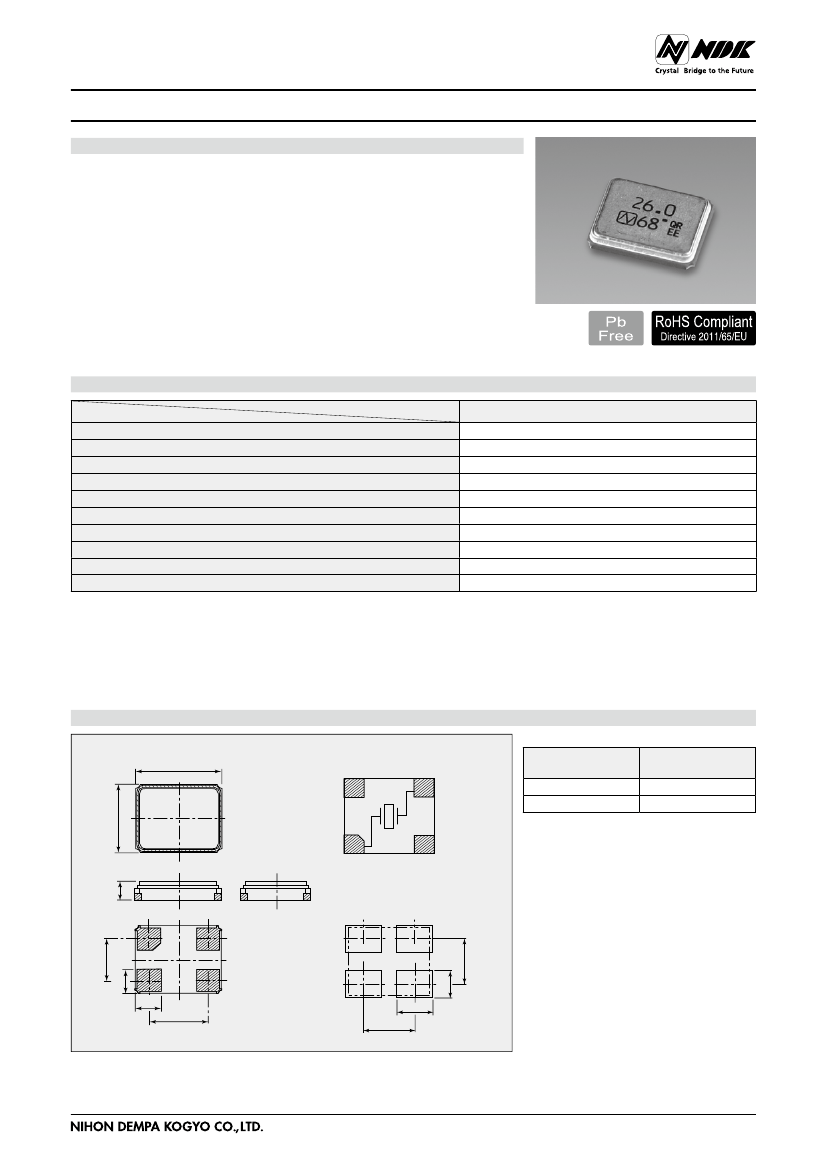

Features

A small surface-mount type crystal unit, ideal for automotive applications.

●With a well established reputation for reliability, this product is best suited for

automotive equipment.

●Stable start-up characteristic even under extremely severe environmental conditions.

●Excellent environmental characteristics, including heat, vibration and shock

resistance.

●Lead-free. Meets the requirements for re-flow profiling using lead-free solder.

●Conforms to AEC-Q200.

For Automotive

■

Specifications

Item

Nominal Frequency

Overtone Order

Frequency Tolerance (25 ±3 °C)

Frequency versus Temperature Characteristics (with reference to +25 °C)

Operating Temperature Range

Storage Temperature Range

Equivalent Series Resistance

Level of Drive

Load Capacitance

Specifications Number

Model

NX3225SA

12 to 50 MHz

Fundamental

±15 × 10

−6

±50 × 10

−6

−40 to +125 °C

Refer to *1

10 μW (Max. 200 μW)

8 pF

STD-CRS-2

■

Dimensions

3.2±0.1

#4

2.5±0.1

Terminal land connections

(TOP VIEW)

#3

mm

*1 Equivalent Series Resistance

Nominal frequency

(MHz)

12 to 20

20 to 50

Equivalent Series

Resistance max. [Ω]

120

100

#1

0.55±0.05

#2

*#2 and #4 are connected with a cover.

(Please connect with a GND.)

#1

1.6

#2

Land pattern (Typical)

0.9

#4 1.0

2.2

#3

2.2

1.4

Please specify the model name, frequency, and specification number when you order products.

For further questions regarding specifications, please feel free to contact us.

111111_NX3225SA_e

- 18 -

1.2

1.6
