55540-3449 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 55540-3449

55540-3449: DescriptionBoard Connector, 133 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug,; CategoryThe connector The connector; File Size308KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

55540-3449 Overview

Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug,

55540-3449 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
body width	0.606 inch
subject depth	0.53 inch
body length	1.492 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	125 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	7
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.571 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	133
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

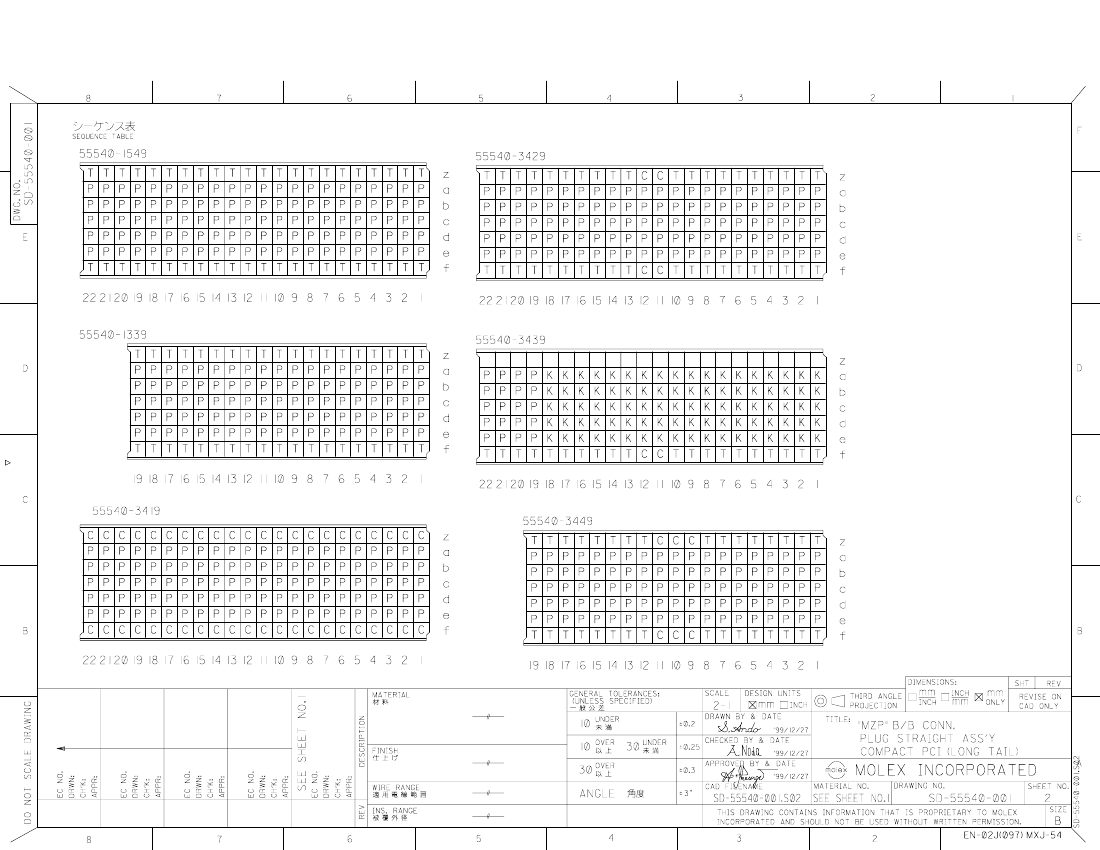

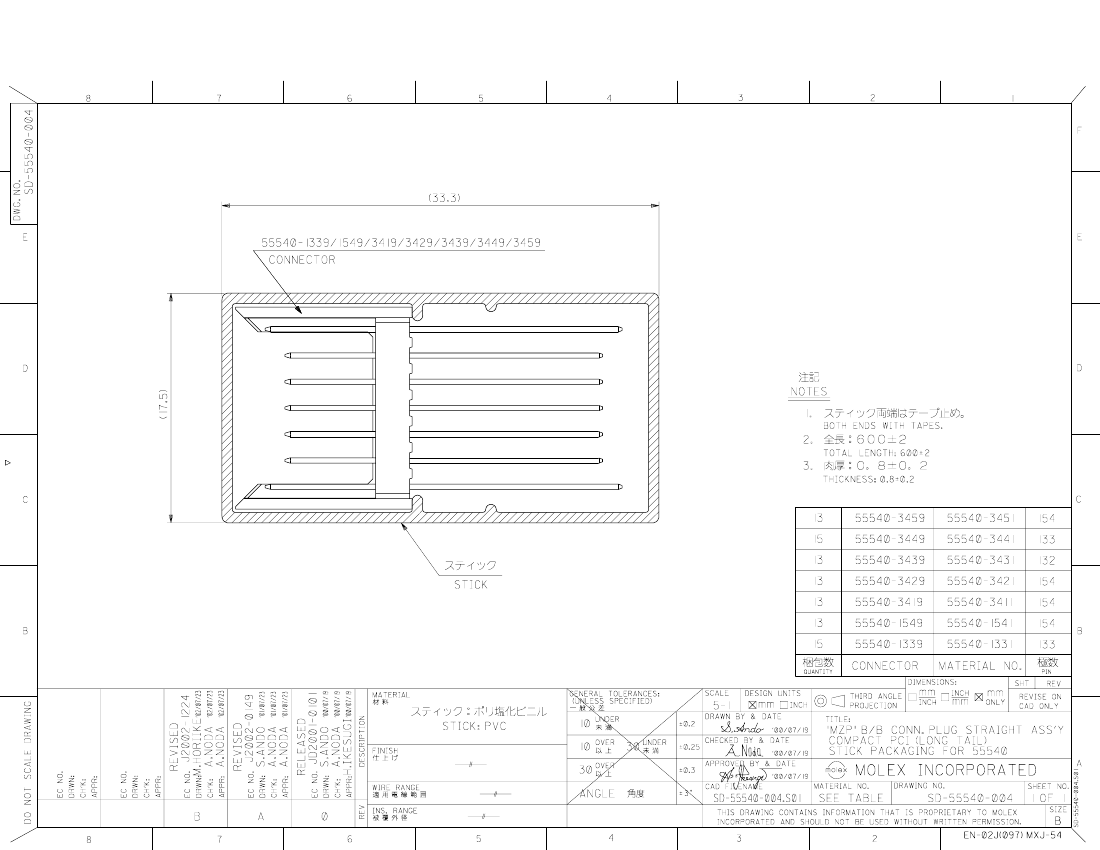

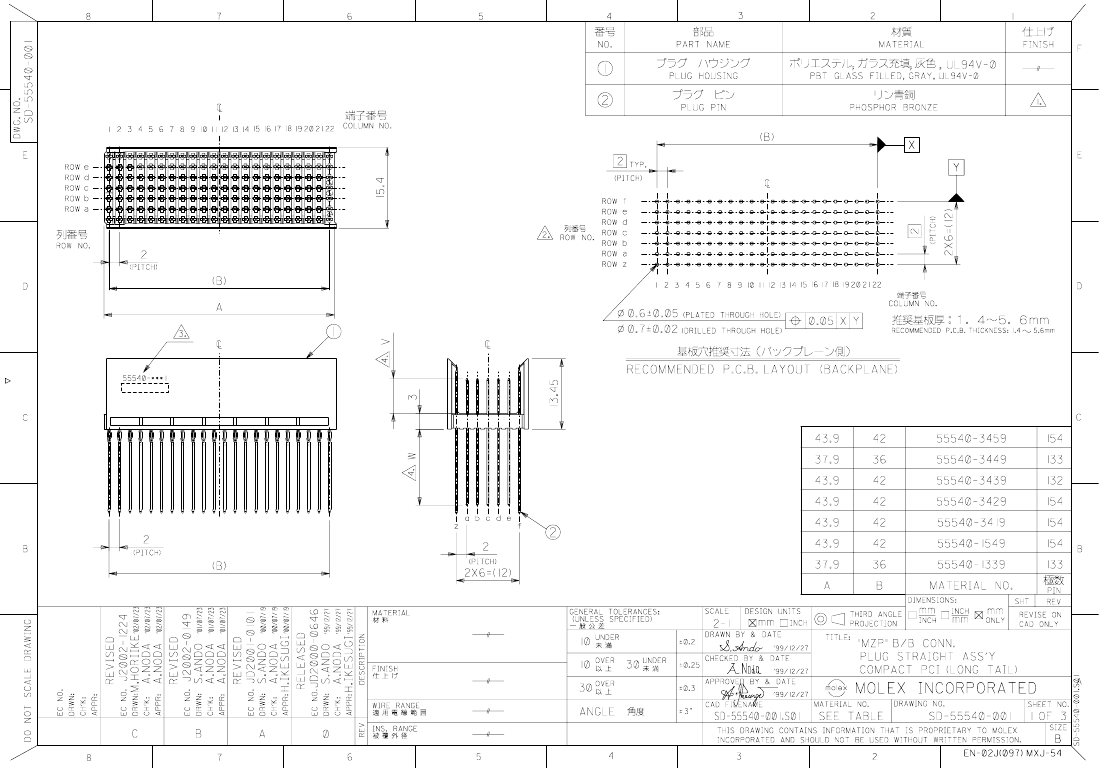

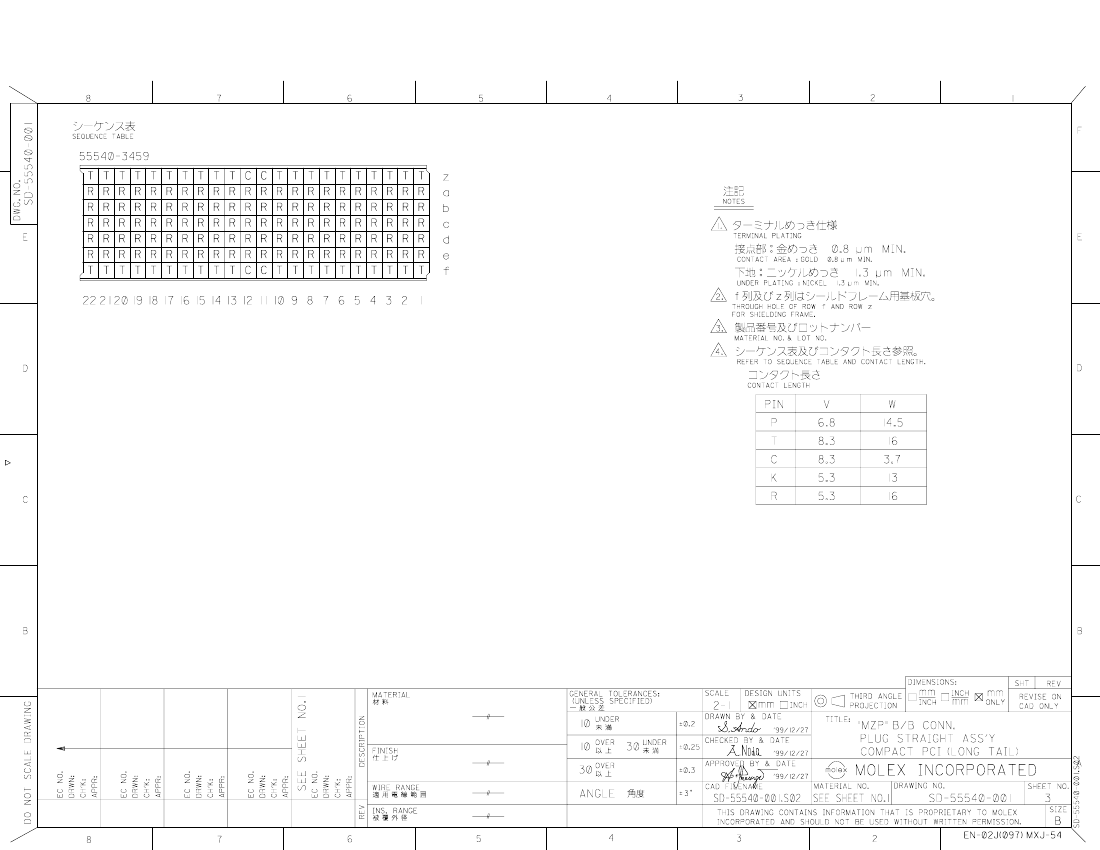

Preview

Download Datasheet

View All

55540-3449 Related Products

	55540-3449	55540-3411	55540-3419	55540-3429	55540-3459	55540-3439	55540-1339	55540-1549
Description	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug,	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, Plug	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug,	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug,	Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug,	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	22 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	NOT SPECIFIED	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	6	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	133	154	154	154	154	132	133	154
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
Maker	Molex	Molex	Molex	Molex	Molex	Molex	-	-
body width	0.606 inch	-	0.606 inch	0.606 inch	0.606 inch	0.606 inch	0.606 inch	0.606 inch
subject depth	0.53 inch	-	0.53 inch	0.53 inch	0.53 inch	0.53 inch	0.53 inch	0.53 inch
body length	1.492 inch	-	1.728 inch	1.728 inch	1.728 inch	1.728 inch	1.492 inch	1.728 inch
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	-	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	750VAC V	-	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
Durability	125 Cycles	-	125 Cycles	125 Cycles	125 Cycles	125 Cycles	125 Cycles	125 Cycles
maximum insertion force	.9452 N	-	.9452 N	.9452 N	.9452 N	.9452 N	.9452 N	.9452 N
Insulation resistance	10000000000 Ω	-	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	GRAY	-	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Number of connectors	ONE	-	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	7	-	7	7	7	7	7	7
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	-	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	31u inch	-	31u inch	31u inch	31u inch	31u inch	31u inch	31u inch
polarization key	POLARIZED RIB(S)	-	POLARIZED RIB(S)	POLARIZED RIB(S)	POLARIZED RIB(S)	POLARIZED RIB(S)	POLARIZED RIB(S)	POLARIZED RIB(S)
Rated current (signal)	1 A	-	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.571 inch	-	0.571 inch	0.571 inch	0.63 inch	0.512 inch	0.571 inch	0.571 inch
Evacuation force-minimum value	.139 N	-	.139 N	.139 N	.139 N	.139 N	.139 N	.139 N
Manufacturer's serial number	-	55540	55540	-	-	55540	55540	55540
