0473-600-CB101 Overview

Potentiometer, Carbon Film, 0.2W, 100ohm, 20% +/-Tol, 1 Turn(s), 5965

0473-600-CB101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1740787487
package instruction	Panel Mount, 5965
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Rotary
gang number	1
Manufacturer's serial number	0473
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package height	6 mm
Package length	15 mm
Package shape	RECTANGULAR PACKAGE
Package form	Panel Mount
Package width	16.5 mm
Rated power dissipation(P)	0.2 W
resistance	100 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
rotation angle	270 deg
series	0473
size code	5965
surface mount	NO
technology	CARBON FILM
Terminal shape	FLAT
Tolerance	20%

Preview

Download Datasheet

View All

Features

This series is currently available but

Plastic housing

not recommended for new designs.

Plug-in shaft available as accessory

Additional models and versions available; special data sheets can be requested

Carbon resistive element

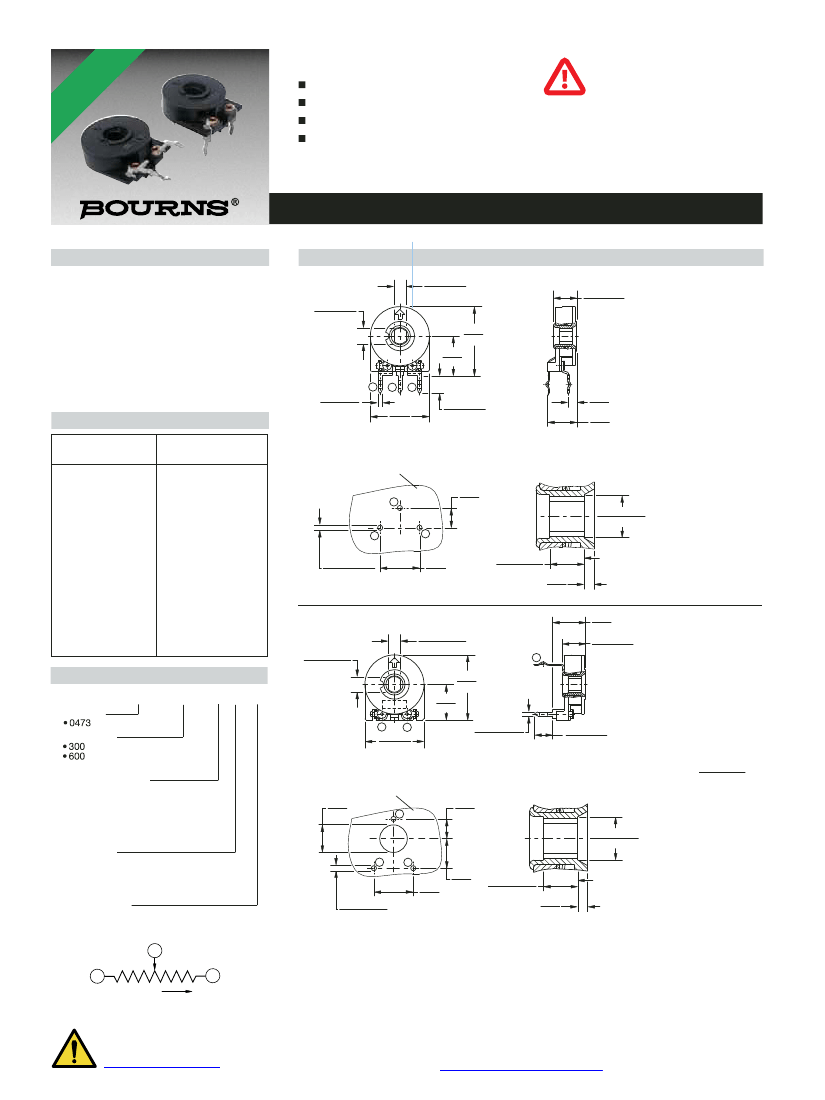

0473 - Shaftless Rotary Potentiometer

Mechanical Angle..................270 ° ±10 °

Starting Torque ...................0.5 to 2 Ncm

End Stop Strength .............25 Ncm max.

Resistance Range

...................100 ohms to 4.7 megohms

Resistance Taper...........................Linear

Power Rating .................................0.2 W

Temperature Range ......-25 °C to +70 °C

Rotational Life ...................10,000 cycles

Standard Resistance Table

Resistance

(Ohms)

100

220

470

1,000

2,200

4,700

10,000

22,000

47,000

100,000

220,000

470,000

1,000,000

2,200,000

4,700,000

Resistance

Code

101

221

471

102

222

472

103

223

473

104

224

474

105

225

475

Characteristics

Product Dimensions

0473-300

4.02 + 0.05

(.158 + .002)

17.5

(.689)

10.0

(.394)

1.1 - 0.1

(.043 - .004)

4.5 ± 0.3

(.177 ± .012)

3.02 + 0.03

(.119 ± .001)

6.0 ± 0.2

(.236 ± .008)

15.0

(.591)

2.2

(.087)

7.5

(.295)

Recommended PCB Layout

COMPONENT

SIDE

5.0

(.197)

10.0

(.394)

3.5 +0/-0.1

(.138 +0/-004)

PLUG-IN

SPINDLE

BEARING

4.4 +0.1/-0

DIA.

(.173 +.004/-0)

1.3 + 0.1/-0

(.051 + .004/-0)

DIA. 3 PLCS.

1.0

(.039)

0473-600

4.02 +0.03/-0

(.158 +.001/-0)

3.02 +0.03/-0

(.119 +.001/-0)

16.5

(.650)

9.0

(.354)

15.0

(.591)

1.1 +0/-0.1

(.043 +0/-.004)

8.5

(.335)

6.0 ± 0.2

(.236 ± .008)

How to Order

0473 - 600 - A B 103

Model Type

Terminal Style

(Other styles available upon request)

Independent Linearity

A = ±5 %

B = ±4 %

C = ±3 %

D = ±2.5 %

E = ±2 %

Element Taper

B = Linear Carbon ±20 %

E = Linear Carbon ±10 %

M = Linear Carbon ±30 %

L = Linear Carbon ±5 %

Resistance Code

Other versions available upon request.

4.5 ± 0.3

(.177 ± .012)

Recommended PCB Layout

7.0

(.276)

COMPONENT

SIDE

5.0

(.197)

DIMENSIONS ARE:

(INCHES)

4.4 +0.1/-0

DIA.

(.173 +.004/-0)

10.0

(.394)

7.5

(.295)

3.5 +0/-0.1

(.138 +0/-.004)

PLUG-IN

SPINDLE

BEARING

1.3 +0.1/-0

(.051 +.004/-0)

DIA. 3 PLCS.

1.0

(.039)

CCW

WIPER

CLOCKWISE

WARNING

Cancer and Reproductive Harm

www.P65Warnings.ca.gov

REV 10/20

*RoHS Directive 2015/863, Mar 31, 2015 and Annex.

Speciﬁcations are subject to change without notice. Users should verify actual device performance in their speciﬁc

applications. The products described herein and this document are subject to speciﬁc legal disclaimers as set forth on the

last page of this document, and at

www.bourns.com/docs/legal/disclaimer.pdf
