BPH-2-RA-48-A-GD: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size110KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BPH-2-RA-48-A-GD Overview

Board Connector, 48 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle

BPH-2-RA-48-A-GD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166982259
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	8.7
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.213 inch
body length	1.89 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	1000 Cycles
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	48

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Insulator material:

Insulator resistance:

Withstanding:

Processing temperature:

Operating temperature:

1 amp

Copper alloy

Gold or tin

Nylon 6T, UL94V-0

5,000 megohms min.

500VAC for 1 min.

230°/50 sec. max.

-40°C to +105°C

E=Overall Pin Length

Series

Insulator (H)

BPH

2mm pin header Blank=2.0mm

C=1.5mm

D=1.0mm

Rows

1=Single

2=Blank

RoHS compliant

Rev.

Description

A PNT, DWG

Date

Approved

06/29/10 Greg

Type

Contacts

Contact length

Blank=Straight Single Row 02-40 SD (standard)

RA=Right angle Dual Row 04-80

A=.157” (4.0mm)

B=.11” (2.8mm)

C=.045” (1.15mm)

Custom

CSL A/C/E

Date

08/10/99

08/10/99 Part No.:

Plating

TN=Tin

SGXX=Duplex

GDXX=Gold

XX=Flash if blank; 10, 15, 30µ”

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BPH-2-RA-XX-XX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

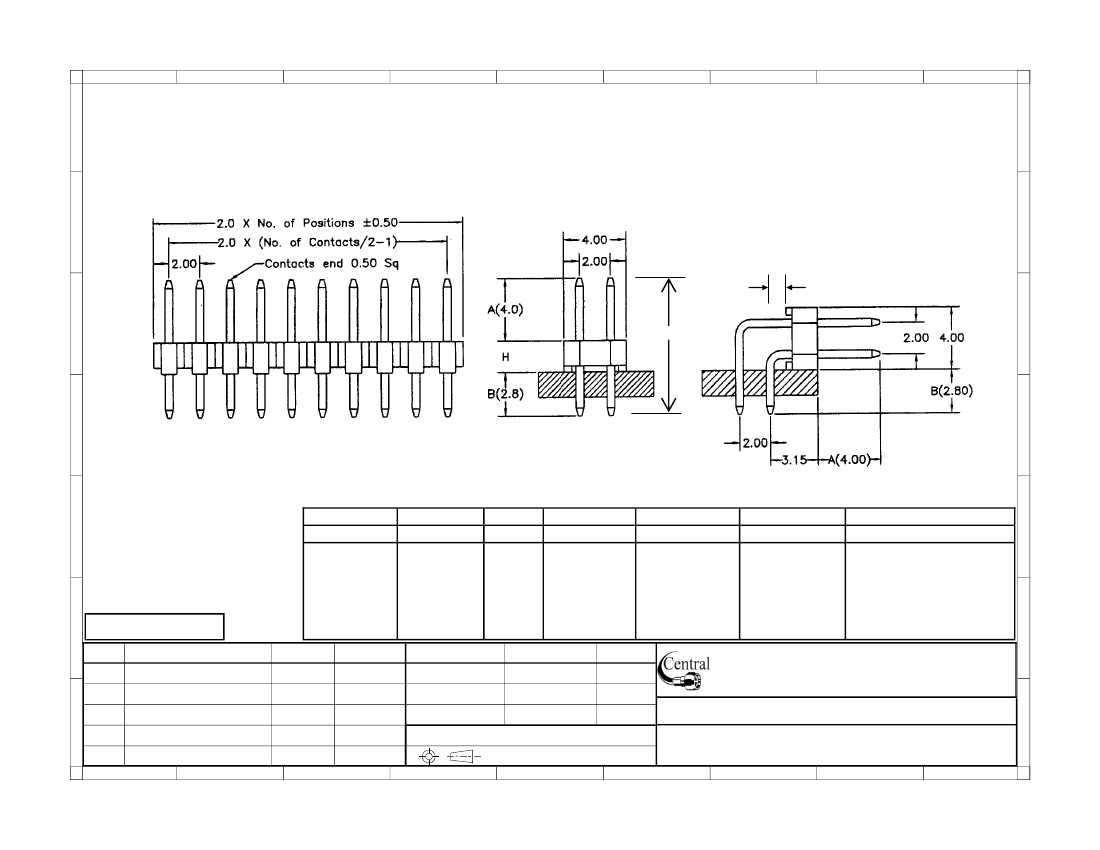

Description: 2mm pin header, dual row right angle
