DPLX-EDU1383+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> DPLX-EDU1383+

DPLX-EDU1383+: DescriptionDuplexer, 1362MHz(Tx), 10MHz(Rx), ROHS COMPLIANT, CASE FL905; CategoryAnalog mixed-signal IC filter; File Size66KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

DPLX-EDU1383+ Overview

Duplexer, 1362MHz(Tx), 10MHz(Rx), ROHS COMPLIANT, CASE FL905

DPLX-EDU1383+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
filter type	DUPLEXER
input connector	SMA FEMALE
Insertion loss (receive)	1 dB
Insertion loss (transmit)	1 dB
Manufacturer's serial number	DPLX-EDU1383+
Installation type	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output connector	SMA FEMALE
Receive center frequency	10 MHz
Transmit center frequency	1362 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

Diplexer

Connectorized

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

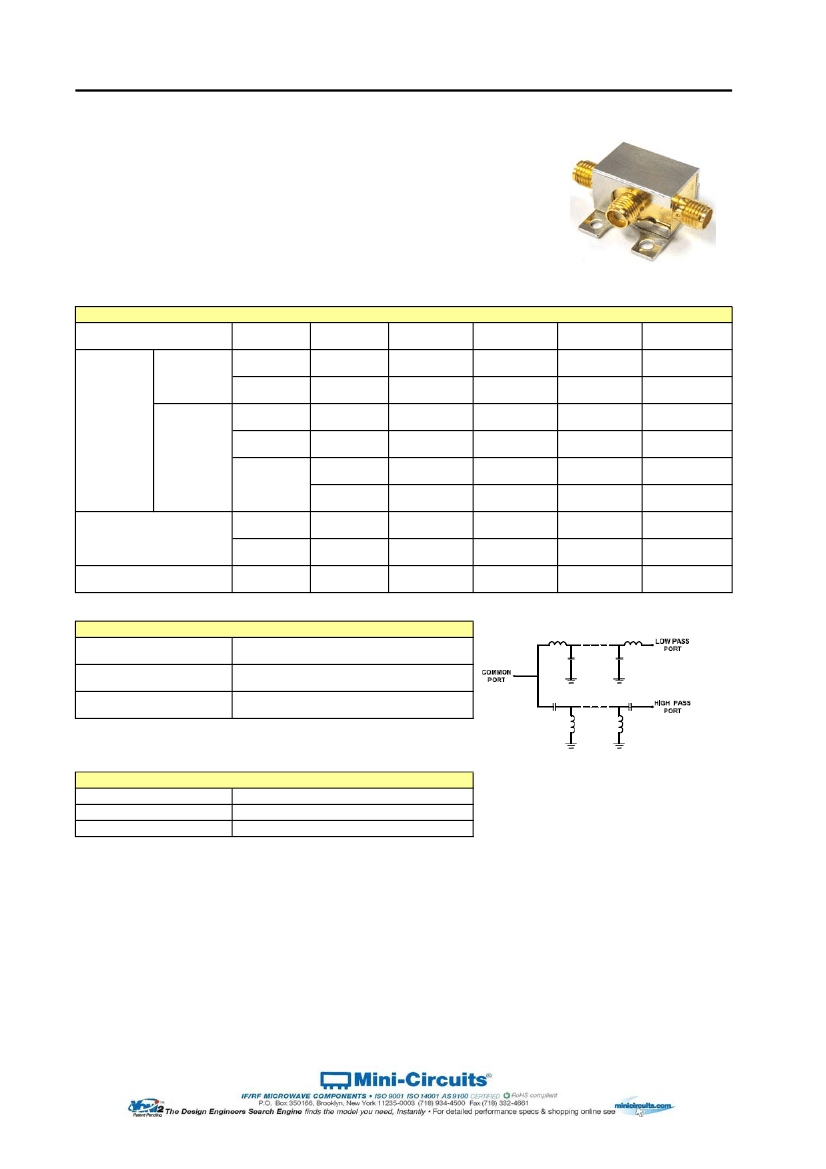

DPLX-EDU1383+

CASE STYLE : FL905

ELECTRICAL SPECIFICATIONS 50Ω @ +25°C

Frequency

Port

Min.

Typ.

(MHz)

Lowpass

Highpass

Lowpass

Passband

Highpass

Return Loss

9.8-10.2

Common

854-1870

Lowpass

Stop band isolation

Highpass

Crossover isolation

Lowpass to

Highpass

9.8-10.2

10.2-854

854-1870

9.8-10.2

854-1870

9.8-10.2

0.5

0.3

Parameter

Insertion

Loss

Max.

Units

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

RF Power Input

-40°C to 85°C

-55°C to 100°C

400mW

Highpass port

Lowpass port

Common port

PORT CONNECTIONS

SMA ( F )

REV. 1

DPLX-EDU1383+

URJ

100720

Page 1 of 1
