1764-2121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1764-2121

1764-2121: DescriptionCard Edge Connector, 12 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size168KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

1764-2121 Overview

Card Edge Connector, 12 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking

1764-2121 Parametric

Parameter Name	Attribute value
Objectid	304384959
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.15 inch
subject depth	0.205 inch
body length	0.669 inch
Connector type	FFC/FPC CONNECTOR
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
maximum insertion force	LIF N
insulator material	GLASS FILLED NYLON
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
PCB contact pattern	STAGGERED
PCB contact row spacing	3.683 mm
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	12

Preview

Download Datasheet

View All

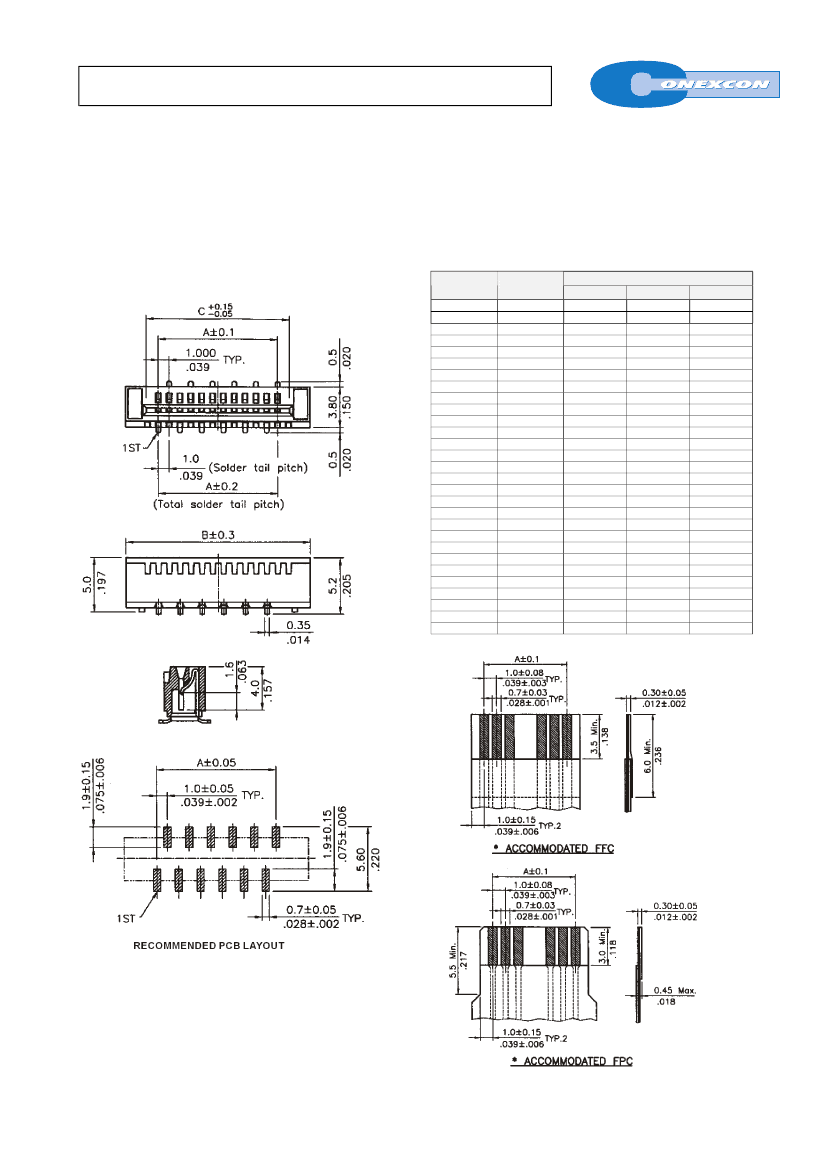

1.00mm VERTICAL LIF SMT CONNECTOR

SERIES.

1764 SERIES

1.00mm(0.039”). For PCB solder

Features

Available in 4 through 32 circuits

Insulator Material: Glass filled Nylon 6T UL 94V-0

Contact Material: Phosphor bronze

Dimensional Information

Low insertion force and high contact pressure

Applicable FPC and FFC: Thickness 0.30mm(.012”)

Ordering and Dimensional Information

Circuit Size

Part Number

1764-2041

1764-2051

1764-2061

1764-2071

1764-2081

1764-2091

1764-2101

1764-2111

1764-2121

1764-2131

1764-2141

1764-2151

1764-2161

1764-2171

1764-2181

1764-2191

1764-2201

1764-2211

1764-2221

1764-2231

1764-2241

1764-2251

1764-2261

1764-2271

1764-2281

1764-2291

1764-2301

1764-2311

1764-2321

Dimensions

3,00(0,118)

4,00(0,157)

5,00(0,197)

6,00(0,236)

7,00(0,276)

8,00(0,315)

9,00(0,354)

10,00(0,394)

11,00(0,433)

12,00(0,472)

13,00(0,512)

14,00(0,551)

15,00(0,591)

16,00(0,630)

17,00(0,669)

18,00(0,709)

19,00(0,748)

20,00(0,787)

21,00(0,827)

22,00(0,866)

23,00(0,906)

24,00(0,945)

25,00(0,984)

26,00(1,024)

27,00(1,063)

28,00(1,102)

29,00(1,142)

30,00(1,181)

31,00(1,220)

9,00(0,354)

10,00(0,394)

11,00(0,433)

12,00(0,472)

13,00(0,512)

14,00(0,551)

15,00(0,591)

16,00(0,630)

17,00(0,669)

18,00(0,709)

19,00(0,748)

20,00(0,787)

21,00(0,827)

22,00(0,866)

23,00(0,906)

24,00(0,945)

25,00(0,984)

26,00(1,024)

27,00(1,063)

28,00(1,102)

29,00(1,142)

30,00(1,181)

31,00(1,220)

32,00(1,260)

33,00(1,300)

34,00(1,338)

35,00(1,378)

36,00(1,417)

37,00(1,456)

5,20(0,205)

6,20(0,244)

7,20(0,283)

8,20(0,323)

9,20(0,362)

10,20(0,402)

11,20(0,441)

12,20(0,480)

13,20(0,520)

14,20(0,559)

15,20(0,598)

16,20(0,638)

17,20(0,677)

18,20(0,717)

19,20(0,756)

20,20(0,795)

21,20(0,835)

22,20(0,874)

23,20(0,913)

24,20(0,953)

25,20(0,992)

26,20(1,031)

27,20(1,071)

28,20(1,110)

29,20(1,150)

30,20(1,189)

31,20(1,228)

32,20(1,268)

33,20(1,307)

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
