8154-51001

Description
D Type Connector, 100 Contact(s), Female, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size79KB,1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric View All

8154-51001 Overview

D Type Connector, 100 Contact(s), Female, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle

8154-51001 Parametric

Parameter NameAttribute value
Objectid307793289
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.368 inch
subject depth0.457 inch
body length3.314 inch
Body/casing typeRECEPTACLE
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch0.05 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness15u inch
GuidelineUL
reliabilityCOMMERCIAL
Shell materialSTEEL
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts100
R/ANGLE DIP SOLDER PCB RECEPTACLE
8154 SERIES.
For PCB solder. SMT Mounting
Features
Available with or without fixing screws
Insulator Material: PBT + Glass Fibre UL 94V-0
Accepts: 8160, 8161 and 8162 Hoods series
Staggered four rows of 2.54mm(0.100”) spacing with row-
To row spacing of 1.905mm(.075”) for board side
For electric equipments of high reliability and high density
packaging

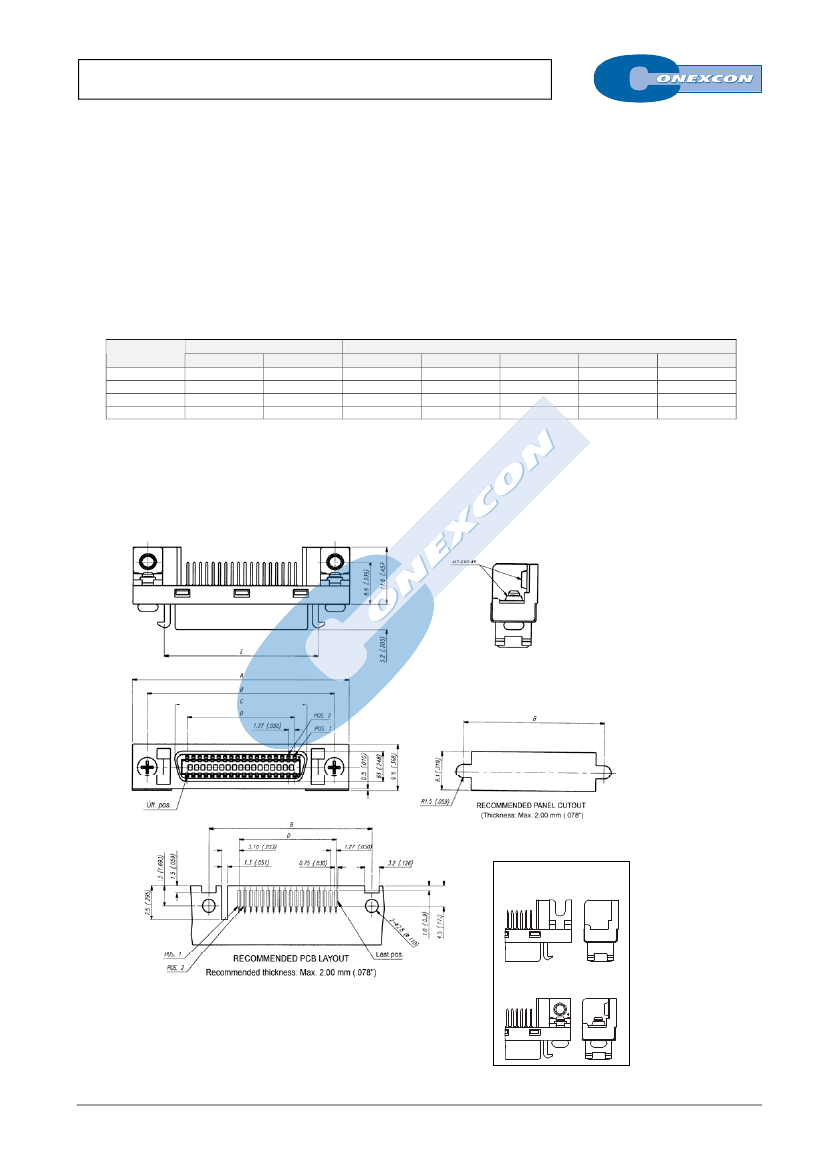

Ordering and Dimensional Information
Part Number
W/O screw
8154 –
T0261
8154 –
T0361
8154 –
T0501
8154 –
T1001
With Screw
8154 –
T026
8154 –
T036
8154 –
T050
8154 –
T100
A
37.19 (1.464)
43.54 (1.714)
52.43 (2.064)
84.18 (3.314)
B
31.26 (1.231)
37.61 (1.481)
46.50 (1.831)
78.25 (3.081)
Dimensions
C
20.30 (0.799)
26.60 (1.047)
35.50 (1.398)
67.30 (2.650)
D
15.24 (0.600)
21.59 (0.850)
30.48 (1.200)
62.23 (2.450)
E
24.64 (0.970)
30.99 (1.220)
39.88 (1.570)
71.63 (2.820)
Available in 26, 36, 50 and 100 circuits
Wire size (AWG 26 to 28)
Ribbon contact design
Contact Material: Phosphor bronze
Excellent EMI / ESD protection
Easy to use latching system (One-Touch Lock)
Shell: Cold roller Steel
Dimensional Information
Circuit Size
26
36
50
100
T = Contact Plating
T =
2.
Tin plated
T =
3.
Gold flash over 50µ” nickel
T =
5.
15µ” gold over 50µ” nickel
T =
6.
30µ” gold over 50µ” nickel
Without fixing screws
(Standard version)
With fixing screws
