56005350

Description
Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size412KB，2 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

56005350 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Solder Terminal, Locking, Receptacle

56005350 Parametric

Parameter NameAttribute value
Objectid304367251
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.126 inch
subject depth0.165 inch
body length0.315 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance500000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial number560
Plug contact pitch0.049 inch
Installation option 1LOCKING
Installation option 2FRICTION LOCK
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.091 inch
Terminal pitch1.2446 mm
Termination typeSOLDER
Total number of contacts5

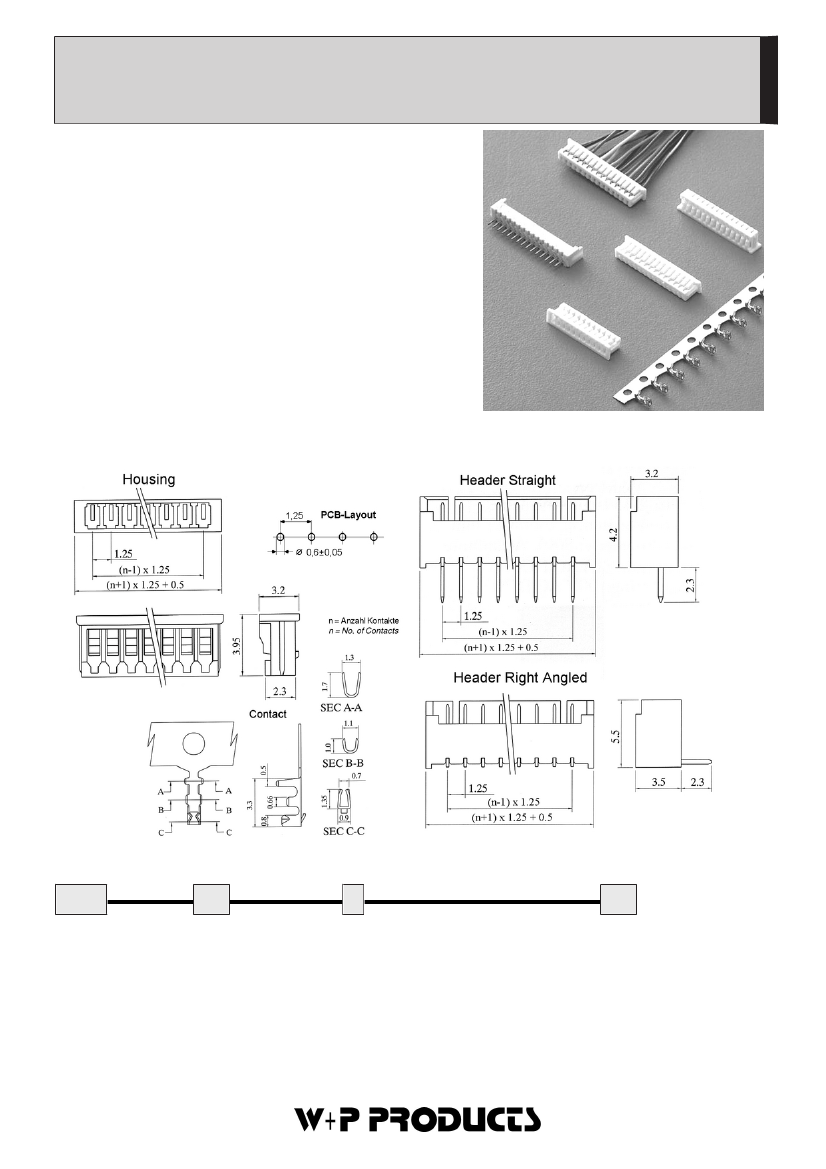

56005350 Preview

560
Stift-/Buchsenleisten - Crimp-Rast-System - RM 1,25mm
Friction Lock Header and Crimp Housing - Pitch 1,25mm
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Messing, verzinnt
Contact Material
Brass, tin plated
Aderquerschnitt
AWG 28 ... 32
Applicable wire Gauge
AWG 28 ... 32
Lötbarkeit
IEC512-12A
Solderability
IEC512-12A
Durchgangswiderstand
< 20mΩ
Contact Resistance
< 20mΩ
8
Isolationswiderstand
> 5x10
Ω
8
Insulation Resistance
> 5x10
Ω
Spannungsfestigkeit
500V
AC
Test Voltage
500V
AC
Nennspannung
100V
AC/DC
max.
Voltage Rating
100V
AC/DC
max.
Nennstrom
1A
Current Rating
1A
Temperaturbereich
-25°C ... +85°C
Temperature Range
-25°C ... +85°C
Verarbeitung
Wellenlötverfahren; weitere Informationen in Kapitel T
Processing
Wave soldering, detailed information in ch. T
Series
Contacts
*
Type
*
Plating
560
10
02-15
3
1
Buchsengehäuse
Housing
2
Buchsenkontakte
Crimp contacts
3
Stiftleiste gerade
Straight pin header
4
Stiftleiste gewinkelt
Right angled pin header
50
50
Verzinnt
(für Gehäuse nicht erforderlich)
Tin plated
(not used for housings)
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
1
© W+P PRODUCTS
Informationen zum Wellenlötverfahren
Wave Soldering Information
Wellenlötverfahren
Wave Soldering
Die Bauteile sollten bei 260°C für max. 5 Sekunden verarbeitet werden.
Items should be soldered at 260°C for max. 5 seconds.
Empfohlenes Wellenlötprofil:
Recommended wave soldering profile:
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
2
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
