1253H-08W-L: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

1253H-08W-L Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking, Plug

1253H-08W-L Parametric

Parameter Name	Attribute value
Objectid	304367102
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.091 inch
subject depth	0.228 inch
body length	0.467 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
insulator material	NYLON
Manufacturer's serial number	1253H
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	8
Maximum wire diameter	26 AWG
Minimum wire diameter	32 AWG

Preview

Download Datasheet

View All

Ratioplast - Electronics

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

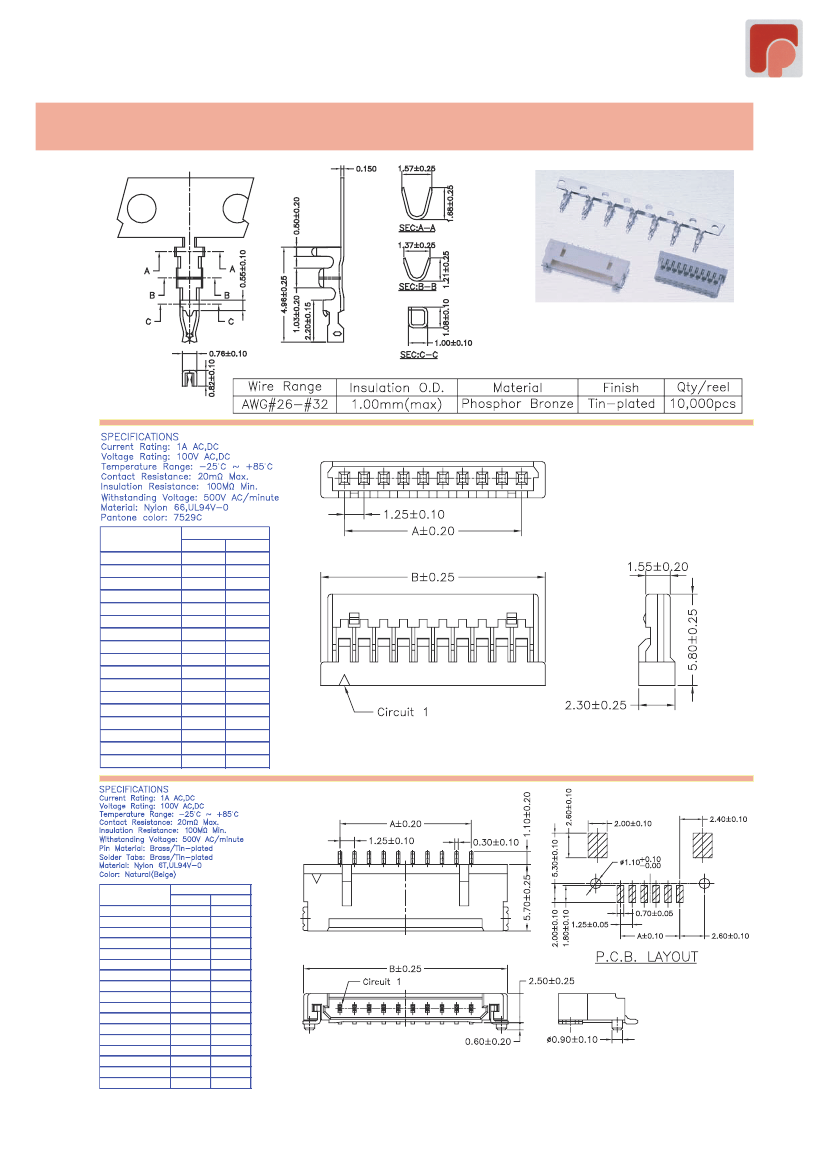

1.25mm TERMINAL / HOUSING / WAFER SMT R/A TYPE

Part No.:1253-T-L

PART NO.

1253H-02W-L

1253H-03W-L

1253H-04W-L

1253H-05W-L

1253H-06W-L

1253H-07W-L

1253H-08W-L

1253H-09W-L

1253H-10W-L

1253H-11W-L

1253H-12W-L

1253H-13W-L

1253H-14W-L

1253H-15W-L

1253H-20W-L

1253H-25W-L

1253H-30W-L

Dimensions

A

B

1.25

4.35

2.50

5.60

3.75

6.85

5.00

8.10

6.25

9.35

7.50

10.60

8.75

11.85

10.00

13.10

11.25

14.35

12.50

15.60

13.75

16.85

15.00

18.10

16.25

19.35

17.50

20.60

23.75

26.85

30.00

33.10

36.25

39.35

Part No.:1253H-XXW-L

PART NO.

1253MR-02W-U

1253MR-03W-U

1253MR-04W-U

1253MR-05W-U

1253MR-06W-U

1253MR-07W-U

1253MR-08W-U

1253MR-09W-U

1253MR-10W-U

1253MR-11W-U

1253MR-12W-U

1253MR-13W-U

1253MR-14W-U

1253MR-15W-U

1253MR-20W-U

1253MR-25W-U

1253MR-30W-U

Dimensions

A

B

1.25

7.45

2.50

8.70

3.75

9.95

5.00

11.20

6.25

12.45

7.50

13.70

8.75

14.95

10.00

16.20

11.25

17.45

12.50

18.70

13.75

19.95

15.00

21.20

16.25

22.45

17.50

23.70

23.75

29.95

30.00

36.20

36.25

42.45

Part No.:1253MR-XXTW-U
