VCXO
CERAMIC SMD TYPE
SPV-M10
-
-
-
-
-
-
-
NON-Multiplide
7×5 mm Industrial standard package
0.2 ps typical, RMS phase jitter(12 kHz to 20 MHz)
3.3 V supply voltage
LVPECL Output
Voltage Controlled Crystal Oscillator
Tri-state function available

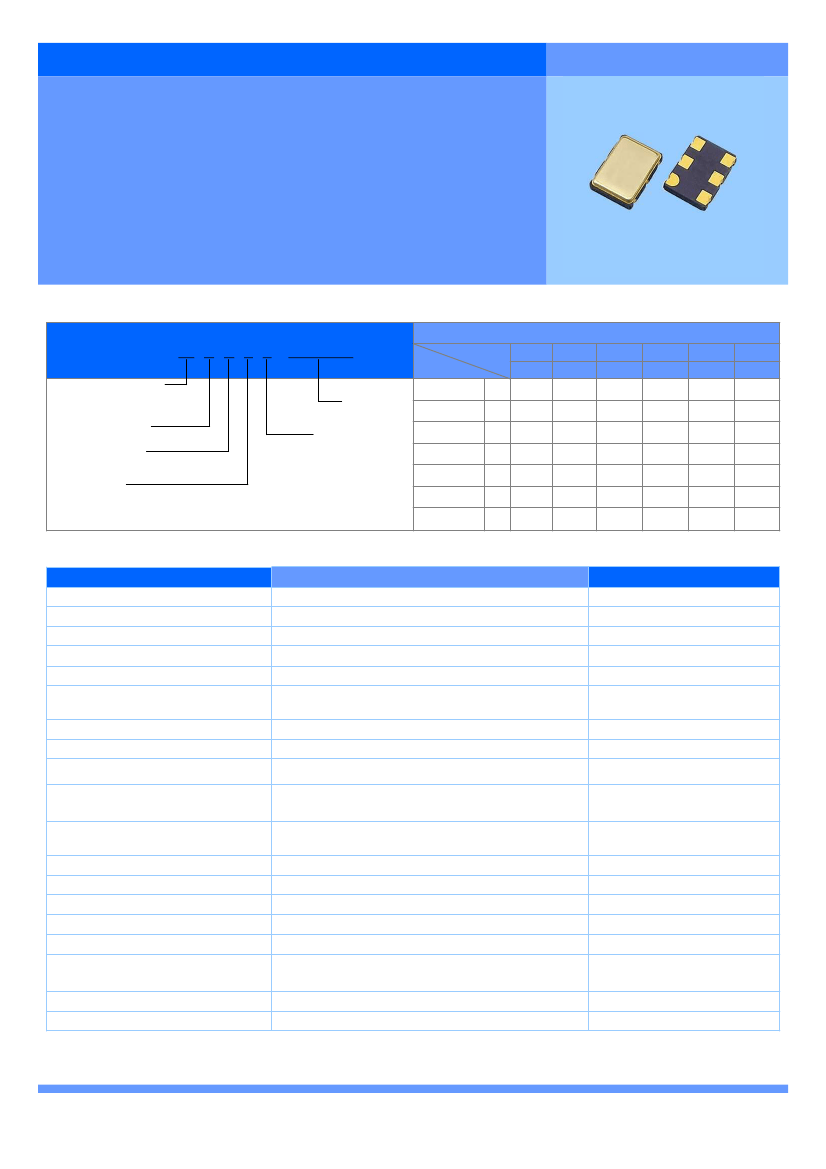

■ PART NUMBERING GUIDE
SPV-M10 30 G D C R
–
156.250M
FREQUENCY STABILITY
TABLE 1
OPERATING
TEMPERAURE RANGE
TABLE 1
DUTY CYCLE
D : 45/55
E : 40/60
DEVIATION
A : ±20 ppm min. B : ±25 ppm min.
C : ±30 ppm min. D : ±50 ppm min.
E : ±100 ppm min.
FREQUENCY
M : MHz
PACKAGE OPTION
R : TAPE AND REEL
BLANK : BULK
■ TABLE 1.
FREQUENCY STABILITY VS. TEMPERATURE RANGE
Stability
Temp
0~50 ℃
0~60 ℃
-10~60 ℃
0~70 ℃
-10~70 ℃
-20~70 ℃
-40~85 ℃
A
B
C
D
E
F
G
±15
15
±20
20
*
*
*
±25
25
*
*
*
*
±30
30
*
*
*
*
*
*
*
±50
50
*
*
*
*
*
*
*
±100
100
*
*
*
*
*
*
*
■ ELECTRICAL SPECIFICATIONS
ITEM
Output Logic Type
Frequency Range
Supply Voltage(V
DD
)
Operating Temperature Range
Storage Temperature Range
Frequency Stability
Input Current
Output Voltage Logic High(V
OH
)
Output Voltage Logic High(V
OL
)
Rise / Fall Time
Duty Cycle
Start-up Time
Output Load Condition(LVDS)
Frequency Deviation
Voltage Control(Vc)
Linearity
Output Enable Function
(V
IH
and V
IL
)
RMS Phase Jitter
Frequency Aging
LVPECL
96/100/122.88/125/155.52/156.25 MHz
3.3 V
DC
±5 %
-20 to 70 ℃, -40 to 85 ℃
-55 to 125 ℃
±50 ppm, ±100 ppm Max.
50 mA Max.
V
CC
–
1.025 V
DC
Min.
V
CC
–
1.620 V
DC
Min.
0.3 ns Typ., 0.7 ns Max.
45 to 55 %, 40 to 60 %
10 ms Max.
50 Ω into V
CC
- 2.0 V
DC
±50 ppm, ±80 ppm, ±100 ppm Min.
1.65 ±1.35V, 1.65 ±1.65V
10 % Max.
70 % of V
DD
min. to Enable Output
30 % of V
DD
max. to Enable Output
0.2 ps Typ., 0.3 ps Max.
±5 ppm Max.
High Impedance
BW: 12 kHz to 20 MHz
25℃, First year
Pin 1 Voltage control(V
C
)
Measured over
20% to 80% of waveform
Measured at 50% of
waveform
Over operating temperature
range
With Load
Table 1
Value
Remarks
LVPECL VCXO
Standard frequency
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
VCXO

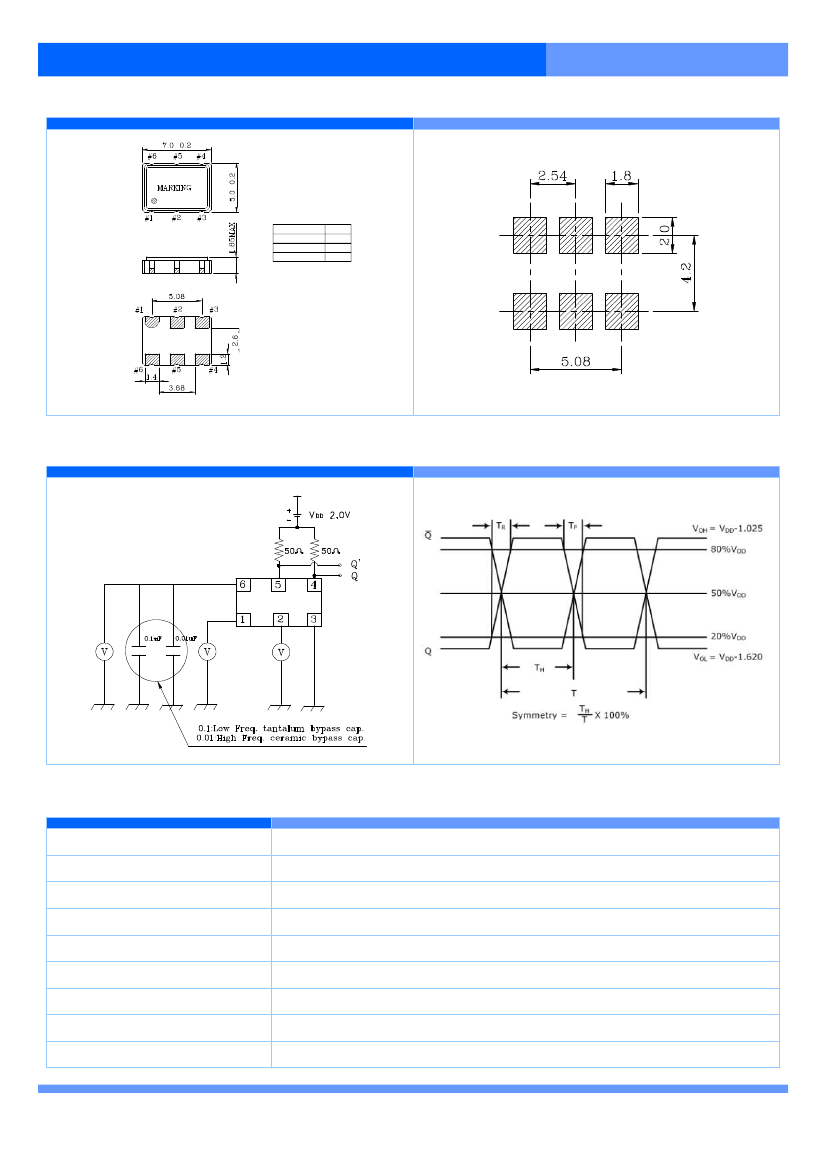

■ MECHANICAL DIMENSIONS
±
(mm)
■ LAND PATTERN
(mm)
±
◆
ED Function
Condition on Pin 1
0.7VDD
0.3VDD
Open
Output
Enable
Disable
Enable
CONNECTION
#1
#2
#3
#4
#5
#6
Vc
OE
GND
OUTPUT 1
OUTPUT 2
Vdd
■
TEST CIRCUIT (PECL)
■
WAVEFORM (PECL)
■
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
Temperature Cycling
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Moisture Resistance
Moisture Sensitivity

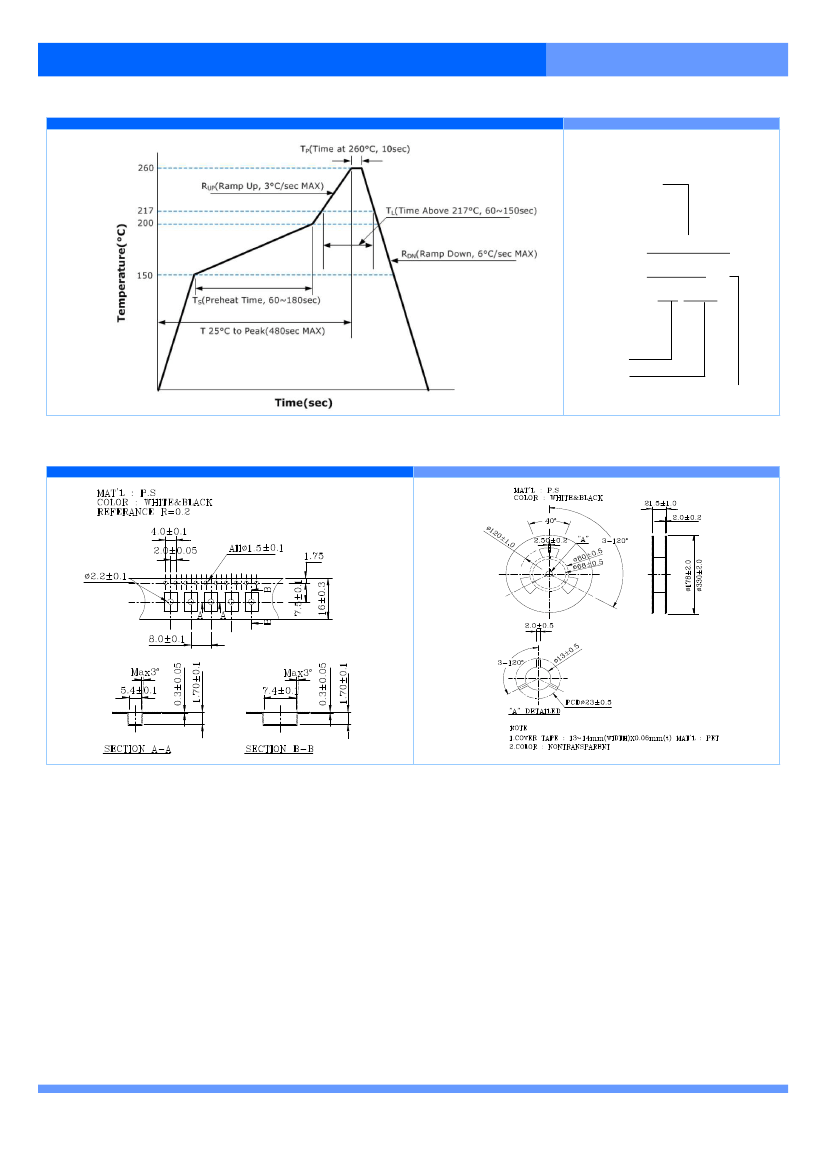

Resistance to Soldering Heat
Solderability
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-883, Method 2003
