BC56-13SURKWA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BC56-13SURKWA

BC56-13SURKWA: Description7 SEG NUMERIC DISPLAY, HYPER RED, 14.2mm, ROHS COMPLIANT PACKAGE-28; CategoryLED optoelectronic/LED photoelectric; File Size247KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

BC56-13SURKWA Overview

7 SEG NUMERIC DISPLAY, HYPER RED, 14.2mm, ROHS COMPLIANT PACKAGE-28

BC56-13SURKWA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-28
Reach Compliance Code	compli
ECCN code	EAR99
color	HYPER RED
Configuration	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT
Display height	14.2 mm
Maximum forward current	0.03 A
Number of functions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

14.22mm (0.56INCH) THREE DIGIT NUMERIC

DISPLAY

Part Number: BC56-13SURKWA

Hyper Red

Features

0.56 inch digit height.

Low current operation.

Excellent character appearance.

Easy mounting on P.C. boards or sockets.

Mechanically rugged.

Standard: gray face, white segment.

RoHS compliant.

Description

The Hyper Red source color devices are made with Al-

GaInP on GaAs substrate Light Emitting Diode.

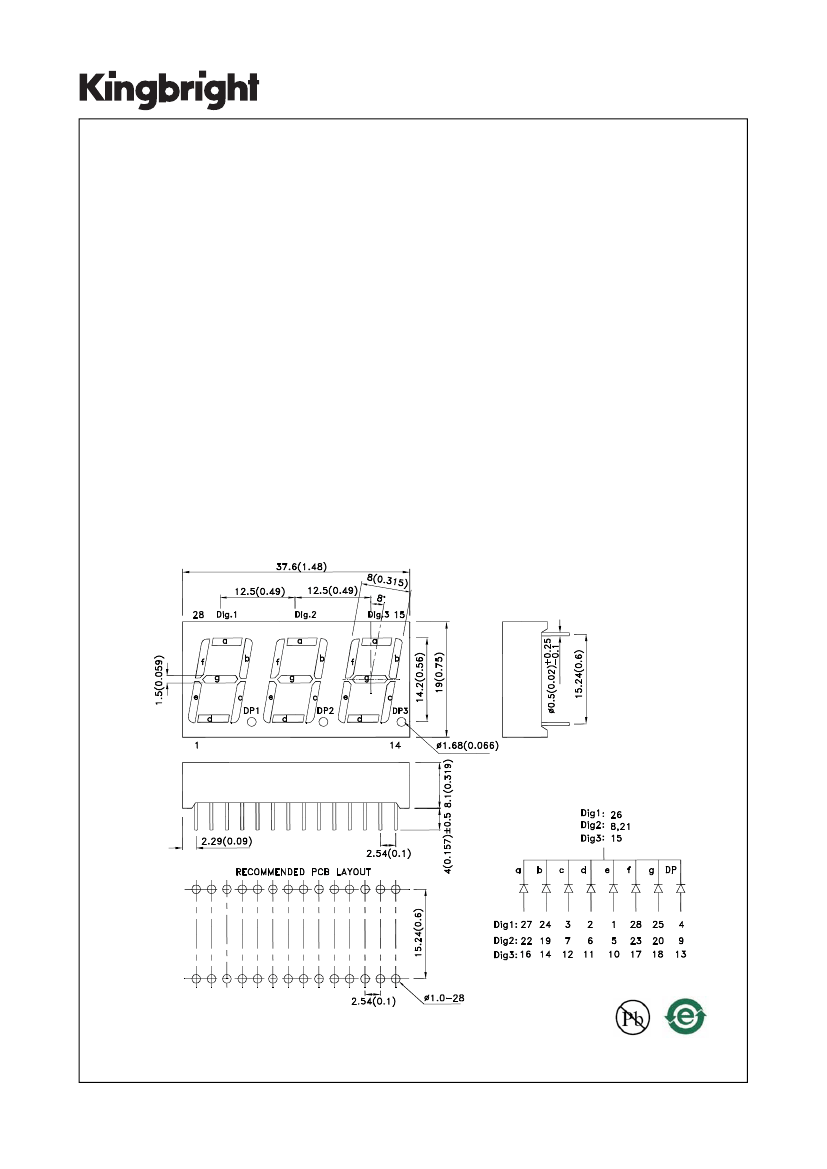

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAK2792

APPROVED: WYNEC

REV NO: V.5A

CHECKED: Joe Lee

DATE: APR/19/2013

DRAWN: Y.Liu

PAGE: 1 OF 6

ERP: 1303000573
